American Audio ACTIVE DBM LED dB Meter

The American Audio Active DBM is a 19-inch rack-mount, LED dB meter designed to view your master decibel level and create an exciting light show in your amp rack. Active DBM features include: removable rack ears, LED dot or bar modes, RCA and Balanced XLR Ins/Outs, and a demo mode that doesn't require an audio signal for the LEDs to illuminate.

• - Designed to set in an amp rack to view your master decibel level
• - Create an exciting light show in your amp rack

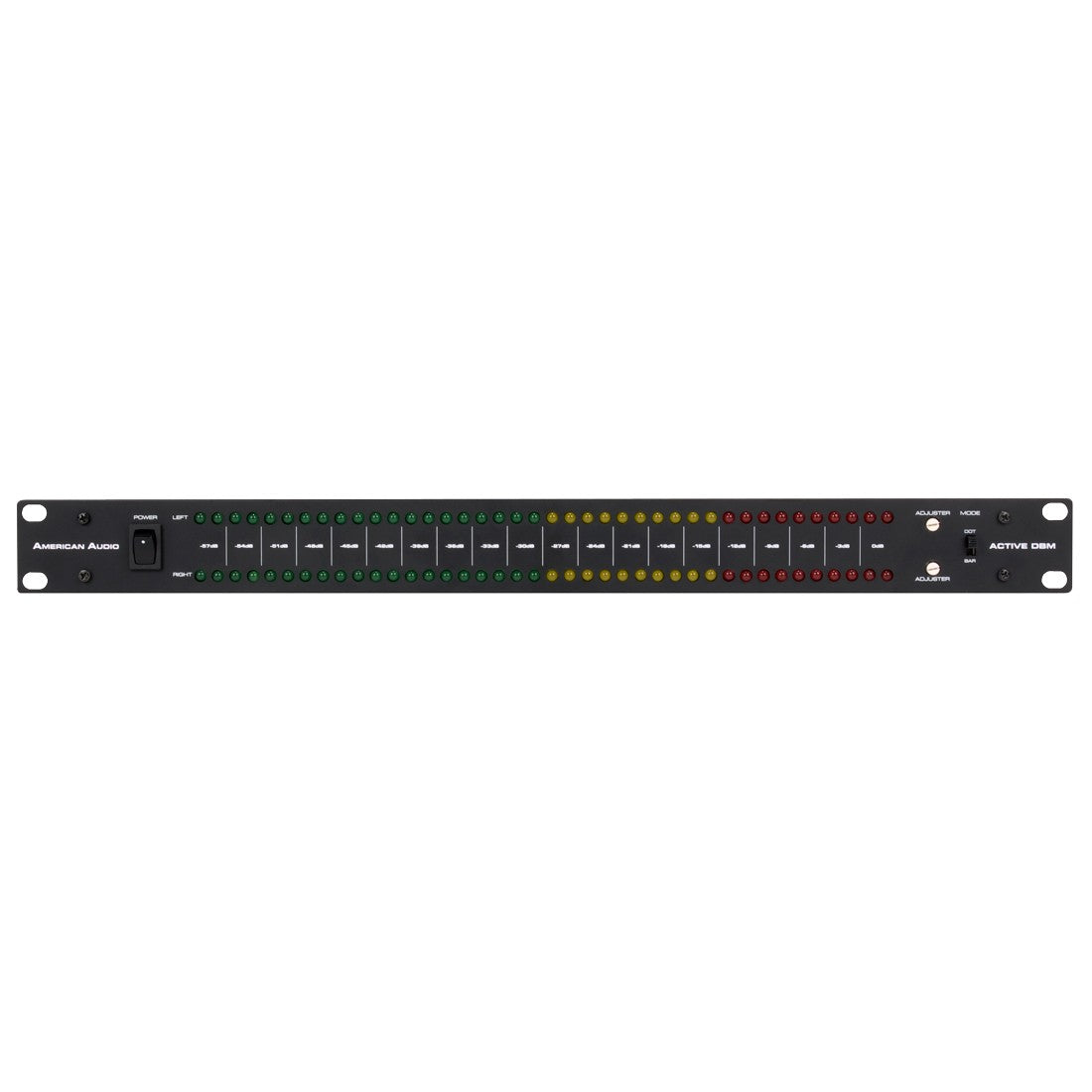

• - LED Display progresses from green through amber to red
• - Sensitivity adjustment on both left and right channels
• - 2 separate LED modes: dot and bar
• - Demo mode so that LED levels will move without an audio signal
• - Includes 12V DC 500mA UL approved power supply

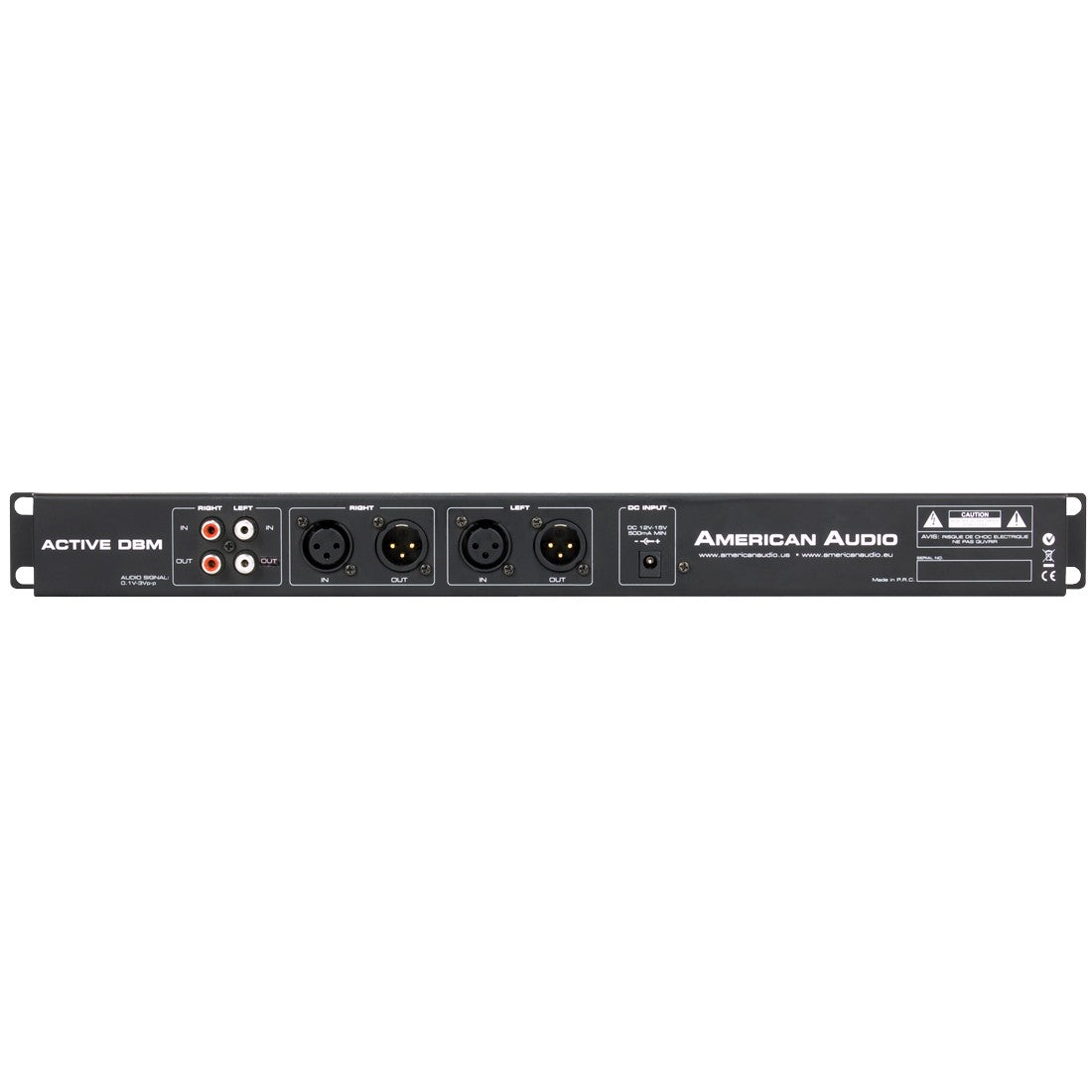

• - Line Inputs: Left/Right RCA & Left/Right Balanced XLR
• - Line Outputs: Left/Right RCA & Left/Right Balanced XLR
• - Power Consumption: 10W
• - Dimensions (LxWxH): 483x44.5x44.5mm
• - Weight:  1 kg.

Specifications subject to change without notice
