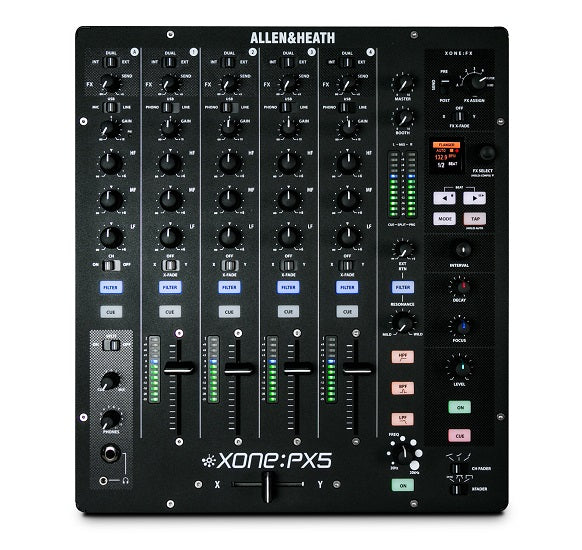

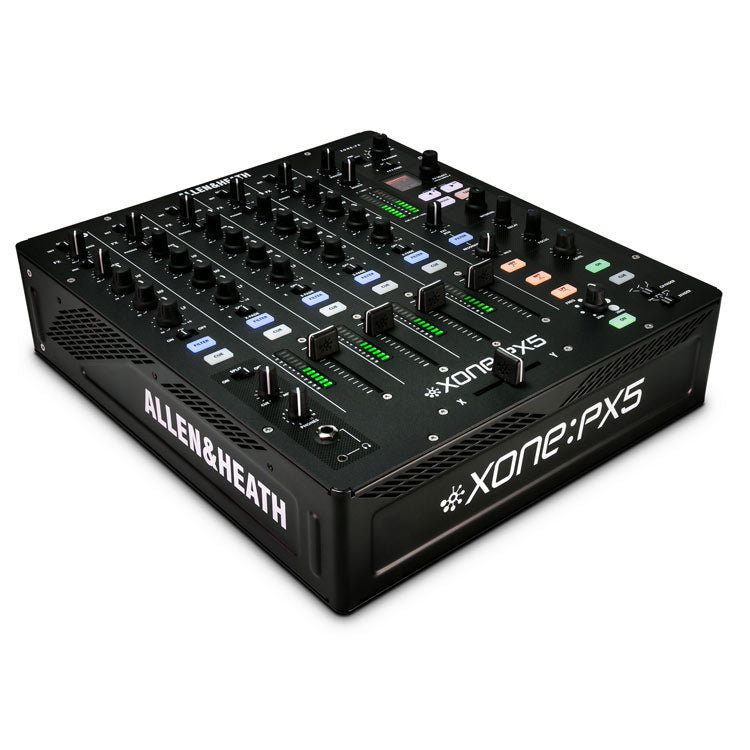

Allen & Heath Xone:PX5 4-Channel DJ Mixer

Introducing the Allen & Heath Xone:PX5 4-Channel DJ Mixer, the latest innovation from Allen & Heath that combines their world-renowned analogue warmth with leading digital functionality.

The Xone:PX5 DJ Mixer brings new life to music performance, with new built-in FX technology that offers completely new depths to controllable effects. With the new Xone:Xcite FX suite, you get access to incredible performance-focused reverbs, modulators, flangers, delays, and distorters. Also, all these FXs are easily assignable.

Allen & Heath's Xone PX5 features send/return functionality, allowing you to connect external FX hardware with ease as well as routing them to the built-in Xone:FX engine. In addition, each channel has its own send control for external FX. The crossfader features 3 changeable curve settings depending on the level of blend you want between each channel. Perfect for scratch DJs and beat-match DJs alike. Also, you can easily upgrade to an innofader pro 2 for even greater performance.

The Xone:PX5 comes with a high-grade soundcard, offering 96kHz/24bit sample rate and bit depth capabilities. You can be assured you are receiving superior sonic quality with a soundcard of this specification. In summary, the Allen & Heath Xone:PX5 4-Channel DJ Mixer is the next generation DJ mixer that is guaranteed to add a new dimension to your live performances.

• 4+1 channel analogue mixer
• Internal Xone:FX engine
• Classic Xone VCF Filter with HPF, BPF, LPF and adjustable frequency and resonance control
• Four channels with 3-source Phono/Line/USB inputs
• 20 channel 24bit 96kHz USB2 internal soundcard
• Send/Return and Master Insert mode connections for external FX (Line or Hi-Z)
• Dedicated Microphone/Aux input/USB Return channel with peak level Indicator
• 3-band, total kill EQ on all channels
• MIDI Sync/Out
• Record out (USB and unbalanced RCA)
• 2 GND earth terminal posts for turntables
• X:LINK for plug n’ play connection to Xone:K series controllers

• Model: Xone:PX5
• Type: Analogue
• Channels: 4 + 1
• EQ: 3-band/TotalKill (CH 1-4 + CH A)
• USB Soundcard 20 Channel (10 in / 10 out)
• USB2 / Class Compliant
• 24bit / 96kHz
• 1 x MIDI IN
• 1 x MIDI Out

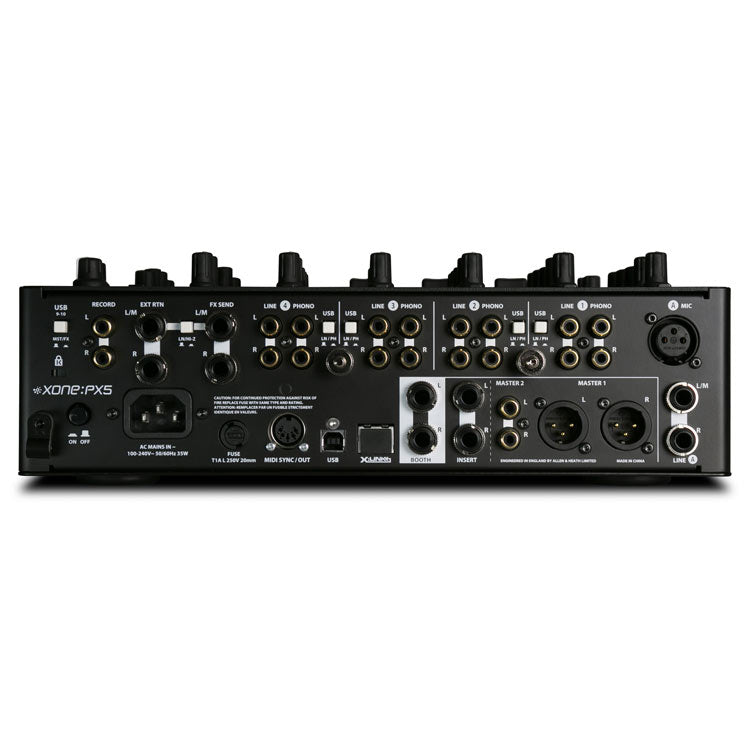

• Line Inputs: 4 x RCA (CH 1-4)
• 1 x 1/4" TRS (CH A) Mono/Stereo
• Phono Inputs: 4 x RCA (CH 1-4)
• LN/PH Switch for DVS
• USB Inputs: 5 x USB (CH 1-4 + CH A)
• Mic Input: 1 x XLR
• Master Output: 1 x XLR (Balanced)
• Master 2 Output: 1 x RCA(Un-balanced)
• Booth Output: 1 x 1/4" TRS
• Record Output: 1 x RCA (Un-balanced)
• Master Insert: 1 x 1/4" TRS
• MIDI Sync/Out: 1 x 5-Pin DIN
• DIN Offset Control
• Send/Return I/O: 1 x 1/4" TRS Send
• 1 x 1/4" TRS Return
• 1 x LN/Hi-Z Switch
• Internal Xone: FX Yes
• Hybrid FX Mode: Yes (Internal < Dual > External)
• FX Send: 1 x Pre/Post Selectable(CH 1-4+ CH A)
• Filter: 1 x VCF Filter
• HPF / BPF / LPF
• Adjustable Frequency & Resonance
• Assignable CH 1-4 + CH A + External Return
• X-Link: 1 x RJ45
• Headphones: 1 x 1/4"
• 1 x 3.5mm
• Split Cue Monitoring
• Channel Faders: 60mm VCA / Replaceable
• Chanel Meters: 12 Segment LED
• Channel Fader Curve: 3 Types
• X-Fader: 45mm VCA / Replaceable / Innofader Compatible
• X-FaderCurve Settings: 3 Types
• MIDI Clock Send + Receive
• Start / Stop / Pause / Tempo Bend (-/+)
• MIDI Assignable: Yes (MIDI CC / MIDI Notes)
• BPM Detection: Auto / Manual / Tap Tempo
• Earth Ground Terminals: x 2
• Headroom: 20dB
• AC Mains 100 to 240V
• AC 50/60Hz
• Consumption 35W max
• Mains Adaptor: 3 pin IEC socket with cable clamp
• Fuse Rating: 250V AC T1AL 20mm
• Height: 4.3"
• Width: 12.6"
• Depth: 14.8"
• Weight: 11.5 lbs.
