Chauvet DJ EVE E-50Z White LED Lighting Effect

The Chauvet DJ EVE E-50Z is an ellipsoidal LED lighting effect that projects a hard-edged warm-white spot and has been designed for both mobile and installation applications. This effect makes an excellent addition to any lighting engineer’s arsenal and is perfect for mobile entertainers, theatres, music venues, live events, festivals, and club and bar installations.

The EVE E-50Z can be used in standalone mode yet also comes with a range of operational modes as well as D-Fi USB compatibility so you can control the light wirelessly in DMX mode or master/slave mode and also includes integrated holders for glass and steel gobos as well as a gel frame. This effect also features a manual zoom that gives you the flexibility to project the light from any distance while the framing shutters give you total control over the projected beam. On the rear of the light, you’ll find a small digital display that lets you navigate the various settings and functions as well as a 3-pin DMX in/output and power in/outputs for power linking multiple units together.

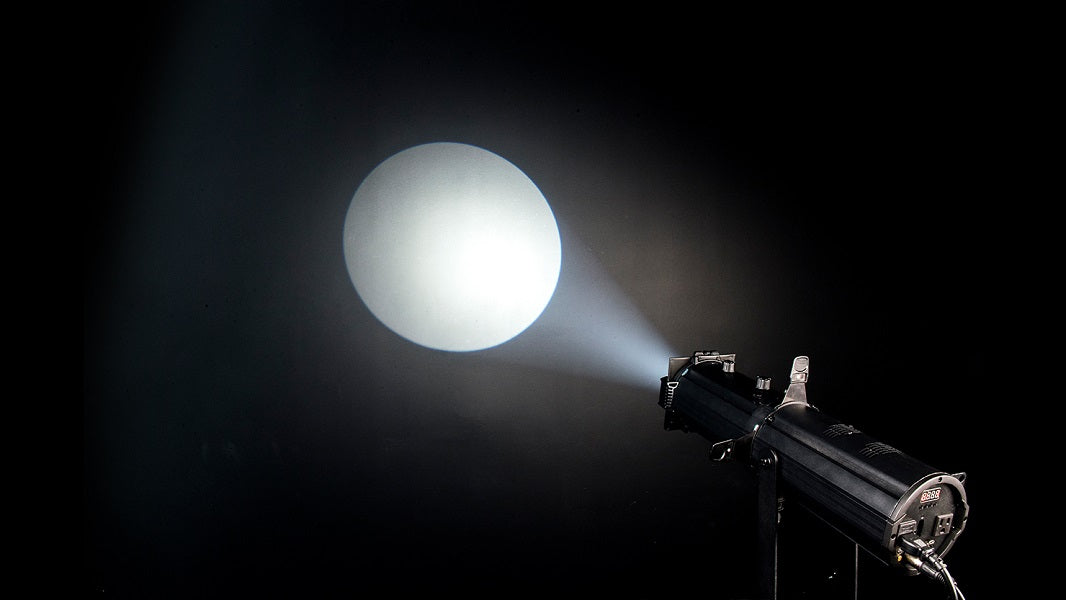

• LED Ellipsoidal shines a hard-edged, warm white spot in any direction
• Easily highlight areas by altering the projected beam with framing shutters
• Flexibility to project from any distance using the manual zoom
• D-Fi USB compatibility for wireless Master/Slave or DMX control
• Flicker-free operation suitable for on-camera use
• Includes holders for glass and steel gobos and a gel frame
• Save time running extension cords by power linking multiple units
• Eliminate the need for DMX control with standalone operation

• DMX Channels: 1 or 3
• DMX Connectors: 3-pin XLR
• Light Source: 1 LED (warm white) 50 W, (1.3 A), 50,000 hours life expectancy
• Strobe Rate: 0 to 29 Hz
• PWM Frequency: 1.2 kHz
• Illuminance: (20°): 7,910 lux @ 2 m
• (39°): 2,710 lux @ 2 m
• Power Linking: 16 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 59 W, 0.5 A @ 120 V, 60 Hz 63 W, 0.3 A @ 230 V, 50 Hz
• Gobo Size: D (53.3 mm outside, 43 mm image, 2mm max thickness)
• Zoom Angle: (manual): 20° to 39
• Weight: 4.2kg
• Size: 480 x 157 x 381mm
• Approvals: CE, MET
• Color Temperature: 3500K
• Gel Frame Size: 140mm
• Optional Controllers: D-Fi USB
• CRI: 81
