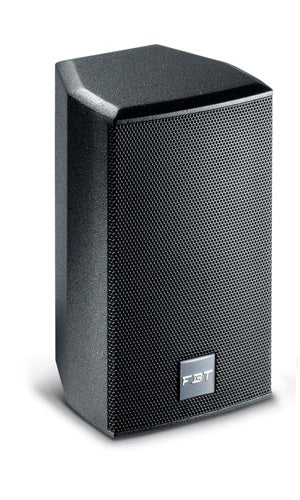

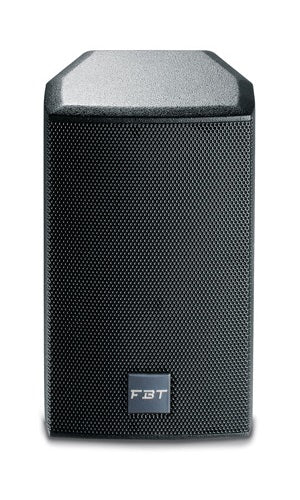

FBT Archon 105 Passive Sound Reinforcement Speaker

FBT Archon 105 Passive Sound Reinforcement Speaker

Regular price £369.00
Regular price Sale price £369.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

The FBT Archon 105 is a next-generation loudspeaker that is designed primarily for indoor spaces such as bars and pubs, retail shops, entertainment venues, fitness centers, theatres, and conference rooms. The Archon 105 is equipped with a custom made 5-inch low-frequency woofer alongside a 1-inch high-frequency tweeter to give you a powerful full-range sound that has an impressive SPL of 115dB.

The Archon series works to meet the high expectations of the installed speaker market by making use of next-generation technologies that offer a rich and detailed sound that is both reliable and easy to set up. The Archon 105 comes with a bi-amplified 2-way design and features rotatable directivity horns that can be optimised to suit a horizontal or vertical sound dispersion. This speaker also features a full range crossover network that comes with four Euroblock speaker terminals as well as a factory preset for optimal line transformer installations which let you get your speaker system sounding exactly as you’d like.

The Archon 105 passive loudspeaker is housed in a 12mm thick Baltic birch plywood enclosure that is equipped with multiple M5 and M10 threaded mounting points so you can mount the speaker into almost any position you want. The front of the speaker features an acoustically transparent steel grille that protects the woofers and is backed by an anti-dust cloth as well as a brand new rotatable FBT logo badge so you can always have the logo facing the correct way whether the speaker is placed horizontally or vertically.

  • 1 x 5” (1.25” VC) custom made LF woofer with rubber surround
  • 1 x 1” HF dome tweeter
  • 2-way, passive sound reinforcement systems
  • 12mm (0.47”) baltic birch plywood cabinets
  • Custom designed LF woofers, made in Italy
  • Custom designed HF dome tweeter, Made in Italy
  • Crossover networks equipped with 4 x Euroblock speaker terminals; factory preset for optimal line transformer installation
  • Multiple M5 threaded rigging points
  • Acoustically transparent steel grille and antidust protection cloth
  • New FBT rotatable logo badge following vertical or horizontal installation
  • Optional mounting hardware
  • Optional line transformer 50W
  • Configuration: 2-Way
  • Frequency response: 70Hz - 22kHz
  • Low Frequency woofer: 5"
  • High Frequency driver: 1"
  • Maximum SPL cont/peak: 112/115dB
  • Dispersion: 110 x 110 (HxV)
  • Crossover Frequency: 3kHz
  • Input connector: 4x Euroblock
  • Net Dimension (WxHxD): 180 x 300 x 180mm
  • Net Weight: 4kg
  • Transport Dimension (WxHxD): 260 x 380 x 260mm
  • Transport Weight: 6kg
