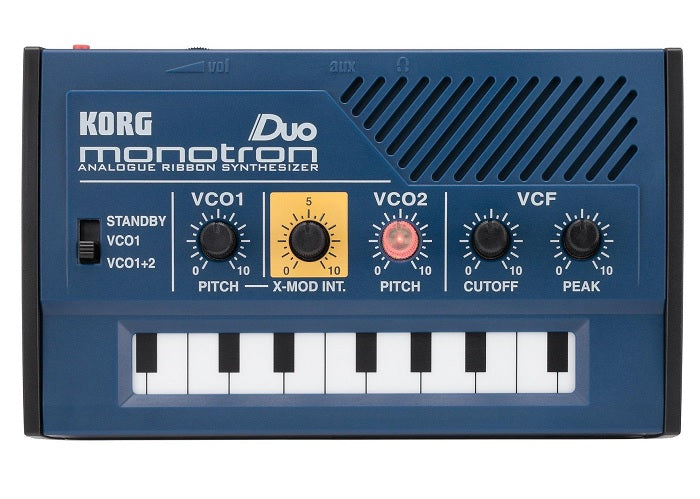

Korg Monotron Duo Analog Ribbon Synthesiser

The Korg Monotron Duo Analog Ribbon Synthesiser is a remarkable battery-powered synthesiser that is small enough to fit in the palm of your hand but capable of producing a multitude of sounds.

Korg's Monotron Duo comes with two completely analog voltage controlled oscillators each with individual tuning functionality. The ribbon controller keyboard features scale select thus making this even more capable. In addition to this, the Monotron Duo features the original voltage controlled filter which can be found on the classic MS-10 and MS-20 models.

The Duo also comes with an AUX input jack which allows you to apply the analog VCF filter to any audio source, very useful for computer musicians.

Two analog oscillators (VCO) with individual tunings
Edgy X-MOD circuit borrowed from Korg’s classic Mono/Poly
Ribbon controller keyboard with Scale Select
Original Analog (VCF) Filter taken from the classic MS-10 & MS-20
Aux input jack lets you apply filter to any audio source
Built-in speaker and battery power for Go Anywhere Analog sound
Headphone jack for private use

Synthesizer structure - 2 VCOs with X-Mod; 1 VCF
Switches - Standby / VCO1 / VCO1+2, Scale Select Button: (Chromatic -> Major -> Minor -> Off)
Knobs - VCO1 Pitch, X-MOD Int., VCO2 Pitch, VCF Cutoff, VCF Peak
Controller - Ribbon Controller
Volume - Headphone Volume
Aux Input - ?" Stereo Jack
Headphone Output - ?" Stereo Jack
Speaker - Miniature Internal; Disabled when headphones are in use
Power Supply - AAA batteries (x2), recommended alkaline batteries
Battery Life - Approximately 8 hours (with alkaline batteries)
Dimensions (W x D x H) - 120 mm x 72 mm x 28 mm / 4.72” x 2.83” x 1.10”
Weight - 95g / 3.35 oz. (without batteries)
Accessories - AAA batteries x2 (for verifying operation)
