Sennheiser XSW 1-835-GB Wireless Microphone Set

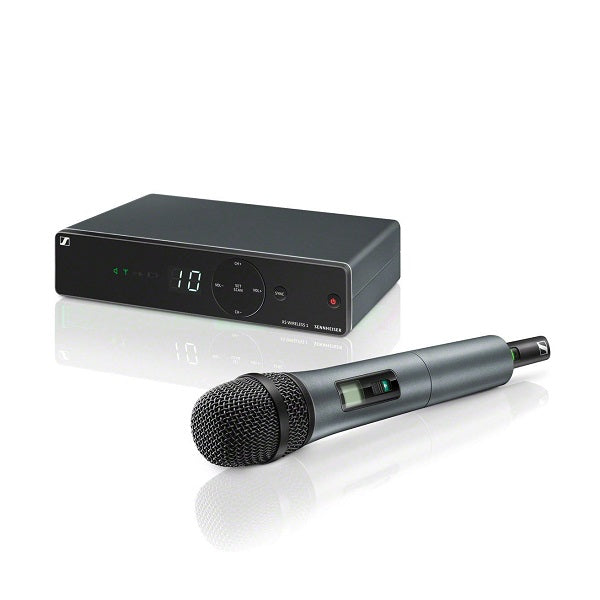

The Sennheiser XSW 1-835-GB is a UHF wireless microphone system comprised of a durable, dynamic microphone and a wireless receiver. The all-in-one system is perfect for singers and presenters as well as live events thanks to the clear, concise sound that interprets speech perfectly.

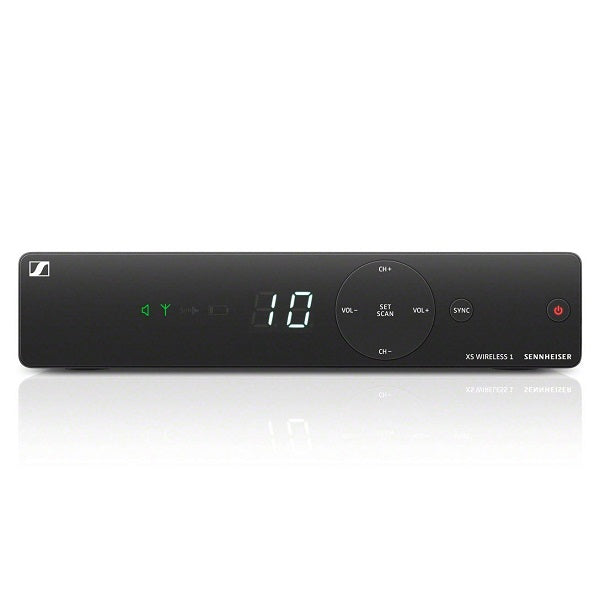

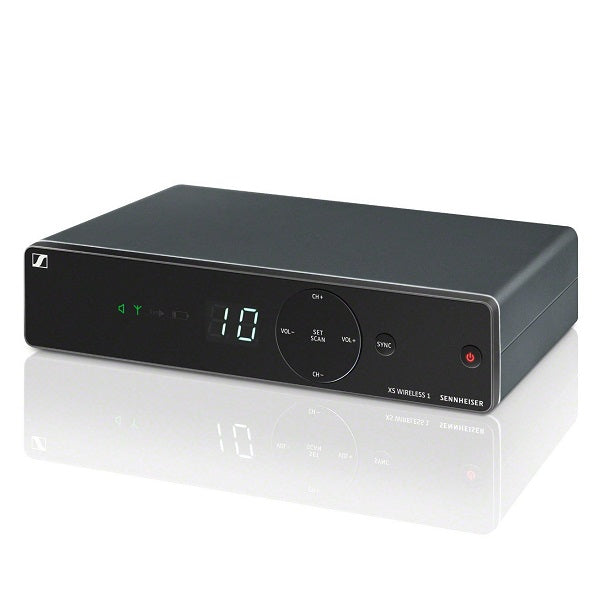

The intuitive receiver comes with an automatic frequency management system that automatically synchronizes to a microphone via the remote channel so setting up the system is super easy. You can select the UHF frequencies you want with a massive bandwidth while the ten compatible channels allow you to hook up a number of different microphones. Both the microphone and receiver make use of integrated antennas with antenna-switching diversity reception so you can always rely on the system to provide you with excellent sound.

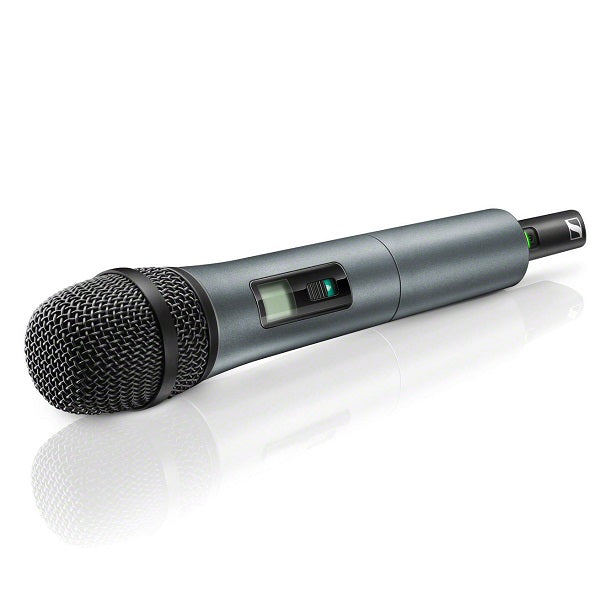

The superior dynamic microphone features a cardioid pick up pattern and comes with Sennheiser’s renowned evolution microphone capsules as well as a ultra-durable metal construction that has been designed to withstand the rigors of everyday use and a frequency response of 80 Hz to 16 kHz. The set also includes a microphone clamp so you can get it hooked up to a proper system without a problem.

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

What's in the box

• 1 receiver EM-XSW 1
• 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Dimensions: approx. 200 x 42 x 127 mm
• Total harmonic distortion: ≤ 0.9%
• Pick-up pattern: Cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: Up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: Wideband FM

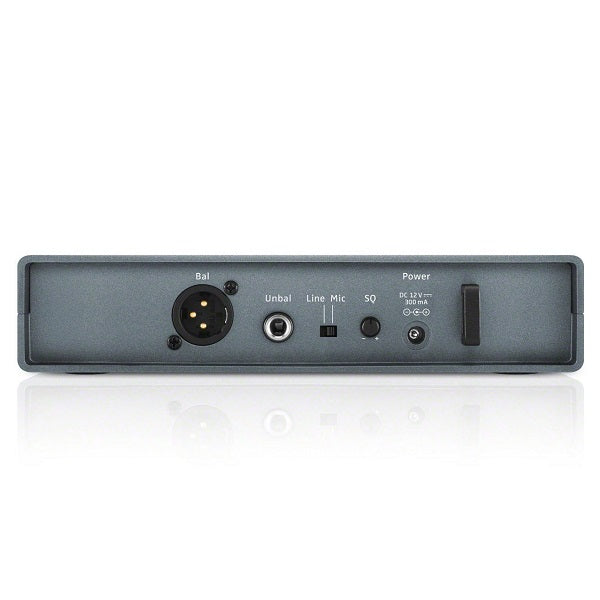

• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Dynamic range: Dynamic
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range:
• A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: Adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line / Mic level: 20 dB, switchable
• Temperature Range operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
• Receiver specs:
• Weight: approx. 340g
• Power supply Receiver: 12 V DC nom. / 300 mA
• AF frequency response Receiver: 50 to 16,000 Hz (–3 dB)
• Microphone Specs:
• Weight: approx. 245g
• Power supply Microphone: 2 AA size batteries, 1.5 V
• AF frequency response: SKM 825: 80-14,000 Hz. SKM 835: 80-16,000 Hz
