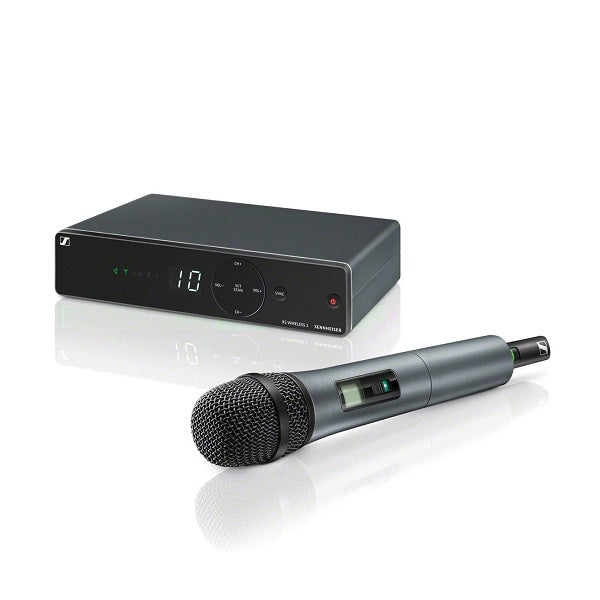

Sennheiser XSW1-835 Wireless Microphone Set

The Sennheiser XSW1-835 is a UHF wireless microphone system that has been designed for general purpose speech and singing. The plug and play compatibility allows the system to be up and running within minutes and provides you with a professional live sound system with a reliable transmission.

The XS Wireless 1 – 835 uses automatic frequency management to allow the operation of up to 10 wireless microphone connections at any one time so whether you’re in a band, theatre or seminar the XS Wireless system has you covered without you having to worry about the audio setup.

The XS Wireless 1 has the acclaimed Sennheiser quality that they are world renowned for and the 835 microphone is super robust thanks to the high-quality components that yield a powerful, natural sound. The feedback protection means you don’t need to fret about any grim noises coming out through the system.

The XS Wireless 1–835 has been made to last, the microphone and transmitter are both sweat-resistant and have been built to withstand the stress of everyday on-stage use.

• Excellent live sound featuring Sennheiser’s renowned evolution microphone capsules (e825 or e835)
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

In The Box

• 1 receiver EM-XSW 1
• 1 handheld transmitter SKM 825-XSW or SKM 835-XSW
• 1 microphone clamp MZQ 1
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Dimensions: approx. 200 x 42 x 127 mm
• THD (total harmonic distortion): ≤ 0.9%
• Pick-up pattern: cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Dynamic range: dynamic
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range
• A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line/Mic level: 20 dB, switchable
• Temperature Range Operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas

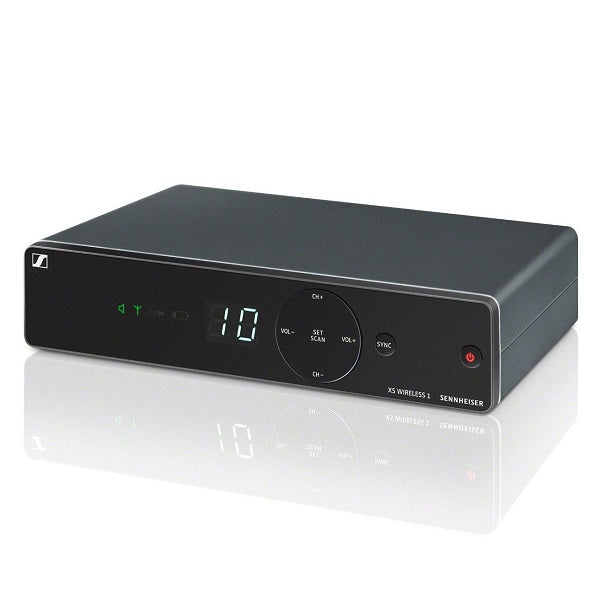

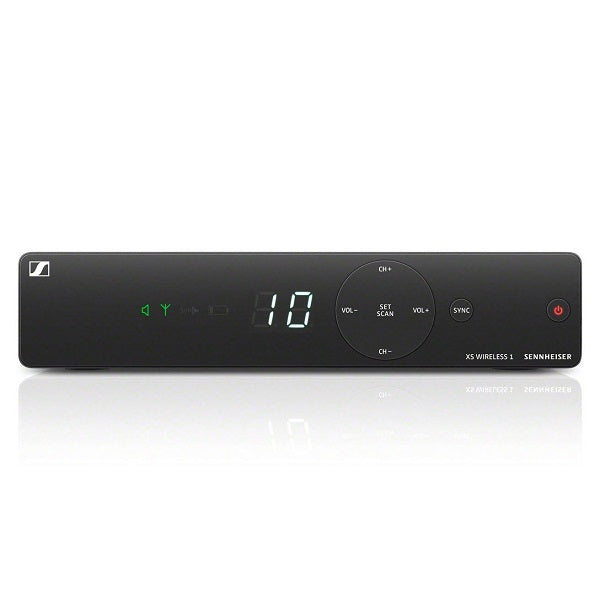

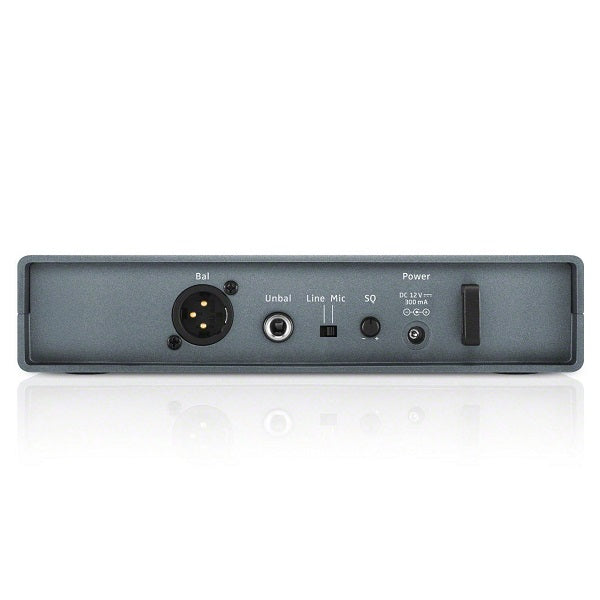

• Receivers
• Weight: approx. 340g
• Power Supply Receiver: 12 V DC nom. / 300 mA
• AF Frequency Response Receiver: 50 to 16,000 Hz (–3 dB)

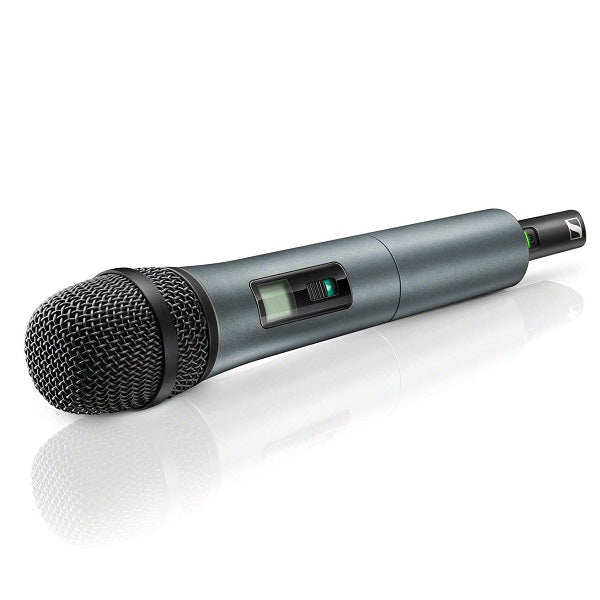

• Microphone
• Weight: approx. 245g
• Power Supply Microphone: 2 AA size batteries, 1.5 V
• AF Frequency Response SKM 835: 80-16,000 Hz
