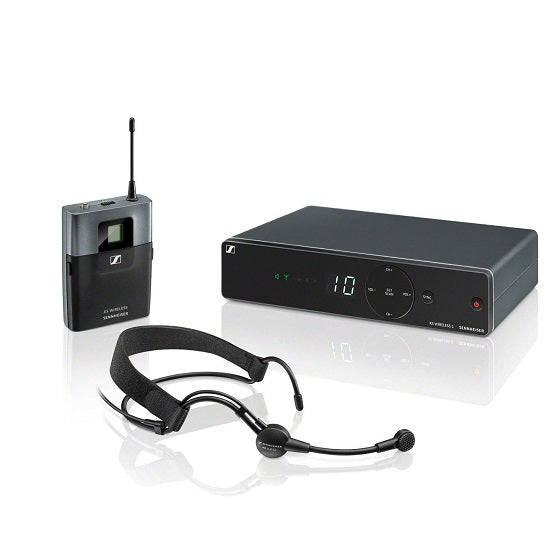

Sennheiser XSW1-ME3 Wireless Microphone System

The Sennheiser XSW1-ME3 is a UHF wireless microphone system that uses a headset microphone and lightweight body-pack transmitter, so it is perfect for live sound that involves performers having to dance and sing at the same time. The professional live sound system can be set up easily and quickly thanks to the plug and play functionality.

The XS Wireless - ME3 uses automatic frequency management that allows up to 10 wireless microphones to be connected simultaneously meaning the system is perfect for stage performances that involve many performers.

The XSW1 – ME3 gives you the acclaimed quality that Sennheiser are well renowned for, the headset has been made from high-grade components that give you a powerful, full sound that is sure to leave your audience stunned. Feedback protection is also in place to ensure no nasty feedback noise comes out of the speakers.

The XS Wireless-ME3 has been designed to last; the headset and transmitter are both sweat resistant and can withstand the stresses of everyday on-stage use.

• Lightweight headmic and compact bodypack transmitter
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

In The Box

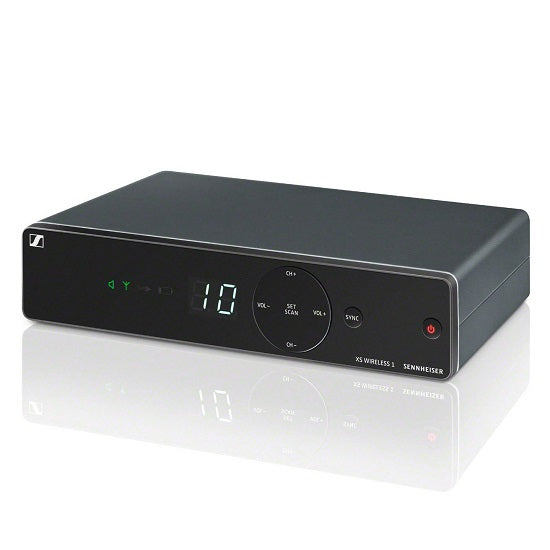

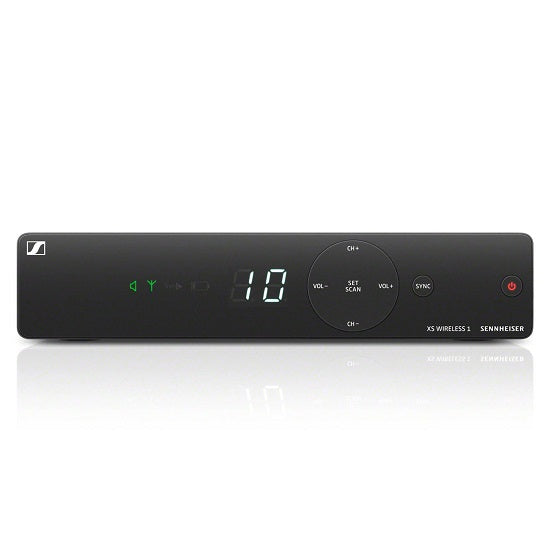

• 1 receiver EM-XSW 1

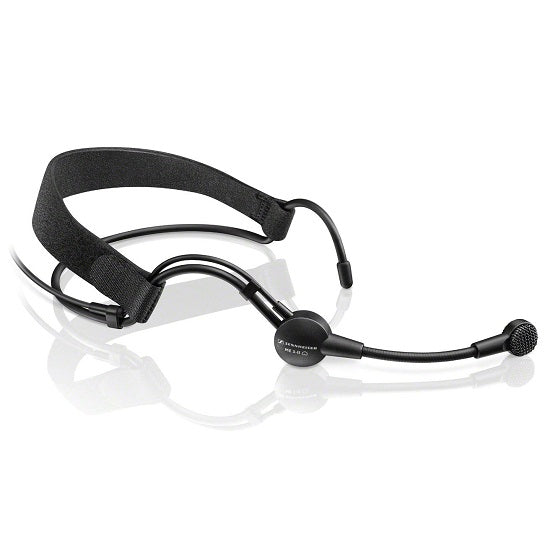

• 1 headset microphone ME 3-II

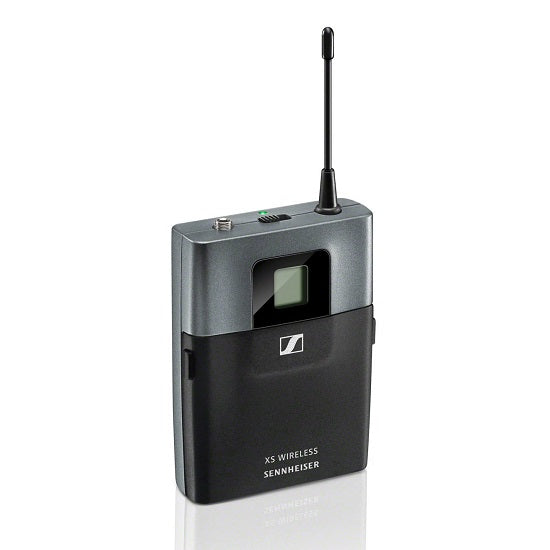

• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Microphone: Condenser
• THD total harmonic distortion: ≤ 0.9%
• Pick-up pattern: Cardioid
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Modulation: Wideband FM

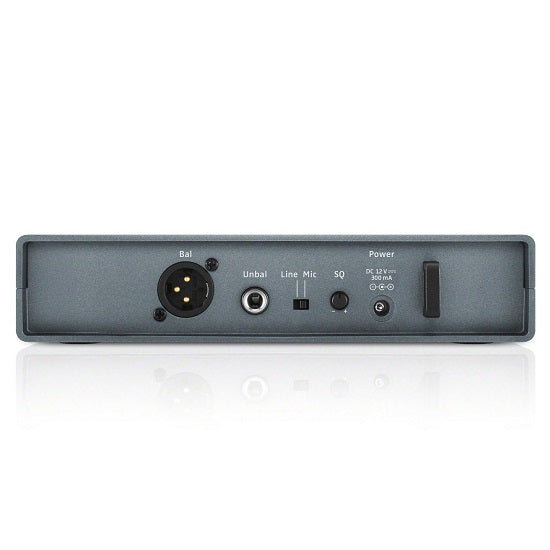

• Output voltage 1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: Rugged ABS housing
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range
• A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz
• C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• SPL for peak deviation: 150 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line/Mic level: 20 dB, switchable
• Temperature Range Operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: Double superheterodyne
• Diversity principle: Antenna switching diversity via internal antennas
• Receivers
• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: 12 V DC nom. / 300 mA
• AF frequency response: 50 to 16,000 Hz (–3 dB)
• Transmitter
• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Operating time: Approx. 10 hrs
• Power supply: 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
