Alto TX312 700-Watt 12-Inch Powered Loudspeaker

The Alto TX312 speaker is an impressive 700-watt powered PA Speaker for various live sound scenarios. Alto Professional presents the TX3 Series, expertly crafted to handle the rigors of frequent performances without faltering. This latest addition intelligently borrows technology from the well-regarded TS3 series, delivering the audio performance and clarity essential for an outstanding sound experience.

This bi-amplified 2-way speaker features a robust long-excursion woofer paired with a 1-inch titanium compression driver mounted in a custom-designed horn. The innovative horn structure significantly improves high-frequency output, while providing a precise 90-degree horizontal by 60-degree vertical dispersion pattern, ensuring excellent coverage for all audience members.

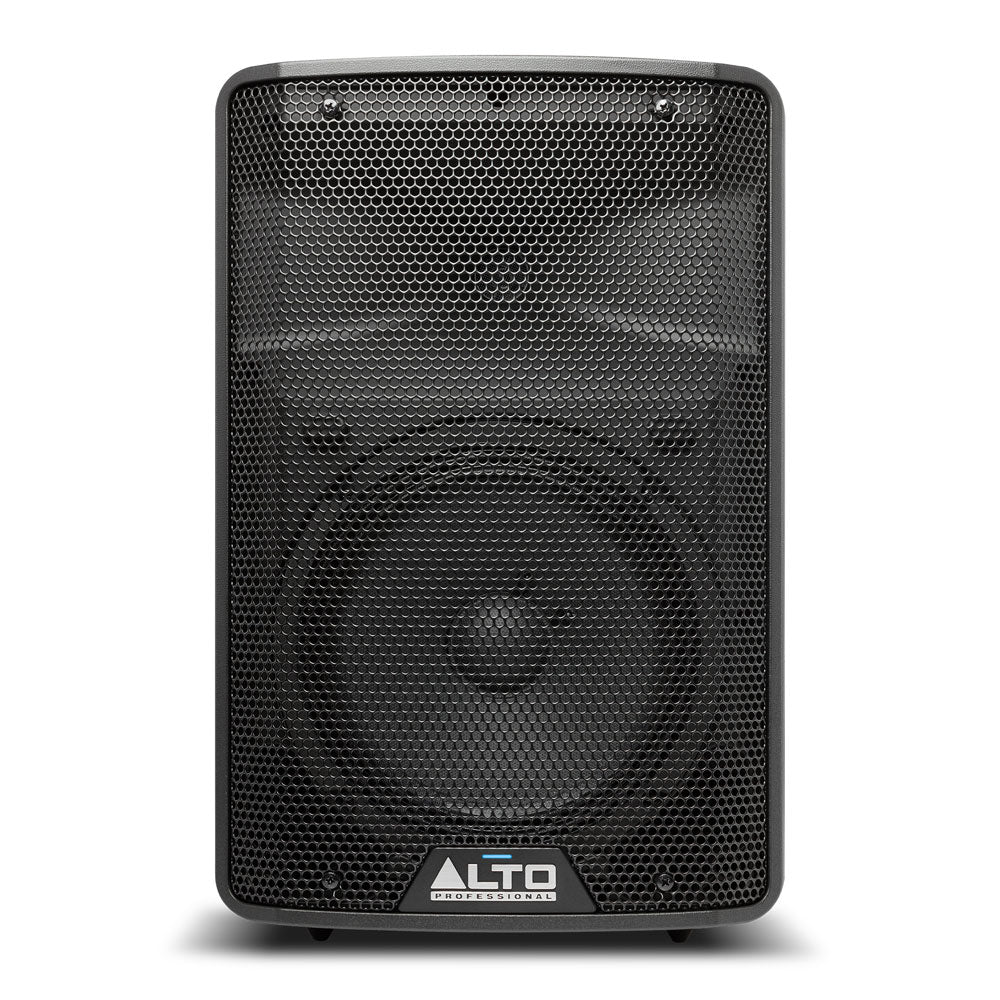

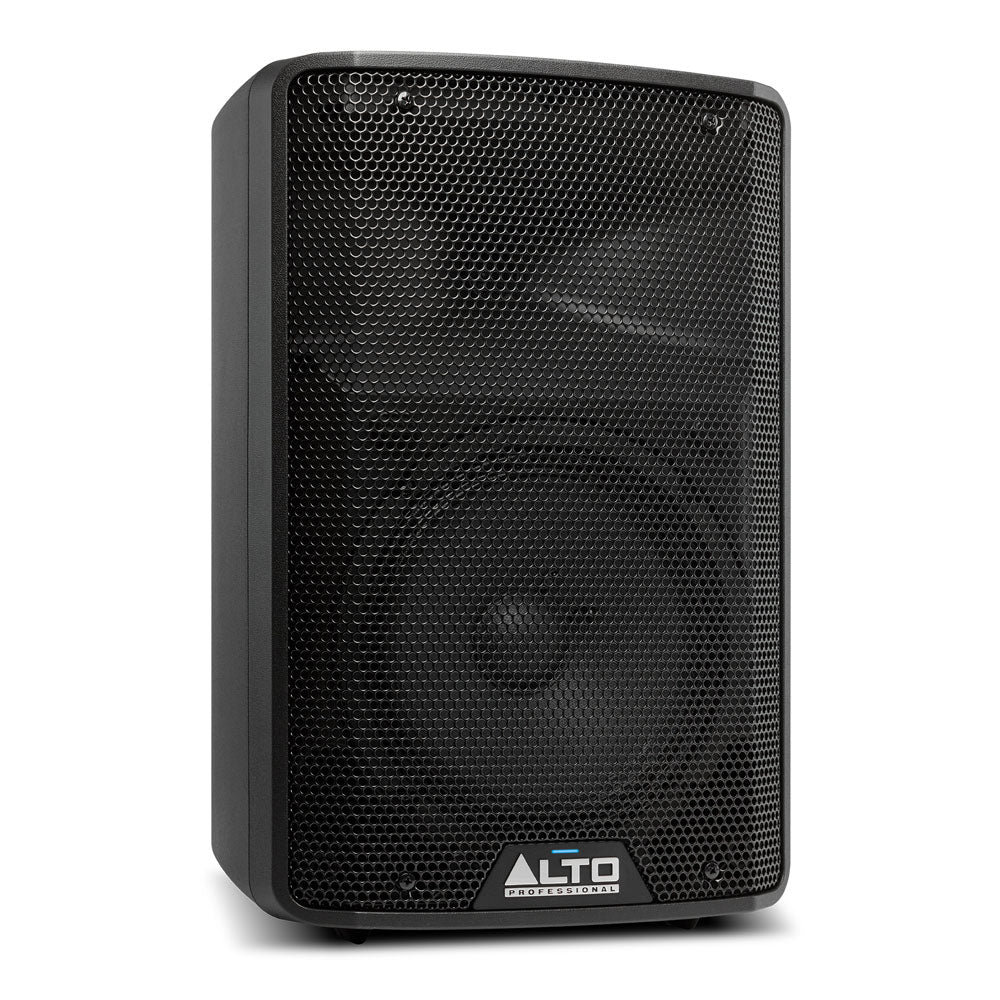

Built within a sturdy yet lightweight cabinet, the TX312 boasts a unique trapezoidal shape, making it adaptable for both upright and wedge monitor placements. The full-sized steel grille adds an additional layer of protection for the driver, reinforcing the speaker's resilience for continuous heavy use. With a wide range of input/output options and versatile mounting capabilities, all at a competitive price point, the TX312 stands out as an ideal choice for numerous live music environments.

• 700 Watts peak (350 Watts continuous) Class D power
• The 90 H x 60 V horn delivers greater coverage
• The full grille delivers style and provides protection for your
  investment.
• 12-inch (381 mm) LF driver, 2-inch (51 mm) voice coil
• 1-inch (25.4 mm) titanium HF compression driver
• Lightweight, portable design for main or wedge monitor
  operation
• Standard speaker pole socket
• Bi-amplified design with precision active crossover and EQ
• Balanced XLR Mic/Line input, Link Output and Volume
  control
• Integrated analogue limiter and overload protection circuitry
• Contour switch with low- and high-frequency +3dB boost
• Ground-lift switch removes unwanted hum or buzz

System Type:

2-way active ported loudspeaker

Drivers:

• Low-Frequency: 12.0” (381 mm) driver, 2.0” (51 mm) voice coil
• High-Frequency: 1.0” (25 mm) driver, 2.0” (25 mm) voice coil1.0” (25 mm) titanium-diaphragm compression driver, 1.0” (25 mm) voice coil

Amplifier: 700 watts (peak), 350 (continuous), Class D power

Horn Coverage: 90º horizontal x 60º vertical (nominal)

Frequency Response: 75 Hz – 20 kHz (-3 dB)

Crossover Frequency: 2.5 kHz

Max SPL: 118 dB @ 1 m

Equalization: Contour switch with low- and high-frequency +3 dB boost

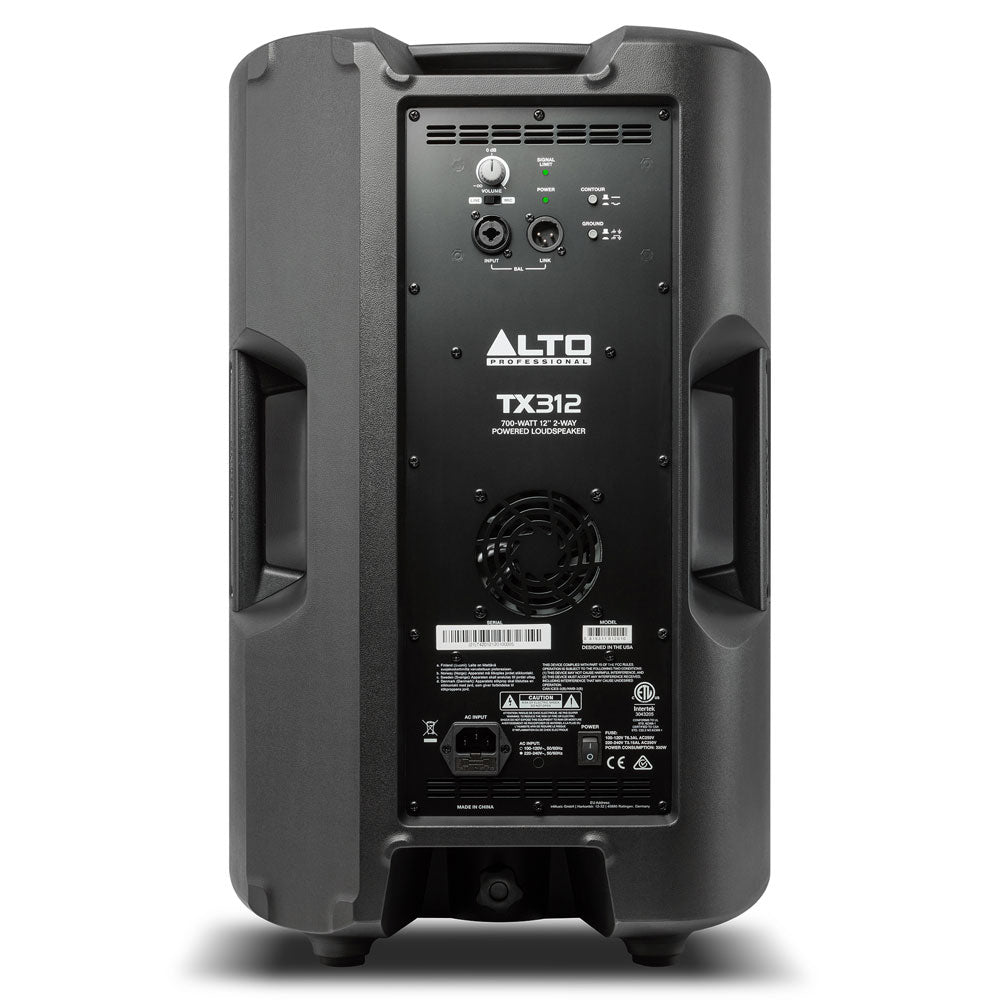

Connectors:

• (1) XLR/TRS 1/4” (6.35 mm) balanced input (Line/Mic)
• (1) XLR output (Link)
• (1) IEC power cable input

Controls: Power switch, volume control knob, contour switch, ground-lift switch

Indicators: (2) power LEDs (1 front panel, 1 rear panel), clip limiter LED

Power:

• Connection: IEC
• Voltage: 100–120 V~, or 220–240 V~; 50/60 Hz
• Fuse: 100–120V T6.3AL AC250V or 220–240V T3.15AL AC250V
• Consumption: 350 W

Protection: Thermal, overload analogue limiter/compressor

Enclosure: Injection-moulded polypropylene, multi-angle for main or monitor applications, metal grille, rubber feet, 2 handles (both sides)

Mounting/Installation: Standard 36 mm pole socket, wedge monitor

Dimensions: (height x width x depth) 23.7” x 15.0” x 13.5” 602 x 381 x 343 mm

Weight: 29.3.7 lb 13.3 kg
