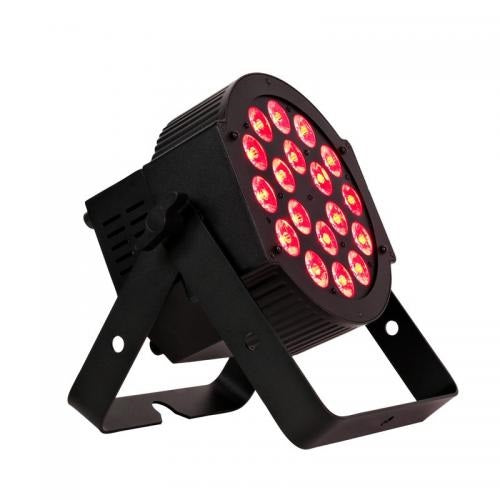

American DJ 18P Hex Lighting Effect

The American DJ 18P Hex is a 216W LED lighting fixture using 18 x 12W, 6-in-1 Hex LEDs all with a 30-degree beam angle alongside cleverly designed DMX connectors. The 18P Hex produces vivid and smooth colour mixing with 63 built-in colour macros ranging from blue, red, amber, green, white and even UV LEDs.

The ADJ 18P Hex is ideal for stage use or uplighting a large venue.

• 18 X 12-Watt Hex LEDs,
• 30 Degree Beam angle,
• 63 Built in Colour Macros,
• PowerCON in and out connections,
• Heavy duty metal
• Construction with Gel Frame included.

• Light Source: 18 x 12-Watt Hex (RGBAW + UV) LEDs
• LED Life Expectancy: 50,000 Hrs
• Beam Angle: 30-degree Technical Features:
• 63 Built In Color Macros
• 5 Operational Modes: Manual Color; Color Fade; Auto Program; Sound Active, and DMX modes.
• 4-button Digital Display for easy navigation
• Electronic Dimming 0 – 100%
• Flicker Free
• Gel Frame Included
• Includes a scissor yoke to be hung, or set on the ground Connections:
• Power Input: powerCON IN
• Power Pass through: powerCON out (Daisy chain up to 10 units @120V, 12 units @ 230V)
• Control: 3-pin DMX Control:
• 4 DMX Channel Modes: 6, 7, 8 and 12
• Compatible with Dotz Par RF (Sold Separately)
• On Board control Electrical:
• Input Voltage: 100-240V 50Hz/60Hz (Auto Sensing) Physical:
• Dimensions (LxWxH): 12” x 6.75” x 13.5” / 300 x 170 x 340mm
• Weight: 12 lbs / 5.4 kg.
• Metal Black Housing Certifications:
• ETL
• IP 30: Dry area, No liquids Whats Included:
• powerCON Cable (1M)
• Gel Frame
• Owner’s Manual Optional Accessories:
• Dotz Par RF (Remote Control)
