American DJ COB Cannon Wash DW ST Lighting Effect

American DJ COB Cannon Wash DW ST Lighting Effect

Regular price £356.00
Regular price Sale price £356.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

American DJ

View full details

The American DJ COB Cannon Wash DW ST is a more compact version of the hugely popular COB Cannon Wash and is fitted with an advanced 150w white LED that offers both cool and warm white hues. This lighting effect is excellent for both mobile and fixed applications thanks to the addition of a scissor yoke that can act as legs for the fixture or allows the unit to be hung from a truss which makes it perfect for club and bar installations, theatres, schools and colleges, places of worship, and festivals.

ADJ COB Cannon Wash DW ST

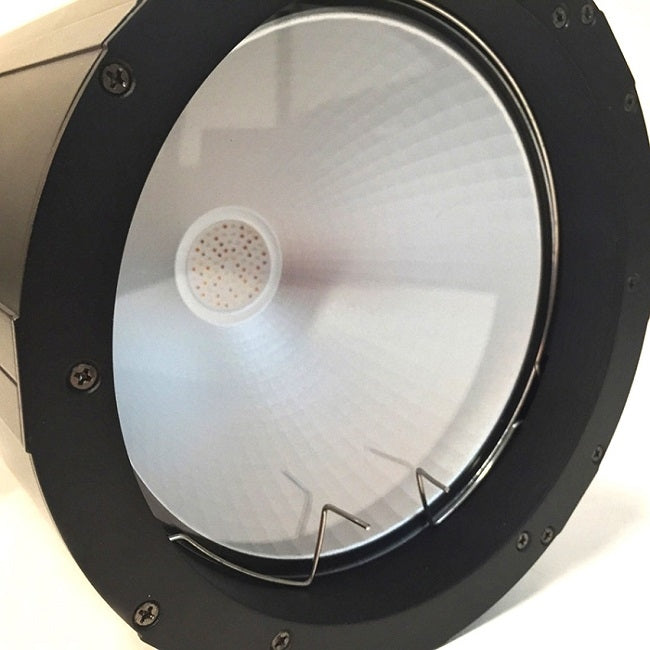

This COB Cannon features chip on board technology which lets a powerful LED engine to be utilised in a small space and results in a high output with vivid light. The LED produces warm white and cool white colours and comes supplied with replaceable lenses that alter the beam angle with 40, 50, and 80-degree beam angle lenses that vary the angle of the light. This is perfect for washing a ceiling, wall, or feature in bright light while an electronic dimmer lets you set the intensity of the light anywhere between 0 and 100% with five selectable dimming curves while a strobe/pulsing effect allows you to create cool effects.

This lighting effect comes equipped with both 3 and 5-pin DMX inputs and six DMX channels which allow you to program your own light shows while a digital display with four menu buttons let you navigate the DMX mode. A PowerCON power in/output gives you the ability to daisy-chain multiple units together for synchronised light shows and power-sharing, so you do not need to use more than one power output. The COB Cannon Wash DW ST can be run in stand-alone mode, DMX control mode, or sound activated mode which makes the light dance to the beat of your music thanks to an integrated microphone.

  • Flicker Free operation (No flickering on camera)
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle


  • Light Source: 1x 150-Watt COB (Chip on Board) Warm White/Cool White LED (2-IN-1) - rated at approximately 50,000 hrs.
  • CRI: Over 90
  • Light Output: 891 LUX @3M (CW + WW @ 40-degree beam), 711 LUX @3M (CW + WW @ 50-degree beam), 410 LUX @3M (CW + WW @ 80-degree beam)
  • 80-degree beam angle
  • Includes lens kit to change to 40-degrees or 50-degrees beam angle


  • 3-pin & 5-pin connectors for DMX linking
  • powerCon AC IN/OUT to daisy chain power (up to 5 fixtures)


  • Variable white control: 3200K - 6400K
  • 6 DMX Channel modes (1, 2, 3, 4, 5, 6 Ch.)
  • 8 warm white / cool white built-in color macros
  • 4-button digital DMX display on rear panel
  • Compatible with wireless remote control (sold separately)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Refresh Rate:1KHz
  • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • Power Draw: 132W max
  • Daisy chain up to 5 fixtures maximum
  • Dimensions with bracket (LxWxH mm): 330 x 256 x 190
  • Dimensions without bracket (LxWxH mm): 218.5 x 190 x 190
  • Weight: 4.1 kg.
