American DJ COB Cannon Wash ST Lighting Effect

American DJ COB Cannon Wash ST Lighting Effect

Regular price £321.00
Regular price Sale price £321.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

American DJ

View full details

The American DJ COB Cannon Wash ST is a more compact version of the hugely popular COB Cannon Wash lighting effect and comes equipped with a vibrant 150w LED that provides you with RGBA colours as well as chip on board technology that allows the powerful LED engine to fit perfectly in the compact body. This lighting effect is perfect for clubs and bars, mobile DJs, theatres, festivals, schools and colleges, and churches.



ADJ COB Cannon Wash ST Lighting Effect

The COB Cannon Wash ST comes fitted with an RGBA LED that perfectly washes a wall, ceiling, or feature in bright, vivid light and is supplied with replaceable lenses with 40, 50, or 80-degree beam angles. This effect has a high output and features smooth colour mixing without any RGBA shadows and is equipped with some great FX such as a LED pulse and strobe effect as well as an electronic dimmer that ranges from 0 – 100% while five selectable dimming curves allows for smooth for blending. There are 64 built-in colour macros so you have a range of colours to light up your venue and the flicker-free operation means when you film there will be zero flickers.

This lighting effect has a range of operational modes, it is fitted with 3 & 5-pin DMX ports which allow you to control the light via DMX with 3, 4, 5, 6, 7, 9, and 10 available DMX channels, it can also be controlled via wireless remote control however this is not supplied with the light. When using multiple COB Cannon’s you can daisy chain them together for power linking and synchronised light shows, you can use the light as a standard wash lighting effect, or alternatively, it can be pixel mapped for a stunning visual effect.

  • Flicker Free operation (No flickering on camera)
  • Produces powerful, smooth RGBA color mixing with rich palettes of color
  • Use as Wash/par or Pixel Mapped for a stunning visual effect
  • Scissor yoke allows fixture to be mounted on truss or set on the ground
  • Optional Barn Doors (BAR001) sold separately
  • Run all night – No duty cycle

Optical

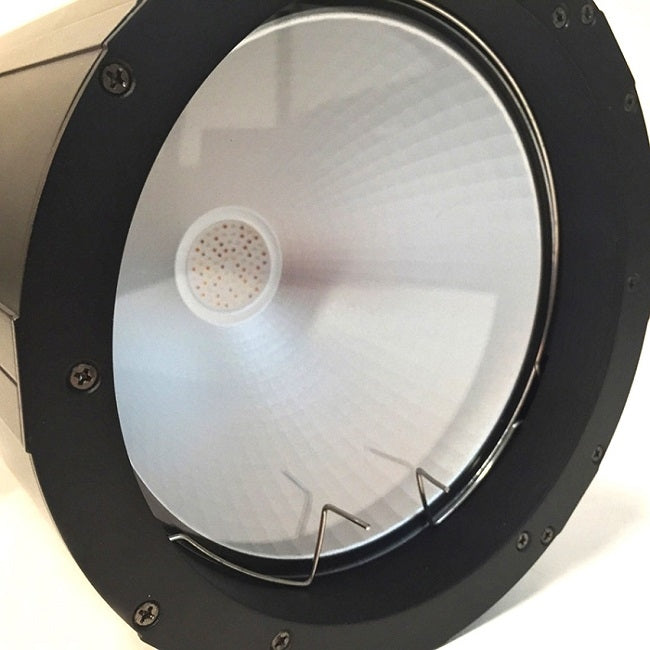

  • Light Source: 1x 150-Watt COB (Chip on Board) Quad LED (RGBA: 4-IN-1, rated at approximately 50,000 hrs)
  • Light Output: 1970 LUX @2M; 474 LUX @4M (40-degree beam), 1472 LUX @2M; 373 LUX @ 4M (50-degree beam), 996 LUX @2M; 238 LUX @4M (80-degree beam)
  • 80-degree beam angle
  • Includes lens kit to change to 40-degrees or 50-degrees beam angle

Connections

  • 3-pin & 5-pin connectors for DMX linking
  • powerCon AC IN/OUT to daisy chain power (up to 5 fixtures)

Control

  • 7 DMX Channel modes (3,4,5,6,7,9,10 Ch.)
  • 64 built-in color macros
  • 4-button digital DMX display on rear panel
  • Compatible with wireless remote control (sold separately)
  • LED pulse and strobe effect
  • Electronic Dimming: 0 - 100%
  • 5 selectable Dim Curves (Standard, Stage, TV, Architectural & Theatre)
  • Refresh Rate: 1KHz
  • Auto sensing power supply: AC 100V/60Hz - 240V/50Hz
  • Power Draw: 132W max
  • Daisy chain up to 5 fixtures maximum
  • Dimensions with bracket (LxWxH mm): 330 x 256 x 190
  • Dimensions without bracket (LxWxH mm): 218.5 x 190 x 190
  • Weight: 4.1 kg.
