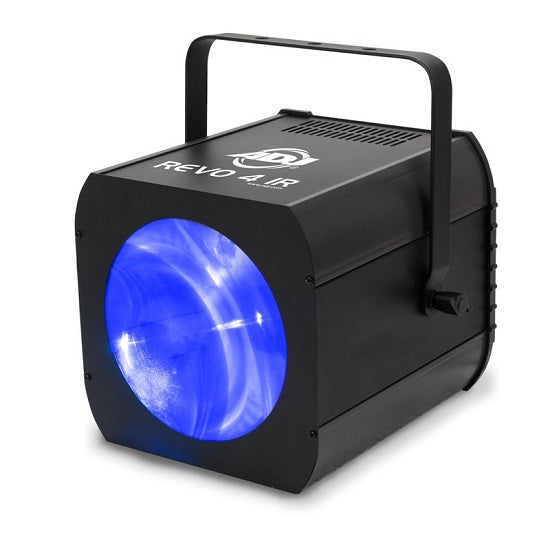

American DJ Revo 4 IR Moon Flower Lighting Effect

The American DJ Revo 4 IR is one of ADJ’s most popular Moon Flower lighting effects and now includes wireless control via the UC-IR and Airstream IR remote controllers that are sold separately.

The Revo 4 IR features a matrix grid of 256 vibrantly coloured RGBW LEDs that can create dozens of different patterns that are sure to kick off any party and pairs brilliantly with a fog machine to make an authentic disco vibe.

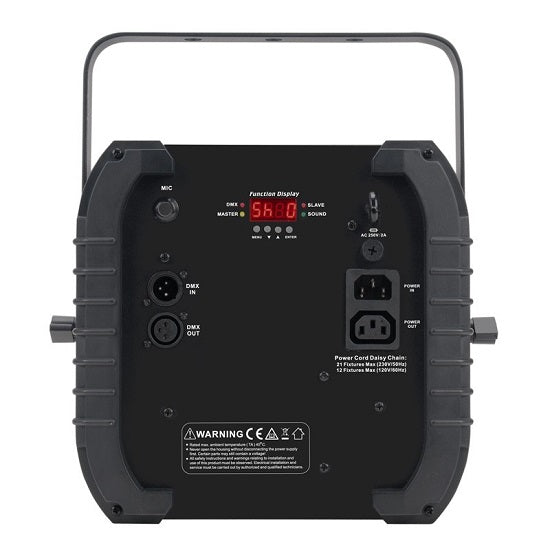

The rear of the Revo 4 IR features a LED menu display with four navigation buttons allowing you to navigate the various settings. It also comes with a 3-pin DMX in/out so you can link units together and IEC power in/out so you can daisy-chain the power from one fixture to another for your convenience.

• LED DMX-512 Moonflower from the popular REVO Series with 256 razor sharp Red, Green, Blue & White Beams
• Produces unique and exciting LED patterns that may be projected on a wall, ceiling or dance floor – great with or without fog
• 256 total 5mm LEDs : 64 Red, 64 Green, 64 blue and 64 White
• 2 DMX Channel Modes (4 Channel mode or 256 Channel mode)
• 4-Button LED DMX Display
• Linkable via XLR connections
• Wide beam spread covers a large area
• 3 operation modes: DMX, Sound Active & Master/Slave
• Sound active from built-in programs
• Strobe function
• Beam angle: 35 degrees
• Runs extremely cool! - NO Duty Cycles! – Run all night!
• Includes hanging bracket & safety loop

• Power Consumption: 34W maximum
• Extreme long lifetime of the LEDs (50,000 hr. rating)
• Compatible with ADJ UC IR Remote and Airstream IR (sold Separately)
• IEC AC IN/OUT on rear to daisy chain power (up to 12 fixture’s @ 120V and 21 fixture’s @ 230V )
• Multi-voltage Operation: AC 100-240V, 50/60Hz
• Dimensions (LxWxH): 12.25”x 12” x 13.25” / 312 x 306 x 334 mm
• Weight: 11 lbs./4.9 kgs.
