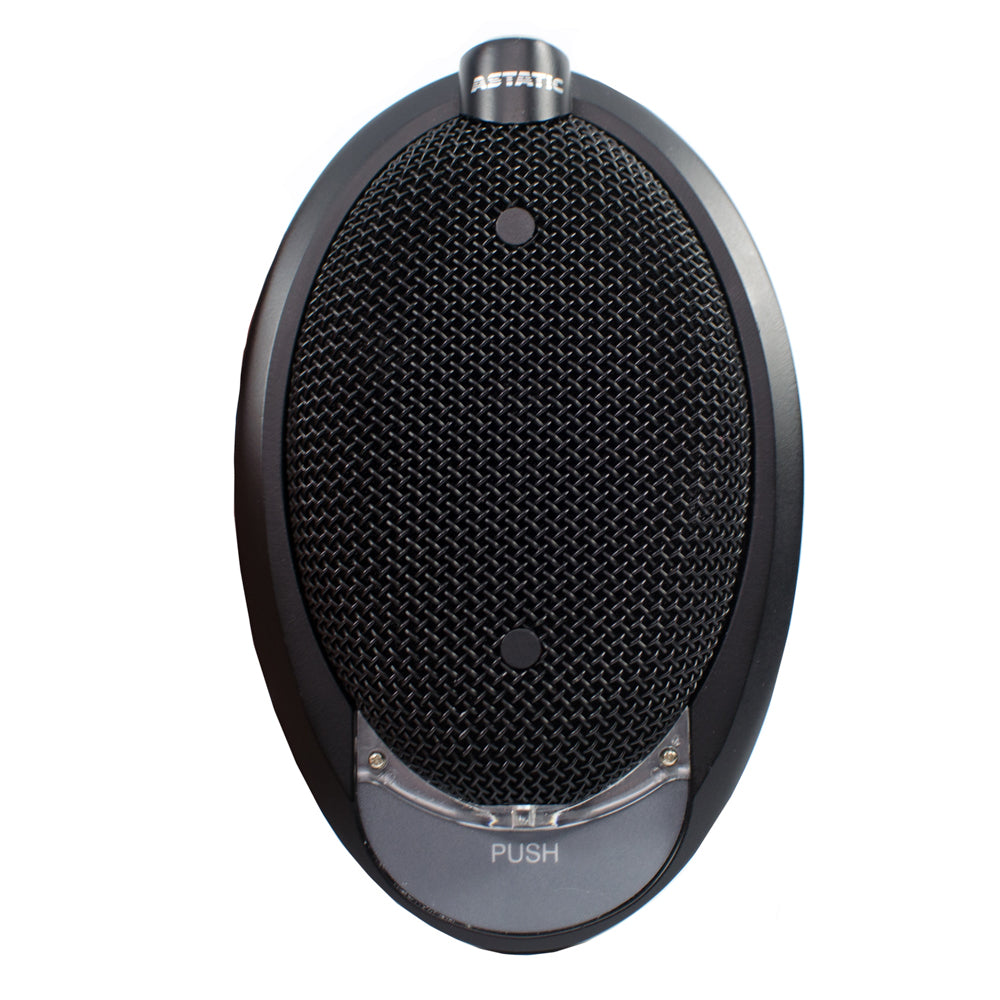

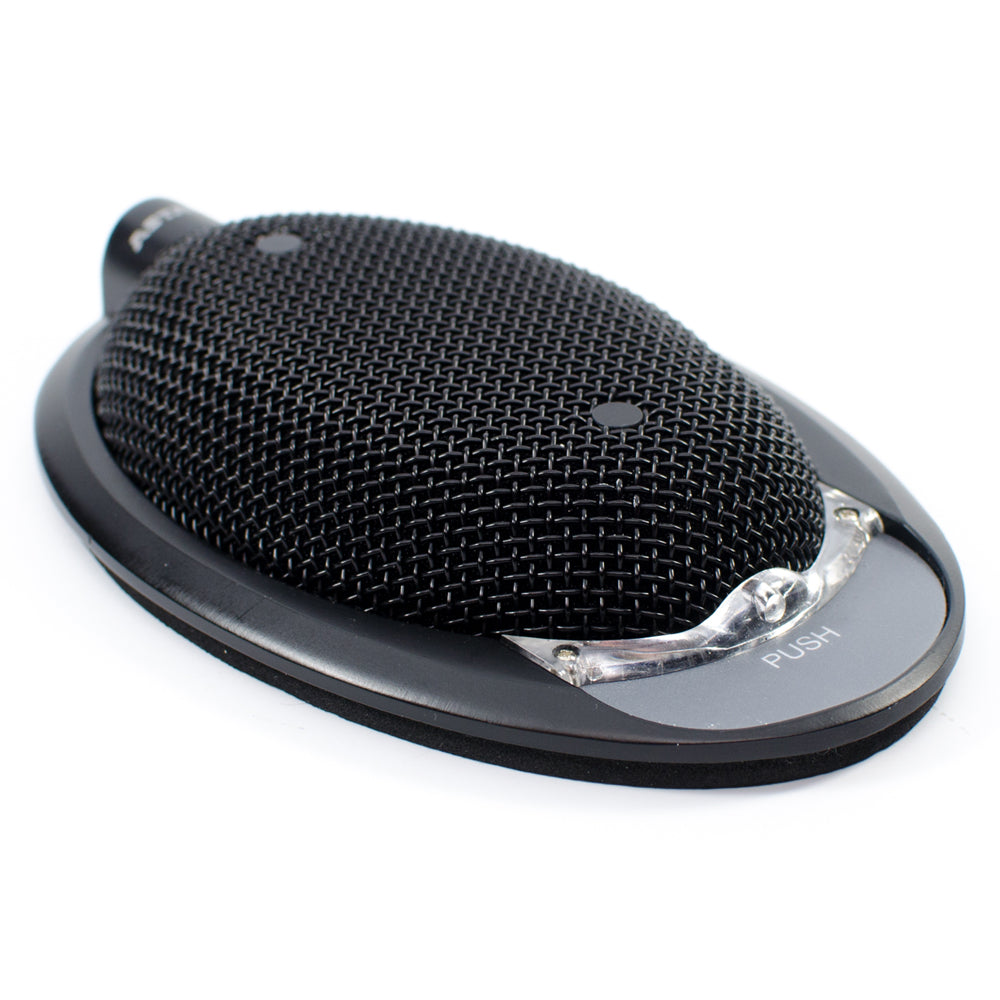

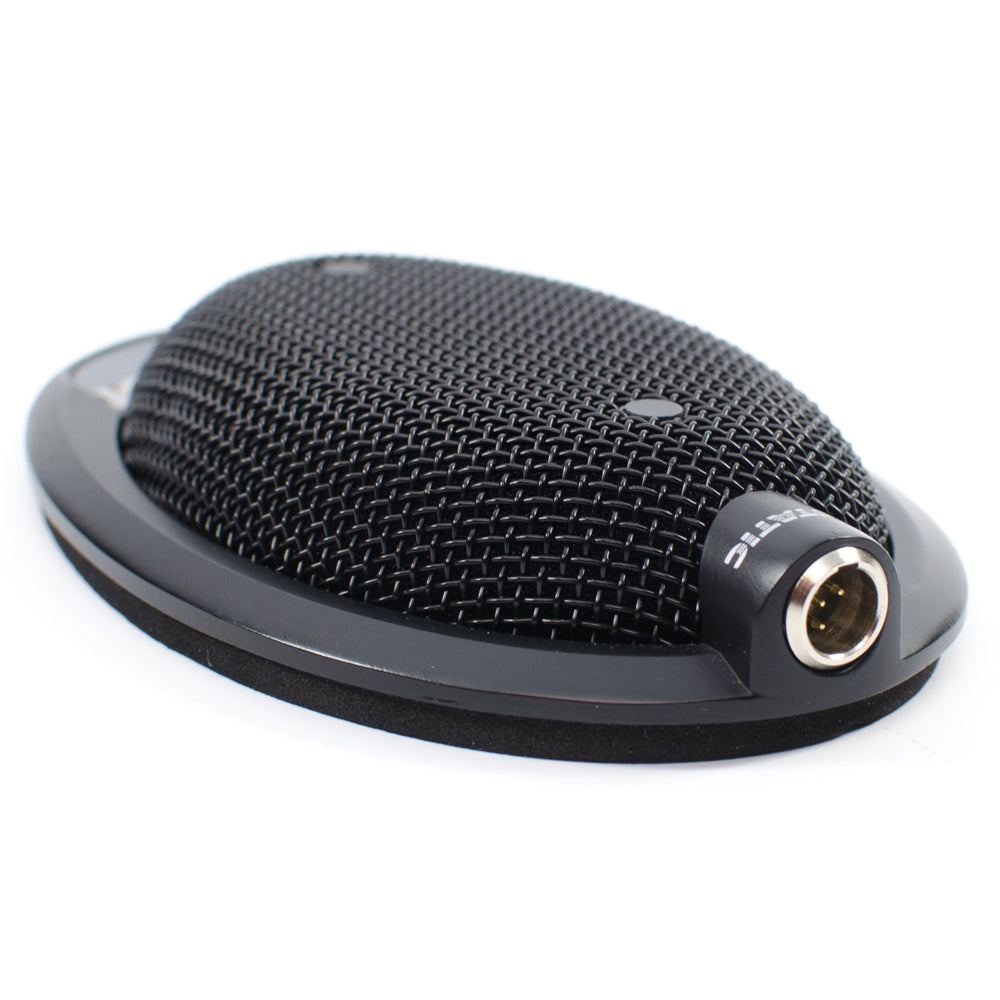

CAD Astatic Variable Polar Pattern Condenser Desktop Boundary Microphone

CAD Astatic Variable Polar Pattern Condenser Desktop Boundary Microphone

Regular price £409.00
Regular price Sale price £409.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

CAD

View full details

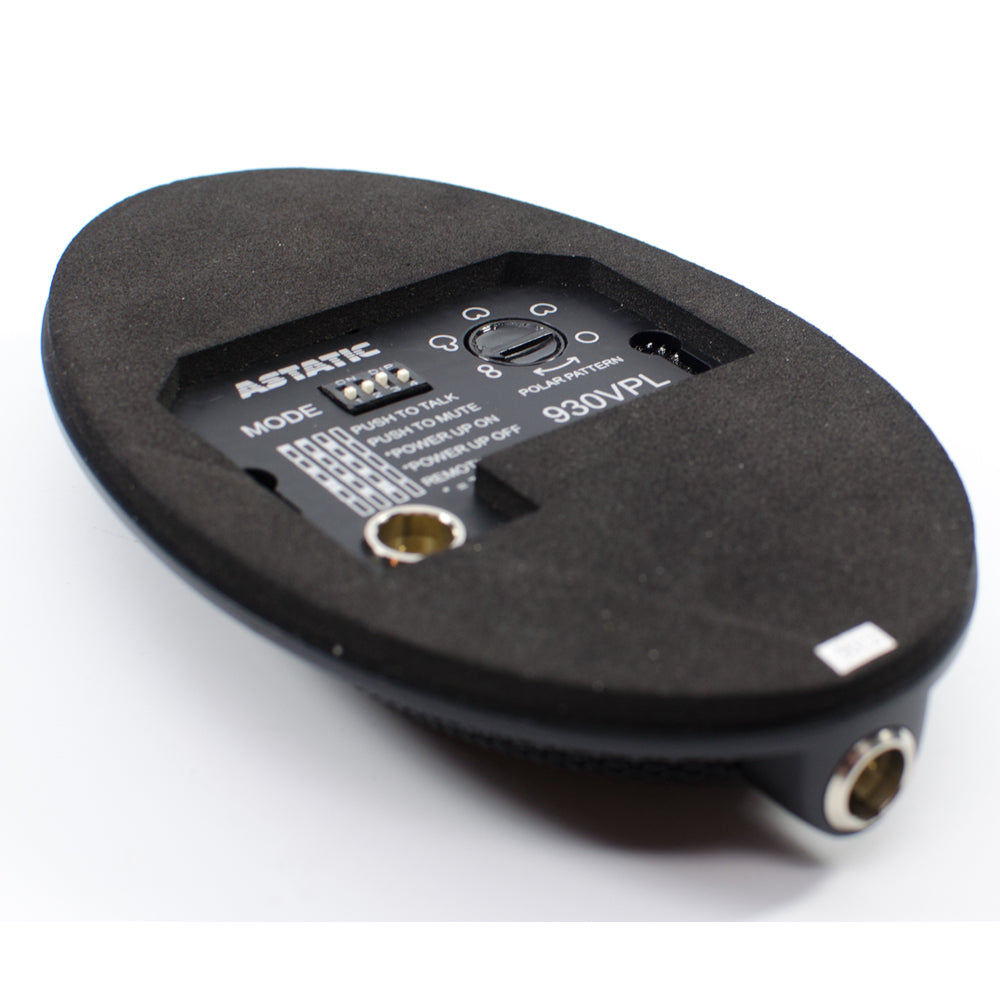

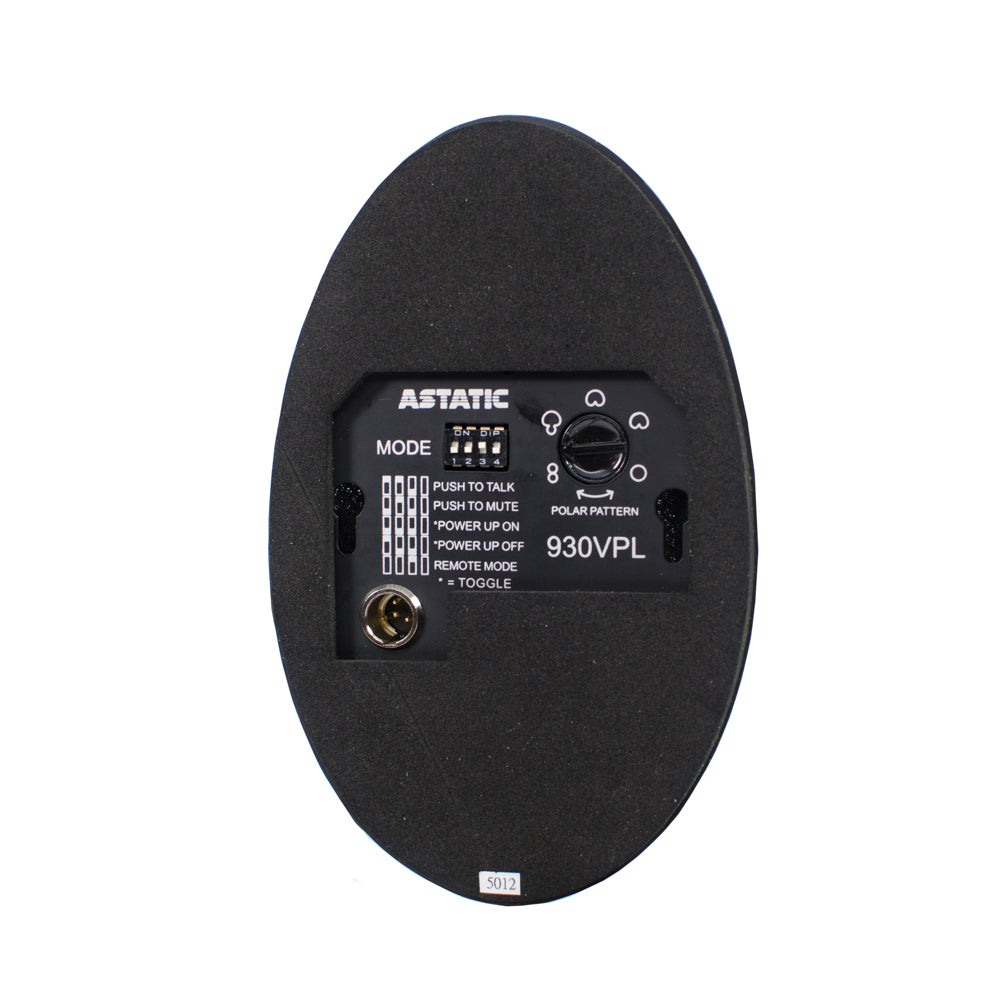

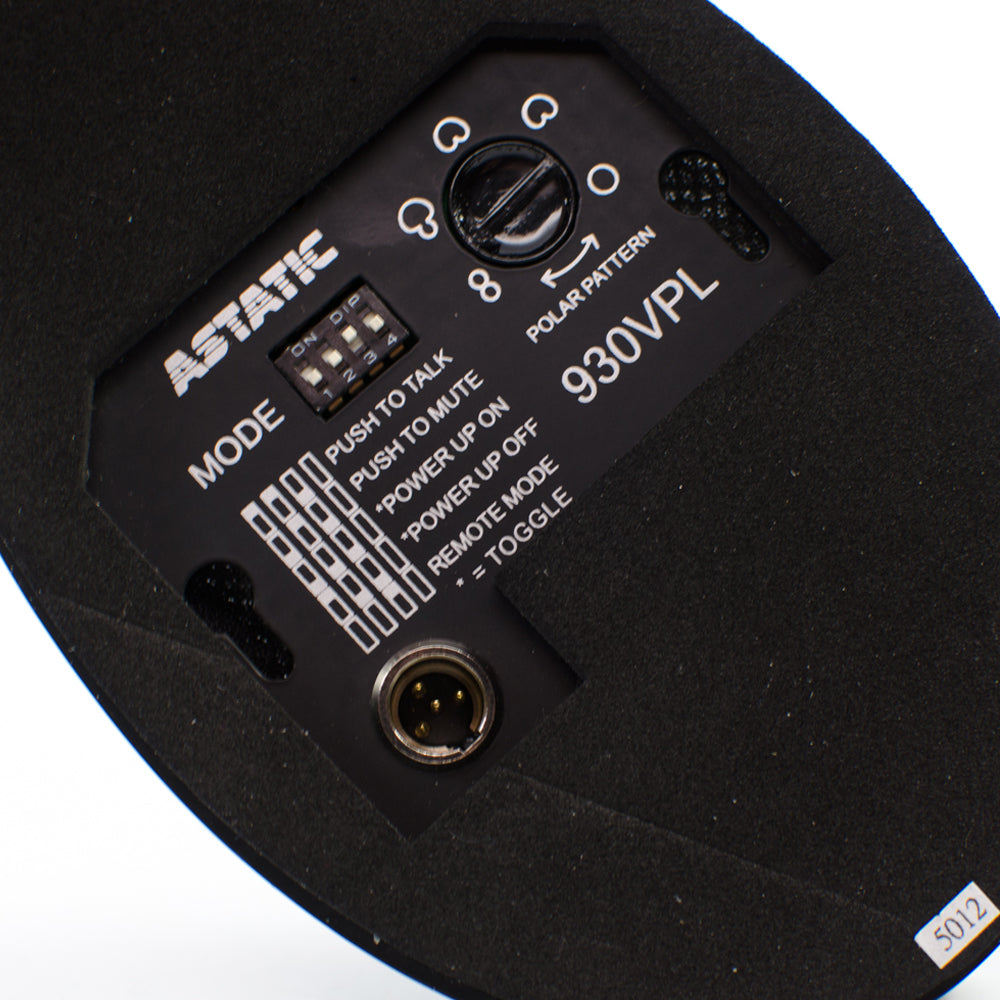

Now one boundary mic can suit almost any challenge when tasked to perform on altars, conference tables and stage floors or in media production. Because the Astatic 930VPL has variable pick-up pattern selection it can shorten the list of products an audio system designer requires when boundary mics are specified. From omni-directional to cardioid, hypercardioid, figure-of-eight and all tight or wide directional pick-up patterns in between, an installer or designer can precisely tailor the mic’s pick-up pattern for the best performance depending on the application or environment. Selectable power-up on or power-up muted modes using dip switches.

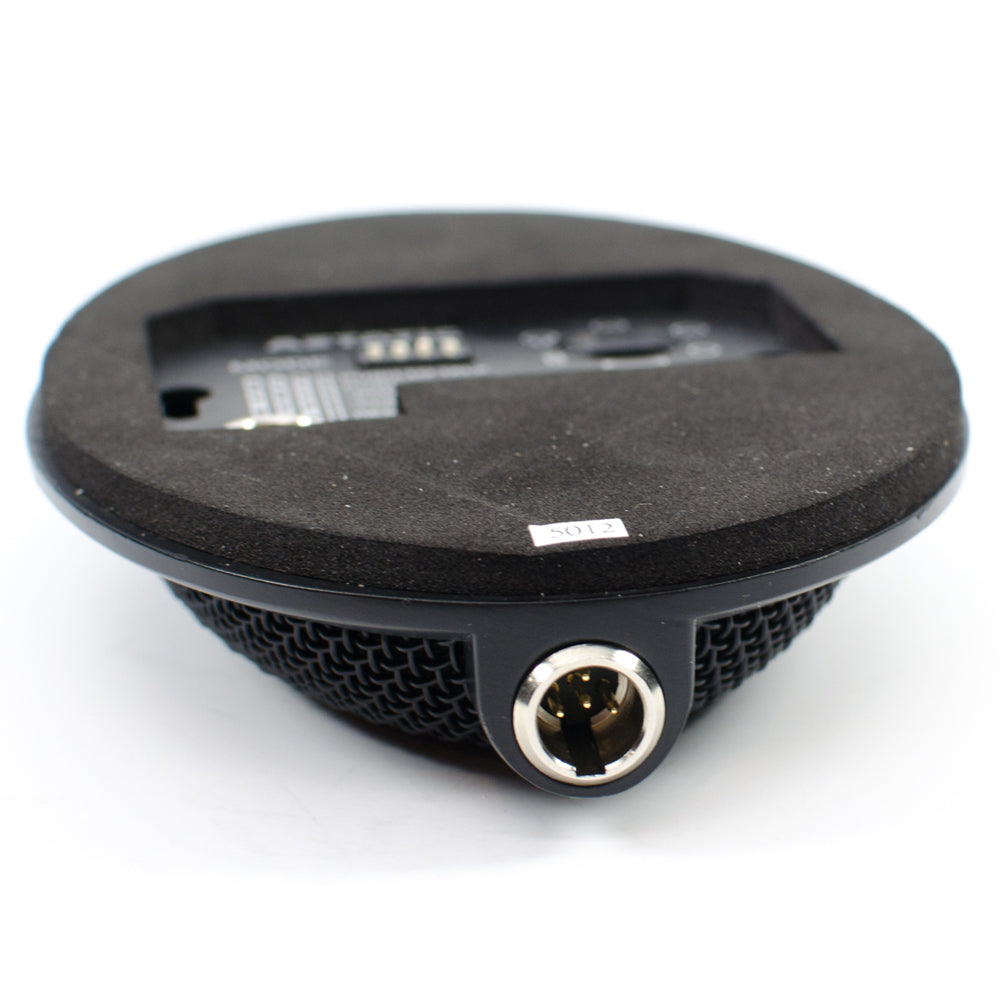

Features the RF Resistant Architecture, programmable CADtouch™ membrane with LED, contact closure in and out interface, and a bottom exit cable option.

Specifications:
Operating Principal Permanently-Biased Condenser
Polar Pattern Continuously Variable
Frequency Response 90Hz – 17KHz
Sensitivity -32dBV (25 mV) @ 1 Pa
Impedance 120 ohms
Max SPL 120dB
Self Noise 29dBA
Power Requirements P12, P24, P48, 4mA
