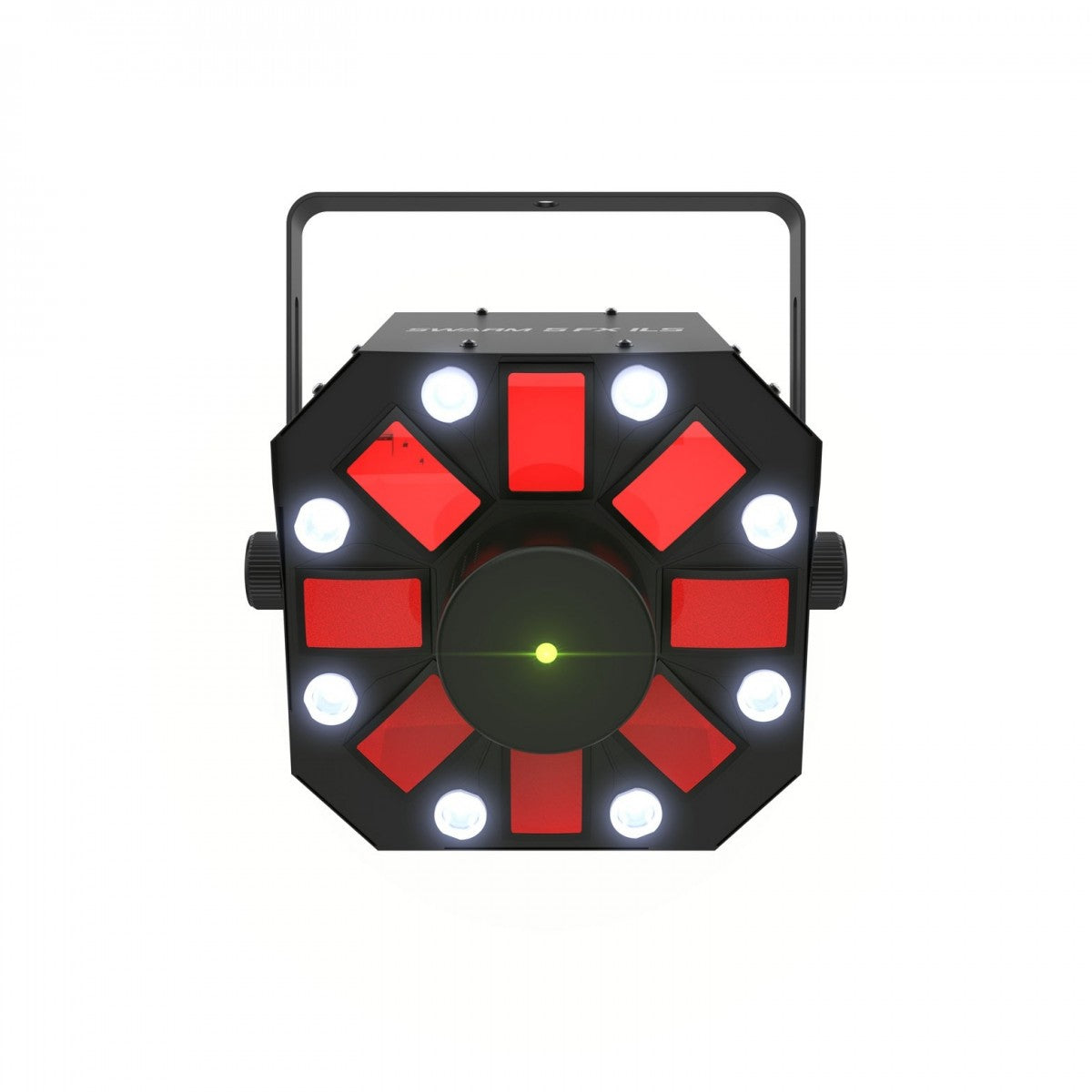

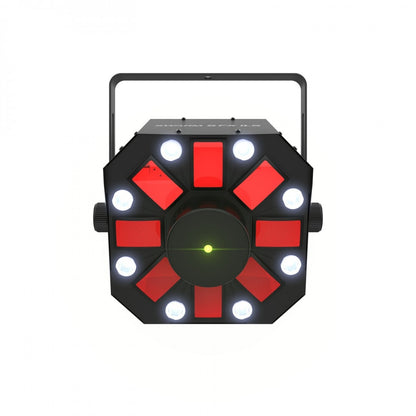

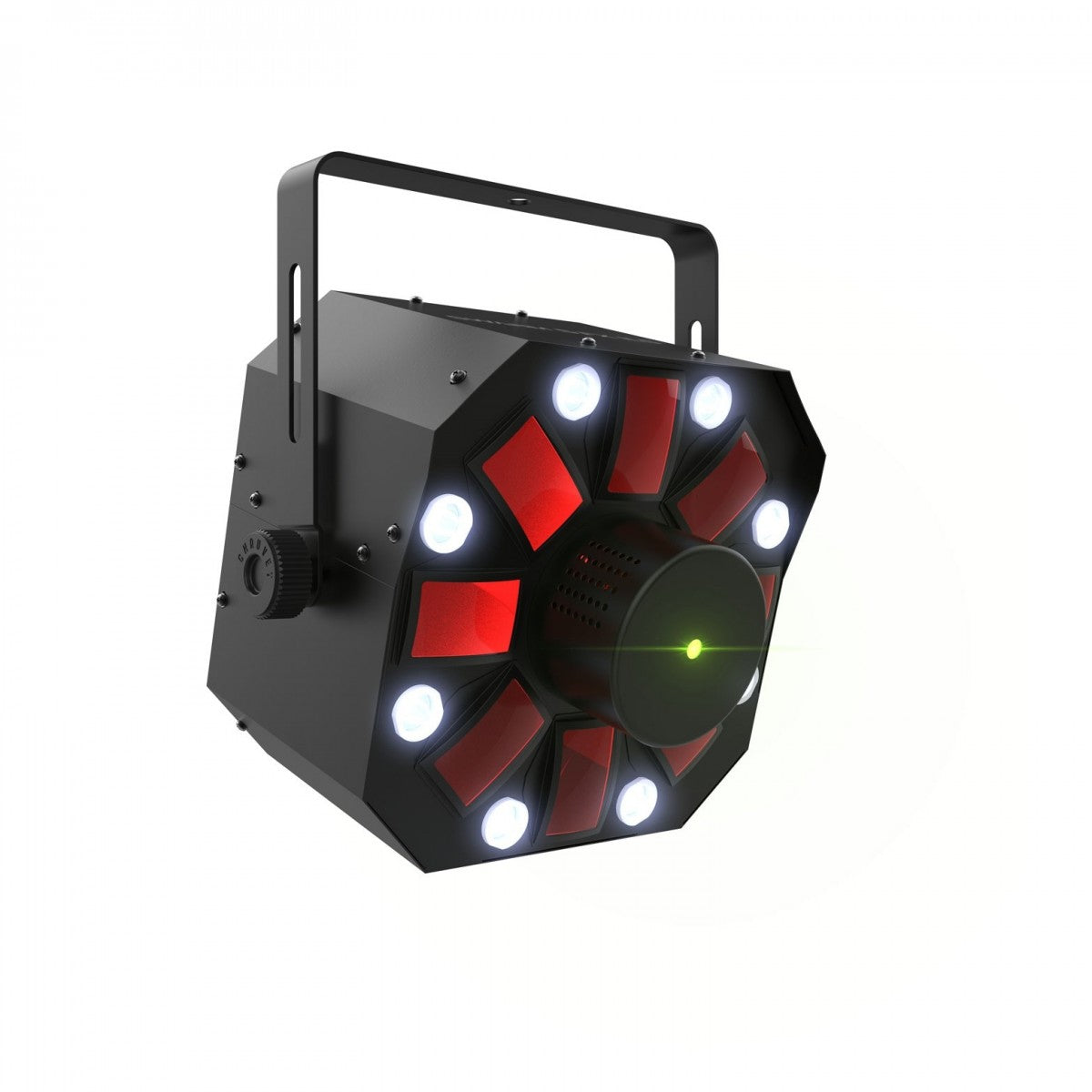

Chauvet DJ Swarm 5 FX ILS 3-in-1 LED Lighting Effect

Elevate your event to new heights with the Chauvet DJ Swarm 5 FX ILS, an exceptional 3-in-1 LED lighting fixture that seamlessly combines dazzling red and green lasers, dynamic white strobe effects, and vibrant RGBAW spinning derby effects. This innovative lighting solution allows you to create breathtaking lighting displays that captivate and enchant your audience.

With independent colour and program control, you can effortlessly customise the lighting to perfectly complement the atmosphere of any occasion. The built-in automatic and sound-activated programs, along with Master/Slave and DMX mode, provide an array of control options, ensuring your show is nothing short of spectacular.

By power combining multiple units, you can craft synchronised light displays that not only dazzle but also simplify your setup by minimising the need for extensive cable running. The Swarm 5 FX is designed for convenience, fitting comfortably into the CHS-40 VIP Gear Bag for effortless storage and transport.

And if the thought of DMX seems daunting, rest assured that Chauvet DJ’s Integrated Lighting System (ILS) simplifies the process. Built on the remarkable GigBAR Move + ILS, this system allows for complex, synchronised displays across multiple fixtures, empowering you to achieve a stunning lighting setup without the stress. Unleash your creativity and take your events to the next level with the Swarm 5 FX ILS!

• Compatible with other ILS products for seamless system integration
• RGBAW rotating derby, RG laser, and white strobe for 3-in-1 LED action
• Compatible with D-Fi USB for wireless control via Master/Slave or DMX

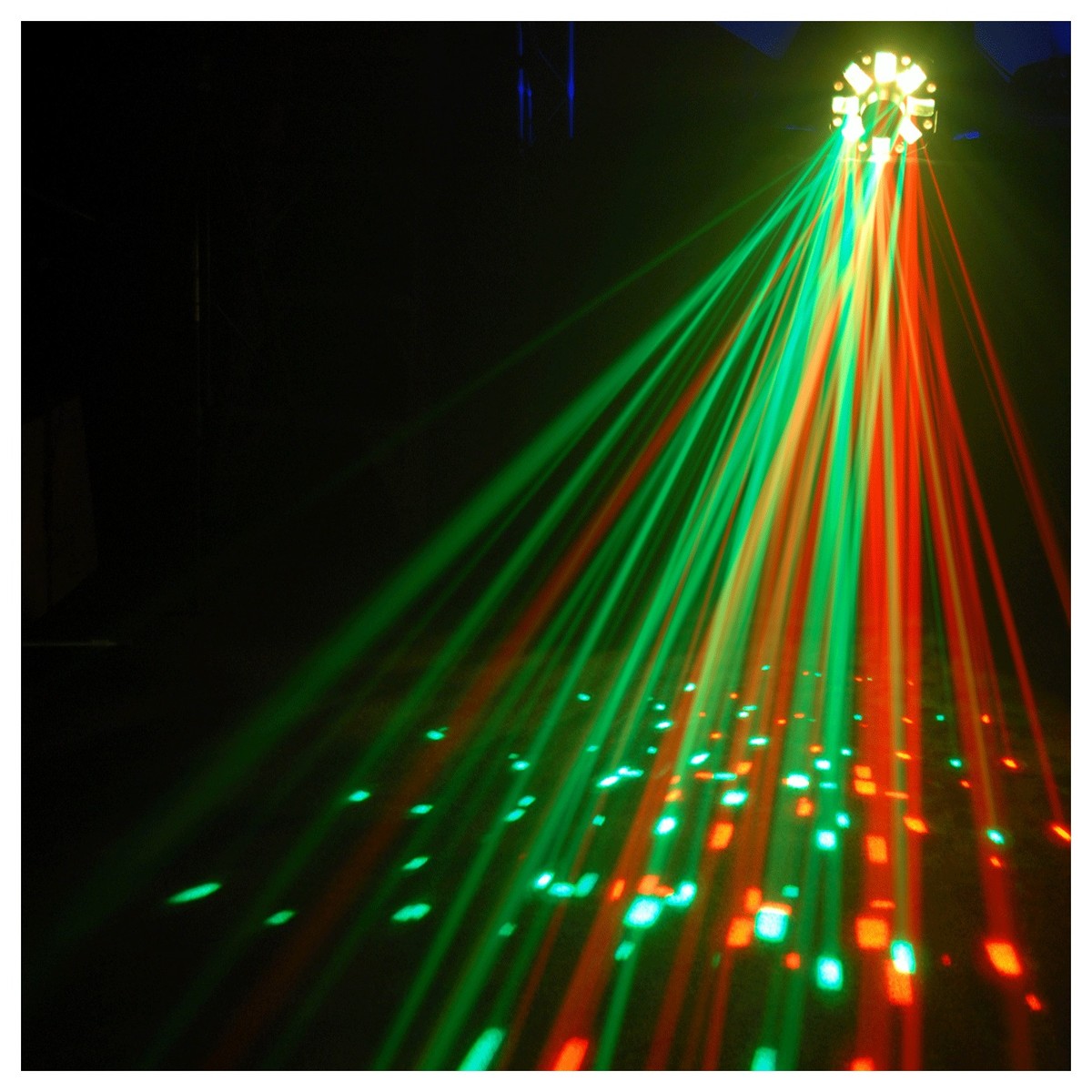

• Thousands of red and green laser beams projected via the laser
• Allows for separate colour and program control
• Automated, sound activated, Master/Slave and DMX modes
• Power link units for a more efficient setup

• DMX Channels: 9

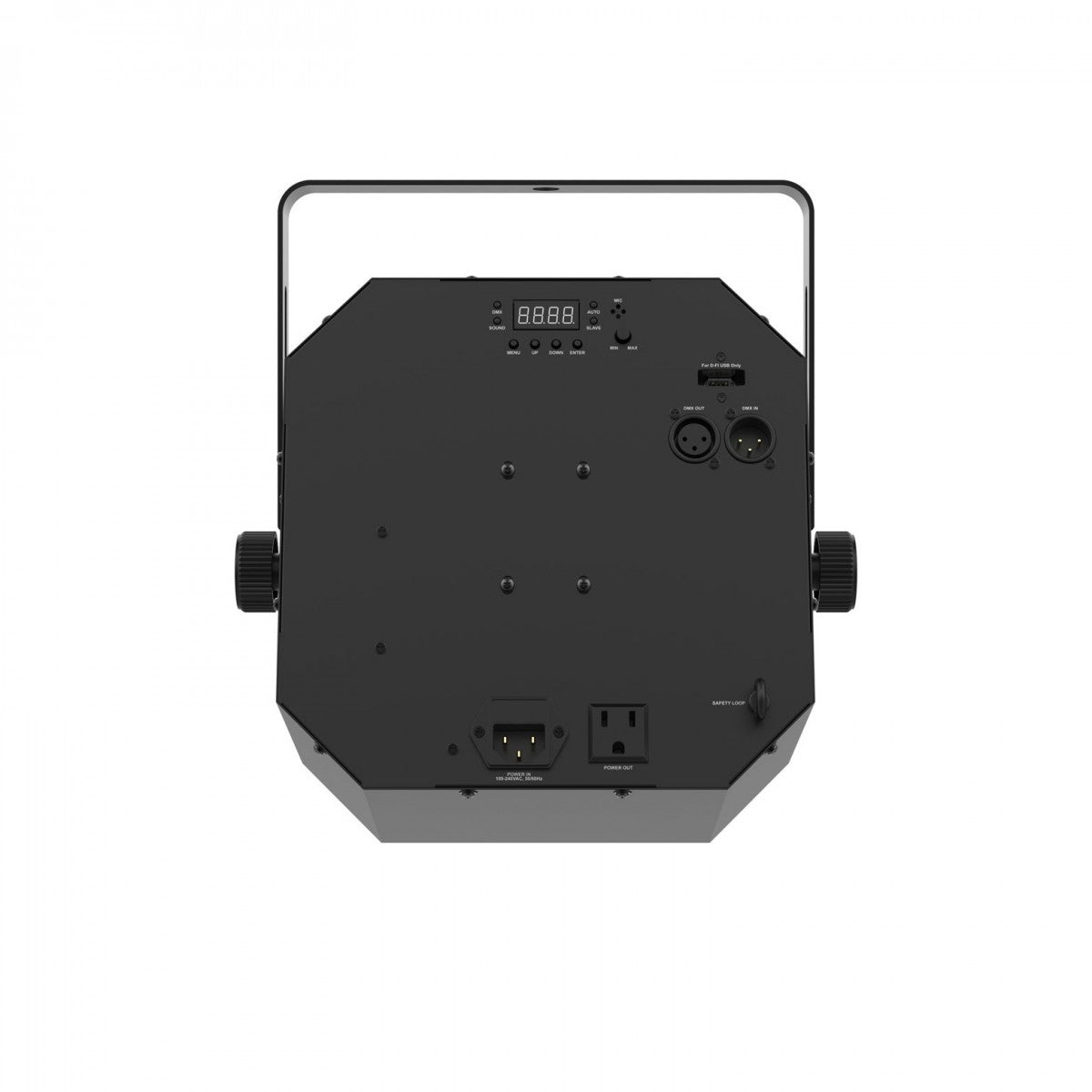

• DMX Connectors: 3-pin XLR
• Light Source (Swarm): 5 LEDs (1 red, 1 green, 1 blue, 1 amber, 1 white) 3 W, (300 mA), 50,000 hours life expectancy
• Light Source (strobe): 8 LEDs (white) 1 W, (300 mA), 50,000 hours life expectancy
• Light Source (laser): 520 nm/30 mW (green) laser diode, 650 nm/100 mW (red) laser diode
• Strobe Rate: 0 to 20 Hz
• Beam Angle (strobe): 17°
• Field Angle (strobe): 35°
• Coverage Angle (laser): 100°
• Coverage Angle (Swarm): 65°
• Illuminance (strobe): 823 lux @ 2 m
• Power Linking: 15 units @ 120 V; 26 units @ 230 V
• Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)
• Power and Current: 62 W, 0.5 A @ 120 V, 60 Hz
• Power and Current: 62 W, 0.3 A @ 230 V, 50 Hz
• Weight: 9.8 lb (4.5 kg)
• Size: 9.75 x 11.7 x 12.2 in (248 x 298 x 310 mm)
• Approvals: CE, FDA, RoHS, UKCA
