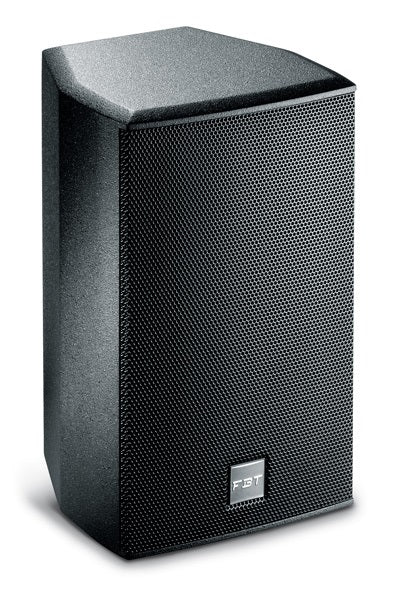

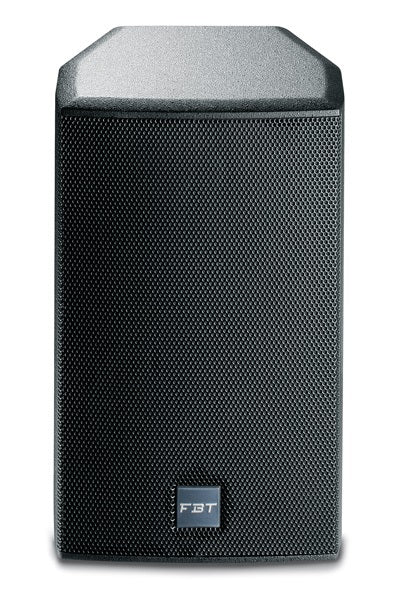

FBT Archon 108 Passive Sound Reinforcement Speaker

FBT Archon 108 Passive Sound Reinforcement Speaker

Regular price £649.00
Regular price Sale price £649.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

The FBT Archon 108 is a new generation loudspeaker that has been designed primarily for modern indoor spaces and is equipped with a custom made 8-inch low-frequency woofer as well as a 1.5-inch high-frequency dome tweeter to give you a full-range sound with a high SPL and accurate sonic reproduction.

The Archon series aims to meet the high expectations of the installed sound market and work to provide you with a high-quality sound that is more than ideal for modern indoor spaces. This 2-way passive sound reinforcement speaker features a bi-amplified design that packs a punch thanks to the 121dB SPL and 350w of power and makes use of rotatable horns so you can optimise the speaker for horizontal or vertical sound dispersion. A selectable full-range crossover network is equipped with four Euroblock speaker terminals with a factory preset that streamlines the line transformer installation and allows you to get your system sounding exactly as you’d like it.

The Archon 108 is housed in 12mm thick Baltic birch plywood cabinet that is fitted with multiple M5 and M10 threaded mounting points so you can position the speaker almost anywhere you’d like it. The front of the speaker is covered by an acoustically transparent steel grille which is backed using an anti-dust protection cloth and features a brand new rotatable FBT badge so it can face the correct way after horizontal or vertical installation. The Archon 108 ideally works at its best in bars, pubs, restaurants, retail shops, clubs, entertainment venues, fitness centers, conference rooms, theatres, schools and colleges, places of worship and exhibition centers.

  • Stylish architectural cabinet design
  • Acoustically transparent steel grilles with protection cloth
  • High SPL, fast responding dynamics, excellent intelligibility, wide band, extremely low distortion
  • Baltic birch plywood cabinets available in black or white extra texture paint
  • Choice of different RAL paint colours on order
  • Choice of different paint finish: glossy, matt, textured and more, on order
  • Custom designed low frequency woofers, made in Italy
  • Custom designed high frequency compression drivers, made in Italy
  • Rotatable horns for optimal horizontal or vertical sound dispersion angle
  • Selectable bi-amp/full range crossover network
  • Full suspension possibilities through multiple M10 / M5 threaded rigging points and a wide range of mounting hardware
  • Possibility to install line transformers for 100V/70V applications
  • Possibility to order weatherproof versions for outdoor use
  • Possibility to extend low frequencies performance through dedicated and compact subwoofers (Archon 208S, Archon 215S)
  • Configuration: 2 Way
  • Frequency response: 55Hz - 22kHz 6dB
  • Low Frequency woofer: 8" with 1.5" VC
  • High Frequency driver: 1.5" Dome Tweeter
  • Maximum SPL cont/peak: 118/121dB SPL
  • Dispersion: 90 x 90 (H x V)
  • Crossover Frequency: 2kHz
  • Input connector: 4x Euroblock
  • Net Dimension (WxHxD): 248 x 411 x 248mm
  • Net Weight: 6.5kg
  • Transport Dimension (WxHxD): 330 x 491 x 330mm
  • Transport Weight: 8.5kg
