FBT ProMaxX 110a 10" Active PA Speaker

FBT ProMaxX 110a 10" Active PA Speaker

Regular price £685.00
Regular price Sale price £685.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

The new FBT ProMaxX 110a is an active 10 - inch PA speaker that aims to combine Italian style with a high-quality build and excellent sounding audio. The ProMaxX comes equipped with B&C’s world leading compression driver technology while a purpose built FBT amplifier module sits in at the heart of the speaker with a switch mode power supply.

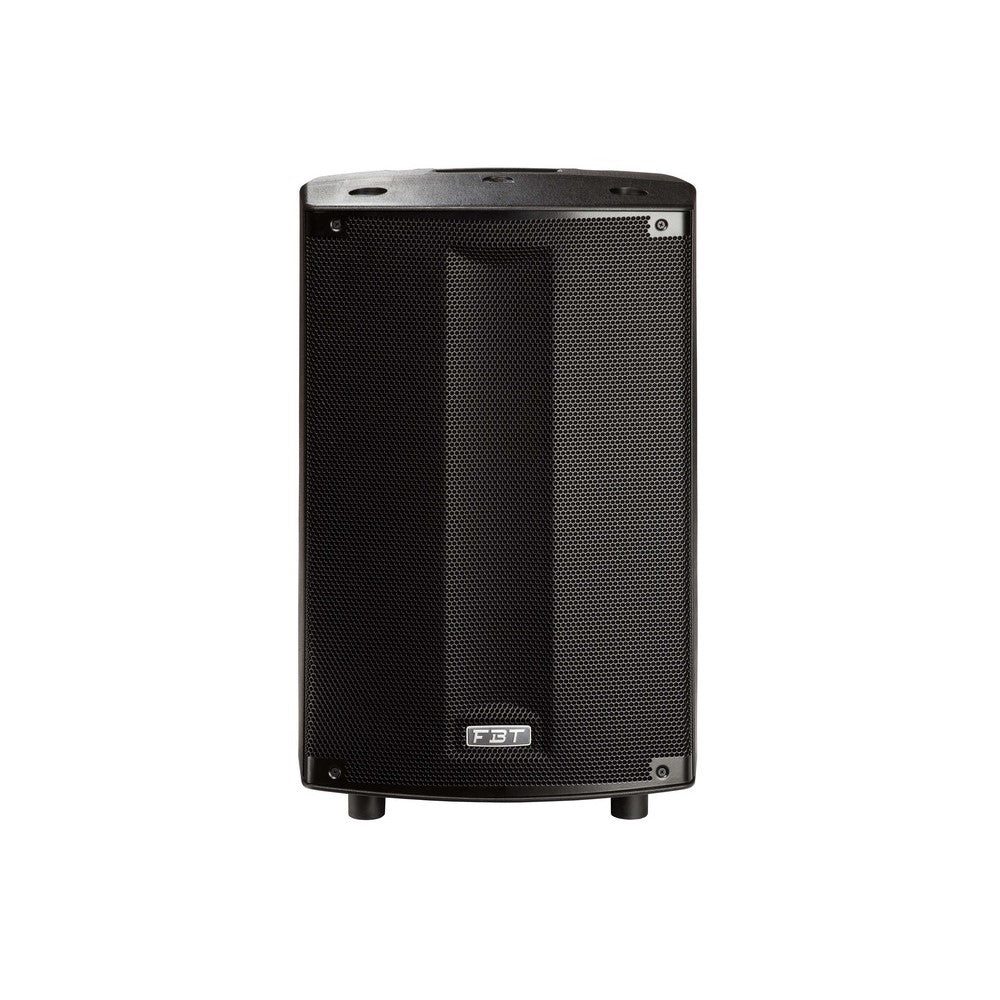

FBT ProMaxX 110a Speaker



The low-frequency section provides you with 700W RMS that is driven via a super efficient Class-D topology, granting extremely low THD while a 200W RMS is being delivered via a Class-H/AB design, ensuring the highest possible quality of high frequencies. A powerful onboard digital signal processing platform (DSP) is available to users thanks to an intuitive graphical user interface that is located on the rear of the speaker. The menu driven feature is navigated via a rotary control and push to select functionality.

A specially designed polypropylene cabinet ensures a strong build quality and provides you with ample protection as well as a stylish full grille covering the drivers. The robust build and lightweight of the ProMaxX 110a makes it brilliant for transporting to and from events.

The ProMaxX 110a speaker allows users to choose between six EQ presets, each one has been carefully designed by FBT engineers to make sure that every application of the speaker is catered for. Alternatively, 2 preset slots allow the user to create their own EQ settings using the five parametric EQs per slot. Other functions include a high-pass filter, mic/line selector, low/mid/high tone settings and a delay between 0 and 3.5 meters as well as two limiter modes, MAX-QUALITY and MAX-SPL.

The ProMaxX 110a is a very versatile speaker that can be pole-mounted, wall-hung, suspended or deployed in an arrangement. This results in the most accessible ProMaxX to date.

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

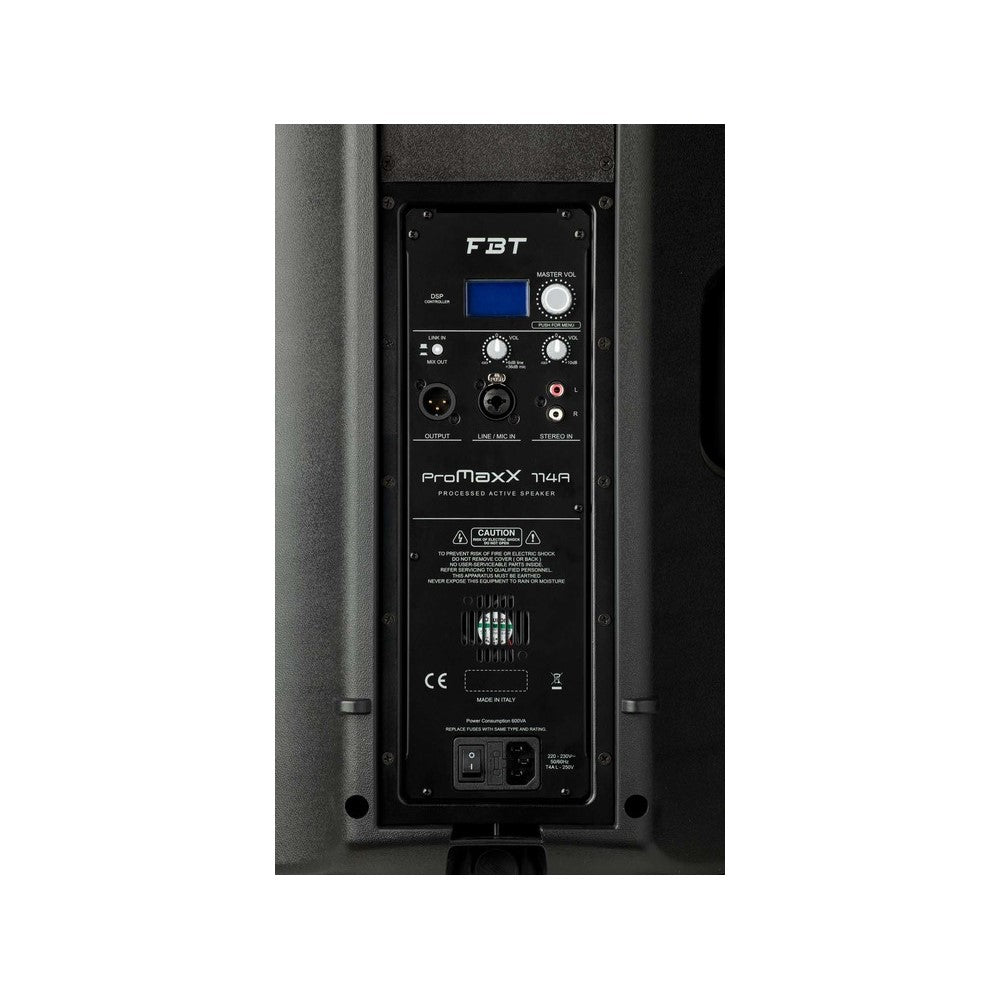

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 250mm (10") LF woofer with 50mm (2") voice coil, custom made for FBT
  • 25mm (1") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 58Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 10.3kg/22.70lb
  • Power cord: 5m
  • Net Dimension (WxHxD): 320 x 550 x 275mm
  • Net Weight: 10.3kg
  • Transport Dimension (WxHxD): 400 x 630 x 360mm
  • Transport Weight: 12.8kg
  • Configuration: 2 Way
  • Built in amplifier: 900w (700w LF + 200w HF)
  • Built in amplifier peak: 1800w (1400w LF + 400w HF)
  • Frequency Response: 58Hz - 20kHz -6dB
  • Low Frequency Woofer: 10" with 2" VC
  • High Frequency driver: 1" with 1.4" VC
  • Maximum SPL continuous/peak: 124/131dB
  • Dispersion (HxV): 90° x 60°
  • Input Impedance: 22kOhm
  • AC power requirements: 640VA
  • Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
