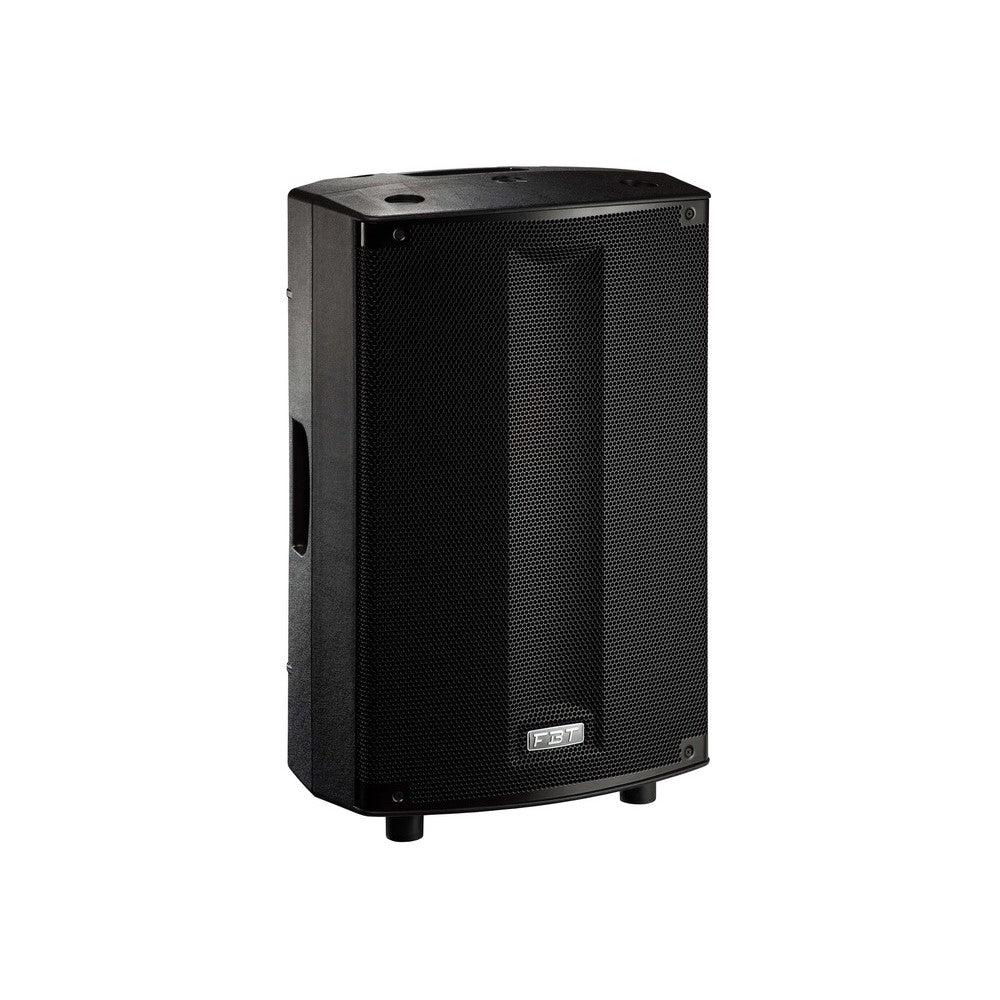

FBT ProMaxX 112a 12" Active PA Speaker

FBT ProMaxX 112a 12" Active PA Speaker

Regular price £795.00
Regular price Sale price £795.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

The new FBT ProMaxX 110a is an active 10 - inch PA speaker that The FBT ProMaxX 112a is an active PA loudspeaker with 12 inch drivers and combines a mix of Italian style with high-quality build and excellent sounding audio.

FBT ProMaxX 112a Speaker



The ProMaxX 112a comes equipped with B&C world-class compression driver technology and a purpose built FBT amplifier module that uses a switch power mode at the heart of the speaker. The low frequencies are supplied thanks to a 700W RMS driven by a highly efficient Class-D topology granting extremely low THD, the high frequencies are provided due to the 200W RMS driven by a Class-H/AB design offering high definition audio.A powerful onboard digital signal processing platform (DSP) is available to users due to an intuitive graphical user interface on the rear of the speaker that is a menu driven system controlled via a single rotary knob with push to select functionality.

The ProMaxX 112a comes with six EQ presets that have all been carefully designed by FBT engineers meaning every application is catered for. Plus users get 2 presets slots that allow you to mould your own EQ settings that use five parametric EQs per slot. Other functions available are a high pass filter, mic/line selector, low/mid/hi tone settings and a delay of 0-3.5m as well as MAX-SPL or MAX-QUALITY limiter modes.

This speaker is extremely versatile and can be used for a number of situations with options for pole-mounting, wall-hanging, suspension or deployed in an arrangement. This all results in the most accessible ProMaxX to date.

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

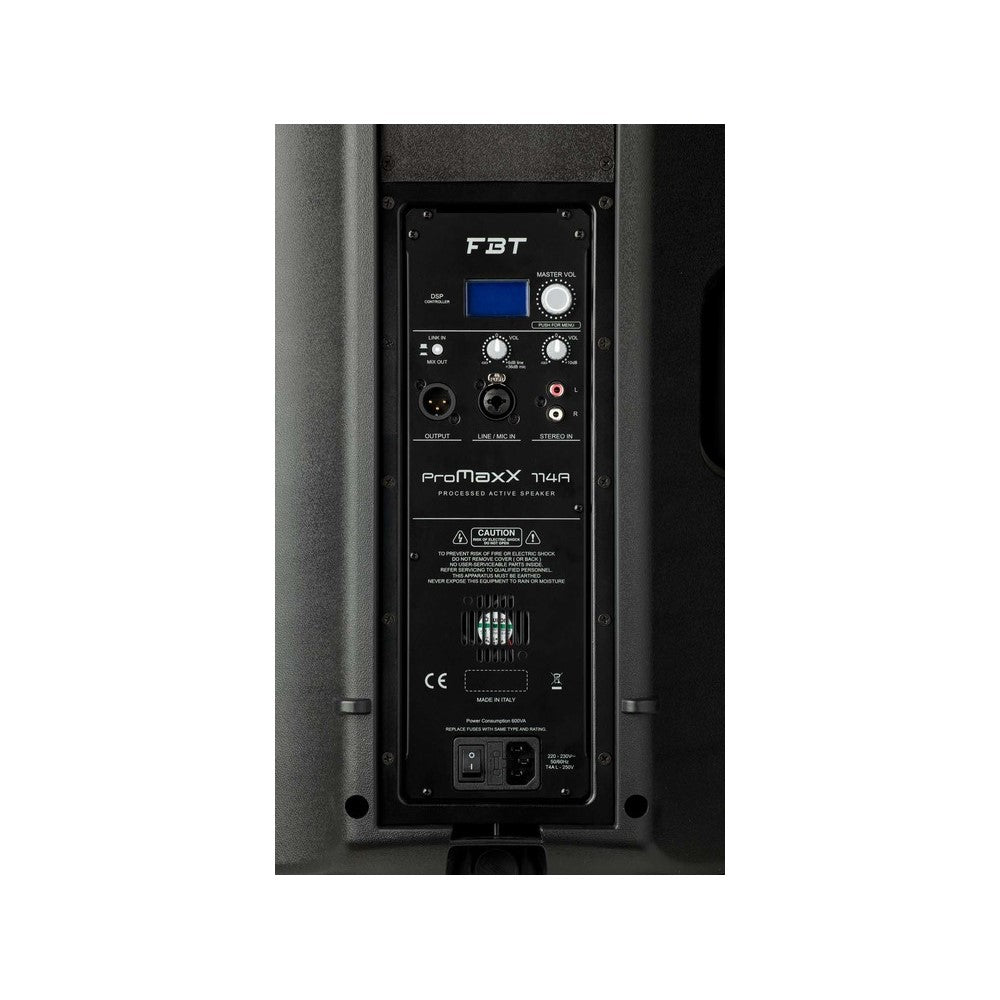

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

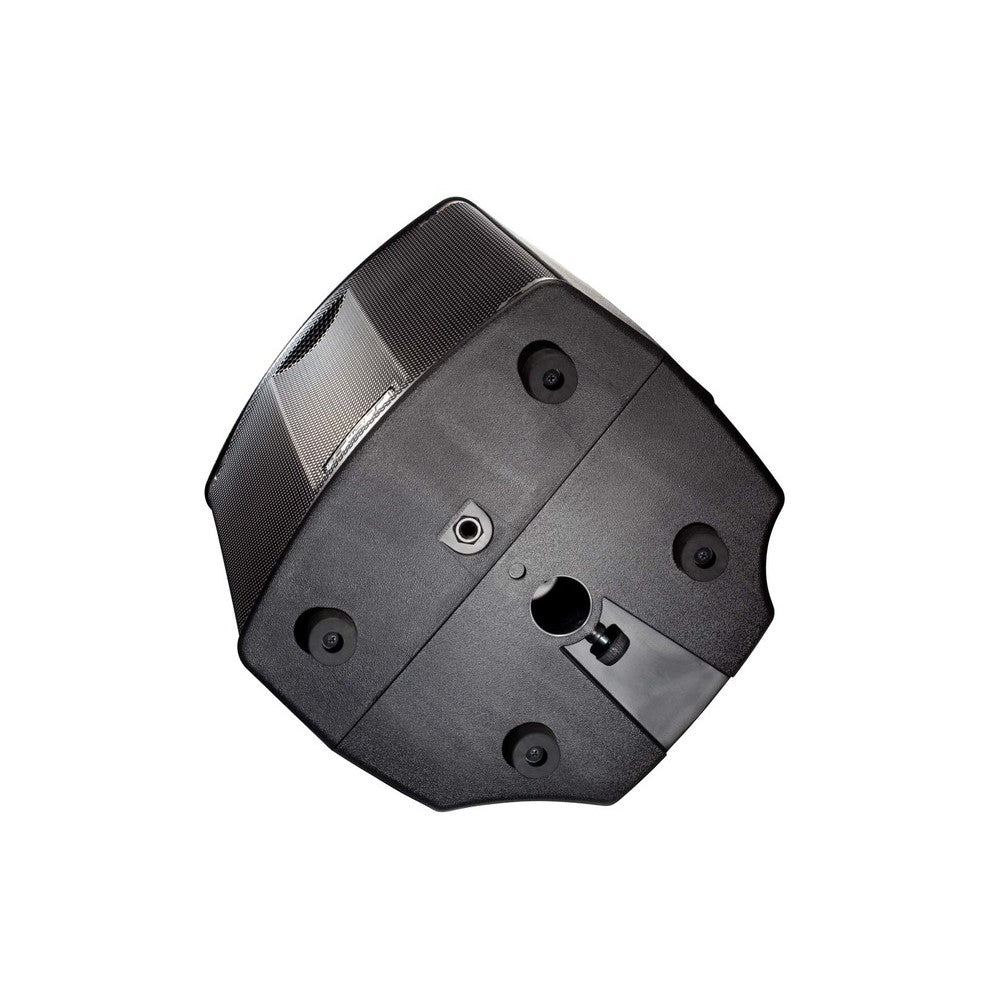

  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 320mm (12") LF woofer with 50mm (2") voice coil, custom made for FBT
  • 25mm (1") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 48Hz - 20kHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 14.8kg
  • Net Dimension (WxHxD): 402 x 644 x 345mm
  • Net Weight: 14.8kg
  • Transport Dimension (WxHxD): 500 x 745 x 440mm
  • Configuration: 2 Way
  • Built in amplifier: 900w (700w LF + 200w HF)
  • Built in amplifier peak: 1800w (1400w LF + 400w HF)
  • Frequency Response: 48Hz to 20KHz -6dB
  • Low Frequency Woofer: 12" with 2.5" VC
  • High Frequency driver: 1" with 1.4" VC
  • Maximum SPL continuous/peak: 125/133dB SPL
  • Dispersion (HxV): 90° x 60°
  • Input Impedance: 22kOhm
  • AC power requirements: 640VA
  • Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
