FBT ProMaxX 114a 14" Active PA Speaker

FBT ProMaxX 114a 14" Active PA Speaker

Regular price £949.00
Regular price Sale price £949.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

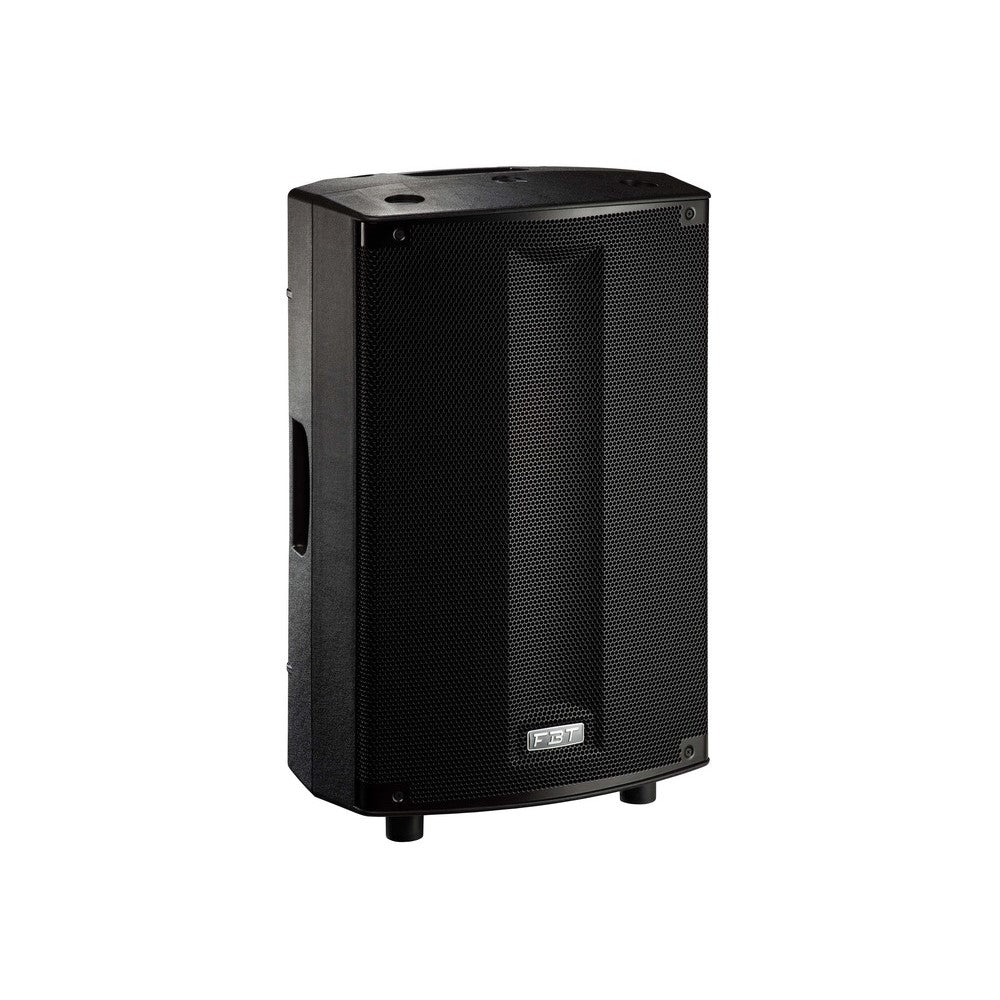

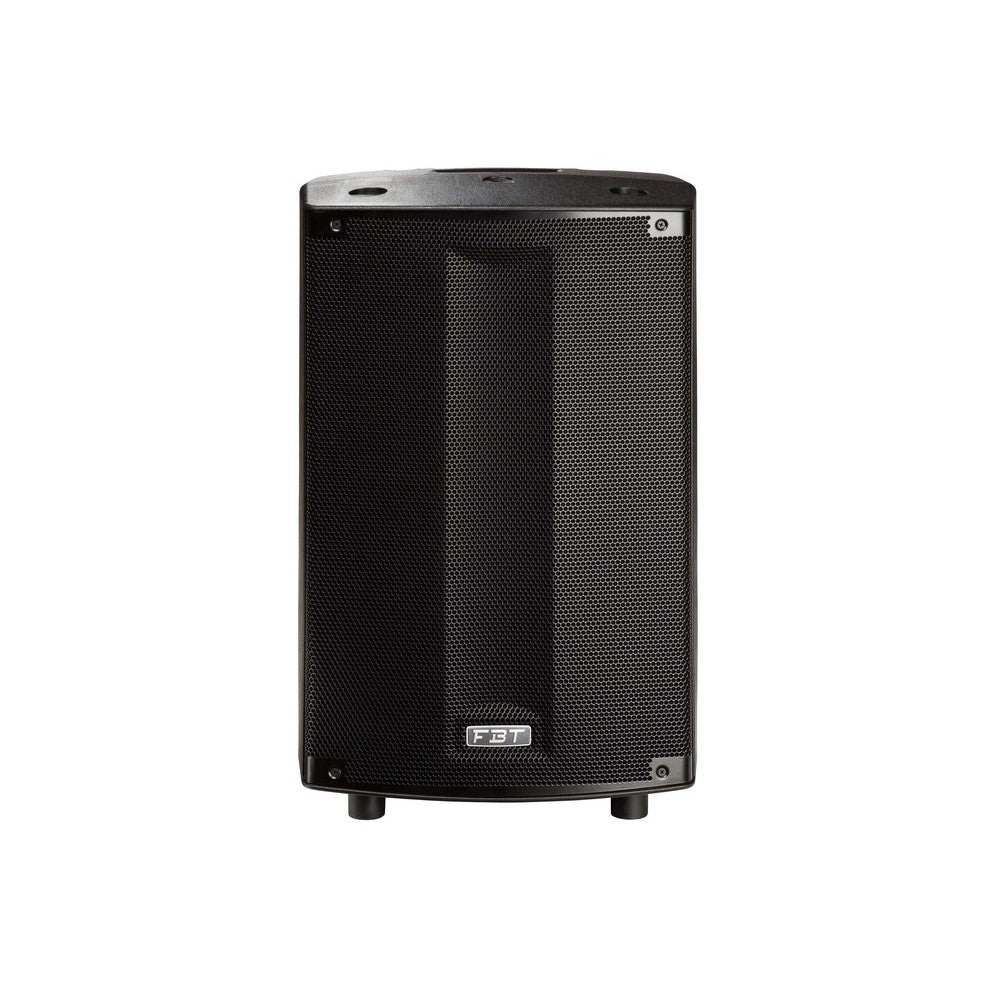

The FBT ProMaxX 114a is an active PA speaker with 14-inch drivers and aims to combine a mixture os Italian style with a robust build quality and brilliant sounding audio.

FBT ProMaxX 114a Speaker



The ProMaxX 114a comes equipped with world-class B&C compression driver technology plus the purposely built FBT amplifier with a switch-mode power supply at the heart of this speaker. A super efficient Class-D topology drives the 700W RMS that pushes an extremely low THD whereas the high frequencies are produced via a Class-H/AB driven 200W RMS offering only the highest quality audio.

A powerful digital signal processing platform (DSP) grants access to an intuitive graphical user interface on the back of the speaker that uses a menu driven system with single rotary control and push to select function.

The speaker comes with six pre-programmed FBT engineered EQ settings to cater to almost any application as well as having two slots to save your own EQ settings into each with five parametric EQs per slot. Other functions include mic/line selector, high-pass filter, a delay of 0-3.5m and low/mid/high tone setting as well as MAX-SPL and MAX-QUALITY limiter options.

The ProMaxX 114a is an extremely versatile speaker that can be used in a variety of situations and can be pole-mounted, wall-hung, suspended or deployed in an arrangement. All of this results in the most versatile ProMaxX to date.

  • 2-way, bi-amplified, bass reflex design cabinet
  • Biamped: 700W RMS LF, 200W RMS HF, power amplifiers in Class D for LF and in Class H/AB for HF with switch mode power supplies
  • Digital signal processor with graphic display

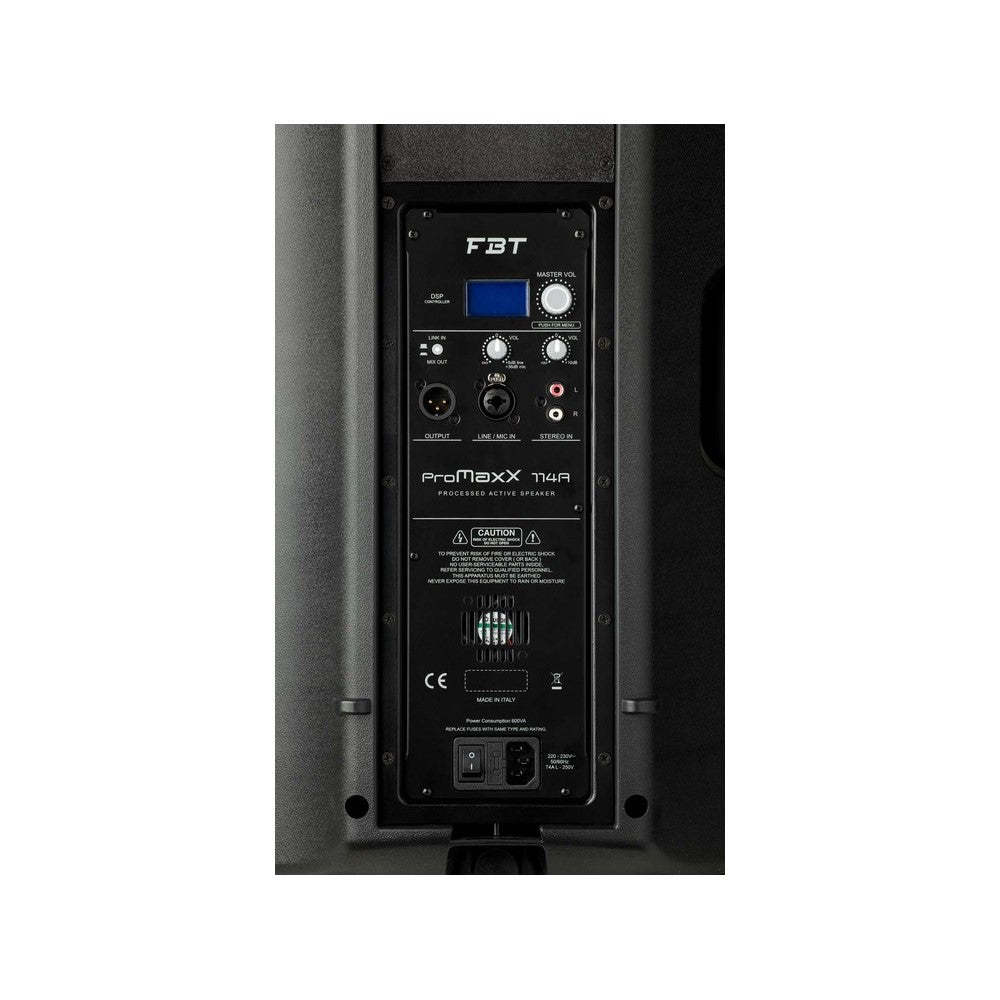

  • Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push

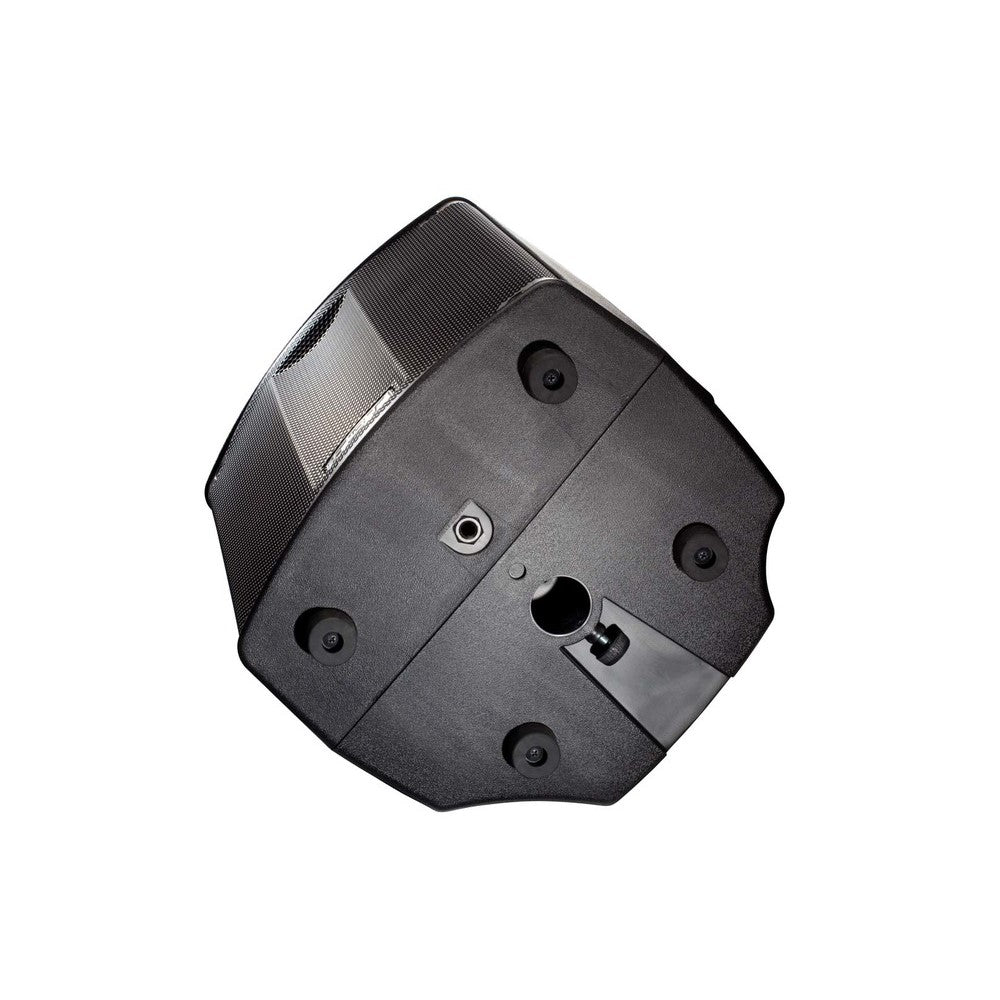

  • 2 x M10 suspension points, 35 mm (1,3/8”) top-hat speaker stand socket, wall bracket mount flange plate
  • 90°H x 60°V constant directivity horn
  • Front of House or Stage Floor Monitor: with 12°, 40° and 55° monitoring angles
  • 3550mm (15") LF woofer with 64mm (2.5") voice coil, custom made for FBT
  • 35mm (1.4") throat exit B&C HF magnet compression driver with 34mm (1.4”) voice coil
  • Frequency response from 45Hz to 20KHz
  • Sturdy, gas-injected polypropylene molded enclosures, engineered to contain undesired resonance
  • Extremely light only 17.4kg
  • Compact Dimensions: ProMaxX 114A uses the same size gas-injected polypropylene molded enclosure as the ProMaxX 112A, but features our 14” LF Woofer for lower frequency SPL
  • Configuration: 2 Way
  • Built in amplifier: 900w (700w LF + 200w HF)
  • Built in amplifier peak: 1800w (1400w LF + 400w HF)
  • Frequency Response: 45Hz - 20kHz -6dB
  • Low Frequency Woofer: 14" with 3" VC
  • High Frequency driver: 1.4" with 2.5" VC
  • Maximum SPL continuous/peak: 127/135.5dB SPL
  • Dispersion (HxV): 90° x 60°
  • Input Impedance: 22kOhm
  • AC power requirements: 640VA
  • Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
