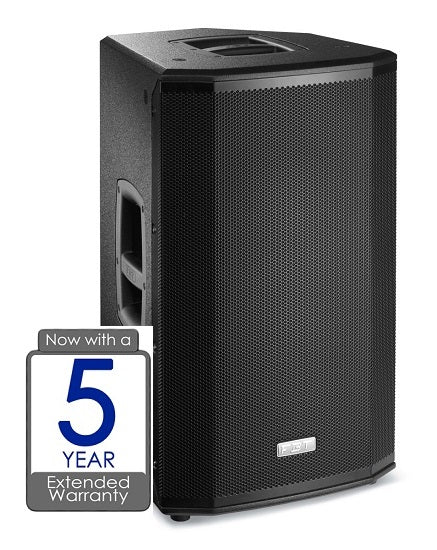

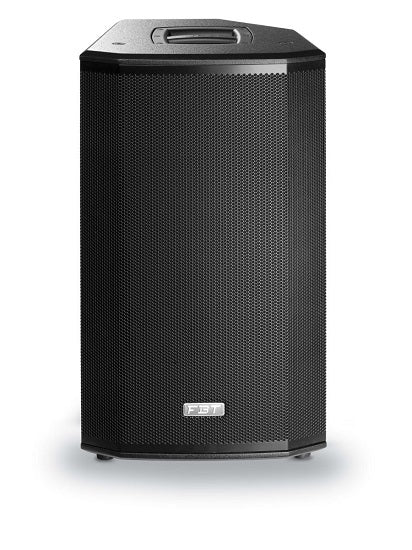

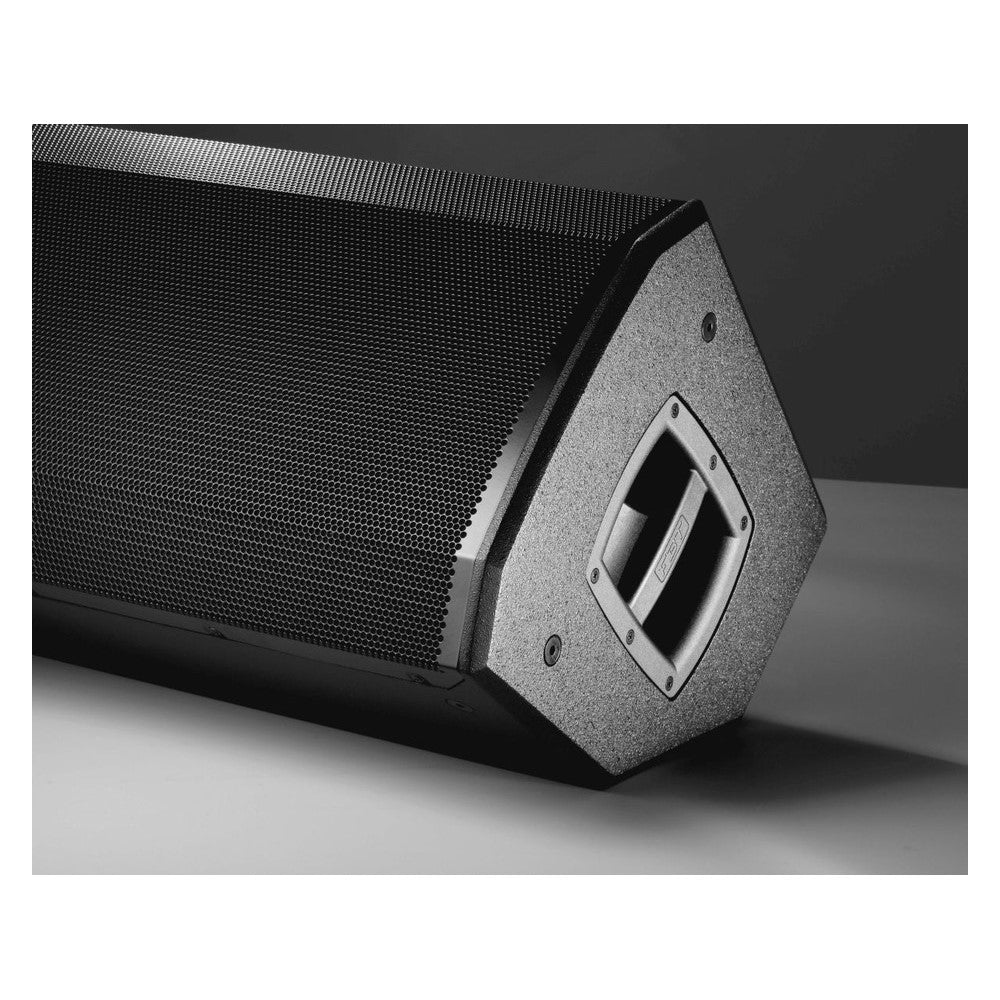

FBT Ventis 112a 900w Active PA Speaker

The FBT Ventis 112a is a 12-inch 900w active speaker with 2-way drivers and a bi-amplified bass reflex design with 700w RMS going to the low-frequency drivers and 200w RMS going to the high-frequency drivers. The speakers come with a combination of B&C compression drivers and FBT’s custom long excursion woofers, both of which give this speaker an incredible size to SPL ratio.

The Ventis 112a speakers are best suited for stage use as both front of house PA speakers or stage monitors and have been built to cope with the rigours of everyday stage use. Housed in a 15mm scratch resistant birch plywood chassis with a full grille covering the front of the speaker that has been specially treated with an acoustic cloth that provides you with the sound characteristics that FBT is well known for. The Ventis also features fully rotatable constant directivity horns to provide you with accurate coverage. This speaker also comes with an extended 5 year warranty.

The Ventis 112a also features a powerful on-board Digital Signal Processor (DSP) and gives you six versatile preset performance settings that have been crafted by FBT’s own expert audio engineers. The presets consists of:

• Original/Live – Give you the renowned, smooth FBT sound.
• Vocal – An extraordinary equaliser setting that maximises speech intelligibility.
• DJ – Designed to keep energy high and keep your audience.
• Touring – Provides you with the reliability and roar of the industry’s most popular touring systems.
• Loudness – The ultimate preset for listening at a low to medium volume.
• Warm – A unique preset that emphasises full-bodied, low-mid frequencies.

• 2-way, bi-amplified, bass reflex design
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
• 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
• High efficiency switch mode power supply
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 320mm (12”) LF woofer with 64mm (2.5”) voice coil, custom made for FBT
• 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
• Frequency response from 48Hz to 20 kHz
• 80°H x 50°V Constant Directivity Rotatable Horn
• 6 x M10 suspension points, optional wall bracket mount thread, 35mm (1 3/8”) top-hat
• Speaker stand socket, two aluminium handles
• 45° monitor taper
• Adjustable delay between 0 - 10m

• Power cord: 5m
• Net Dimension (WxHxD): 387 x 665 x 380mm
• Net Weight: 20.6kg
• Transport Dimension (WxHxD): 500 x 765 x 470mm
• Transport Weight: 23.1kg
• Configuration: 2 Way
• Built in amplifier: 900w (700w LF + 200w HF)
• Built in amplifier peak: 1800w (1400w LF + 400w HF)
• Frequency Response: 42Hz - 20kHz -6dB
• Low Frequency Woofer: 12
• High Frequency driver: 1
• Maximum SPL continuous/peak: 126/133dB
• Dispersion (HxV): 80° x 50° rotatable
• Input Impedance: 22kOhm
• AC power requirements: 640VA
• Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
