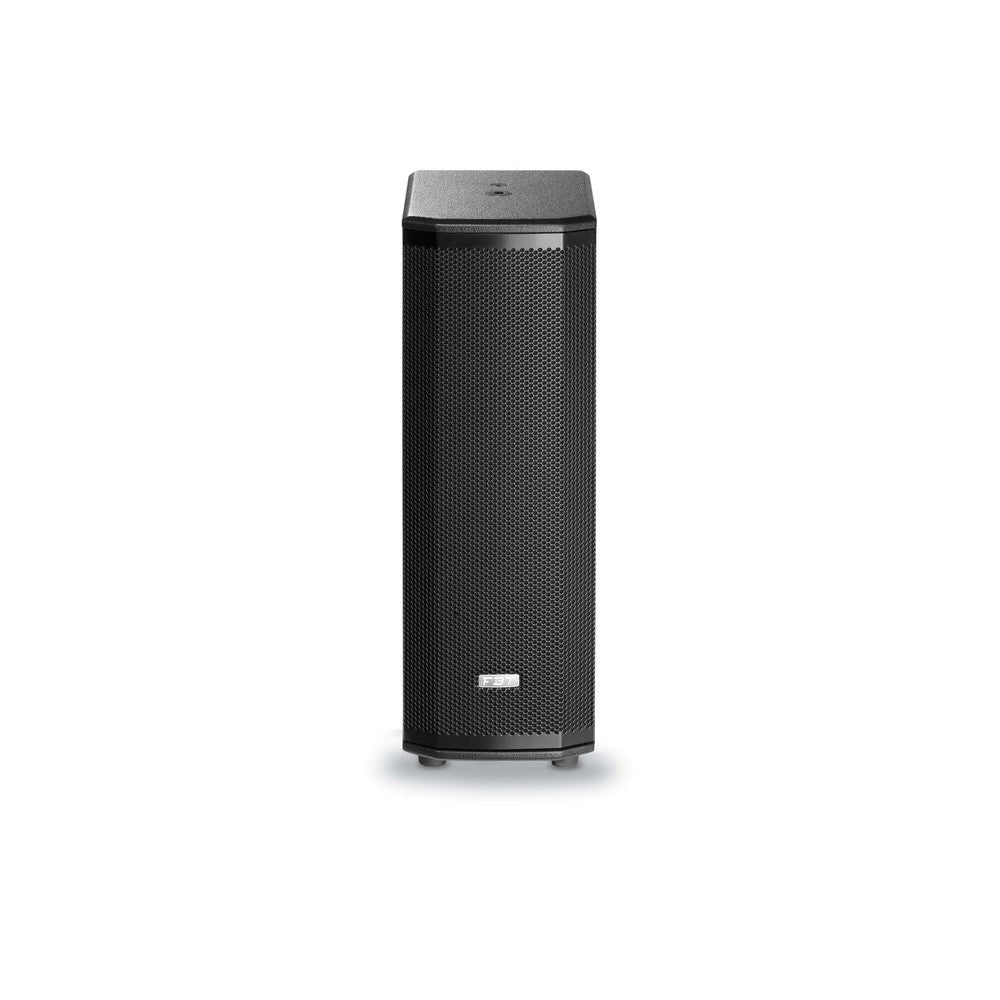

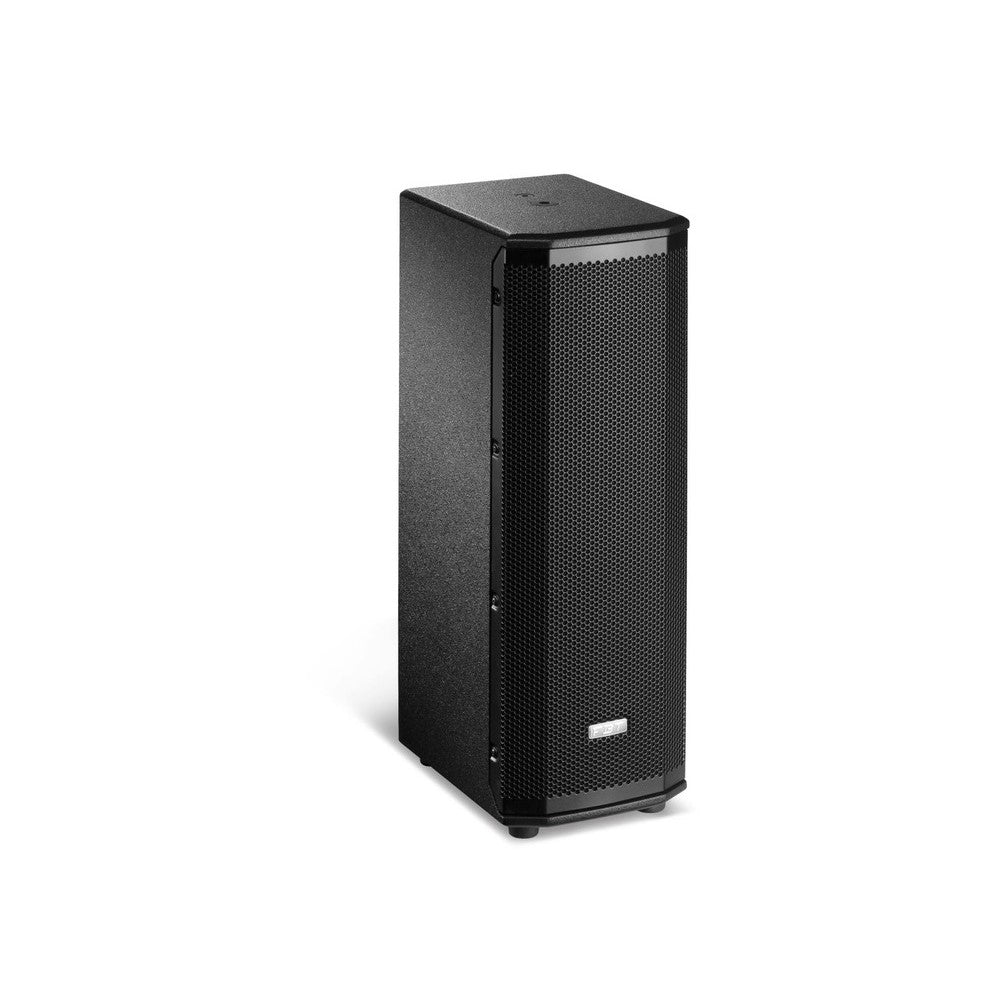

FBT Ventis 206A 900w Active Reinforcement Speaker

The FBT Ventis 206a is a 900w Active speaker with dual 6-inch drivers and 1-inch compression driver, 700 RMS goes to the low-frequency drivers, and 200 RMS goes to the tweeter with an incredible size to SPL ratio and 2-way, bi-amplified bass reflex design.

The Ventis 206a can be used a front fill, as an under-balcony fill or as a main speaker that can provide natural sounding speech and can be accompanied by a subwoofer to provide you with a full frequency range. The Ventis comes with a powerful Digital Signal Processor (DSP) that has six versatile presets that have been made by expert FBT engineers; each preset offers a different performance for every requirement and consists of:

• Original/Live – Gives you the renowned, smooth FBT sound.
• Vocal – A special equaliser setting that maximises speech intelligibility.
• DJ – Designed to give you energetic sound that keeps your audience dancing.
• Touring – Gives you the reliability and roar of the most popular touring systems.
• Loudness – The best preset for listening at a low to medium volume.
• Warm – A setting that emphasises full-bodied low to mid frequencies.

Housed in 12mm scratch-resistant birch plywood, the Ventis 206a is extremely robust and comes with an integrated rear handle as well as a mounting bracket for easy installation thanks to the M10 mounting points and optional U-bracket that can be used for wall mounting; alternatively you can use the 35mm pole mount socket to mount the speaker to a pole. Also comes with a 5 year warranty.

• 2-way, bi-amplified, bass reflex design
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
• 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
• High efficiency switch mode power supply
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
• 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
• Frequency response from 70Hz to 20 kHz
• 70°H x 50°V Constant Directivity Rotatable Horn
• Wall bracket mount thread, 35mm (1 3/8”) top-hat
• One integrated handle
• 12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing

• Power cord: 5m
• Net Dimension (WxHxD): 190 x 560 x 260mm
• Net Weight: 12.3kg
• Transport Dimension (WxHxD): 290 x 660 x 360mm
• Transport Weight: 14.3kg
• Configuration: 2 Way
• Built in amplifier: 900w (700w LF + 200w HF)
• Built in amplifier peak: 1800w (1400w LF + 400w HF)
• Frequency Response: 70Hz - 20kHz -6dB
• Low Frequency Woofer: 2x 6.5
• High Frequency driver: 1
• Maximum SPL continuous/peak: 124/131dB
• Dispersion (HxV): 70° x 50° rotatable
• Input Impedance: 22kOhm
• AC power requirements: 640VA
• Input Connector: XLR/Jack Combo socket with XLR link out, RCA stereo input
