FBT VERTUS CLA604A Active Line Array Column

FBT VERTUS CLA604A Active Line Array Column

Regular price £1,195.00
Regular price Sale price £1,195.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

FBT

View full details

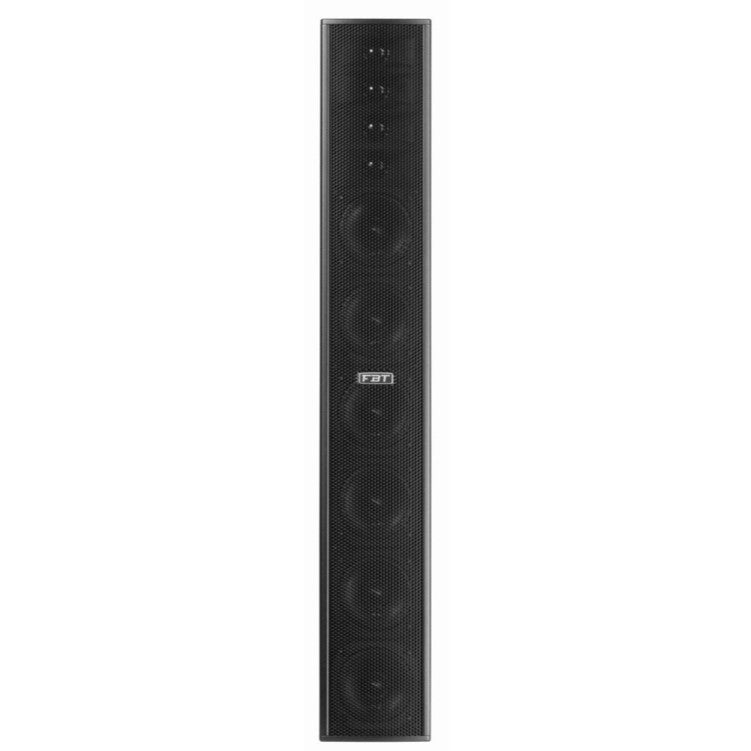

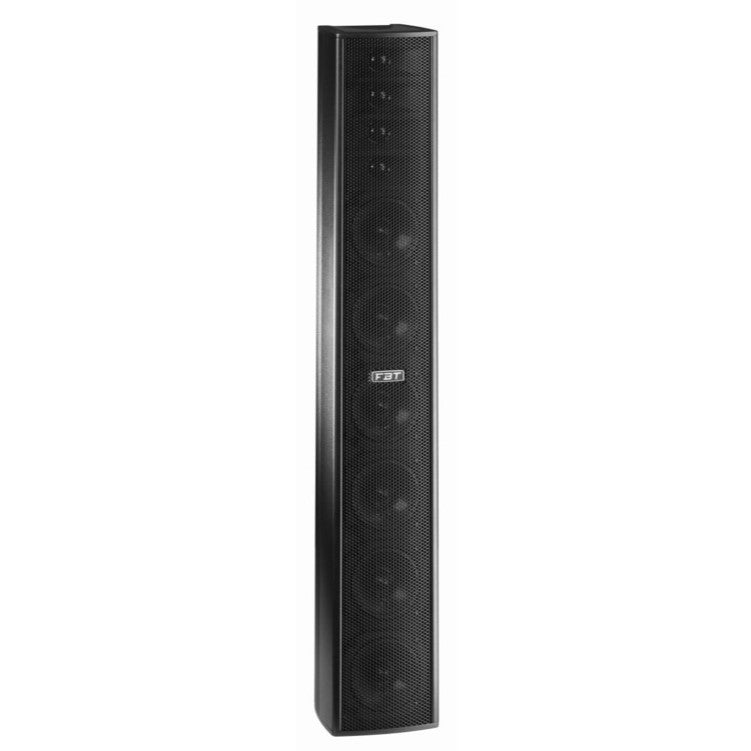

The FBT VERTUS CLA604A is a 2-way bi-amplified Line Array Column speaker, with 6 x 4” (100mm) custom woofer with 1” (25 mm) voice coil and 4 x 1” (25mm) neodymium dome tweeter on waveguide, give a frequency response between 130Hz to 20KHz. The Vertus uses a Class D 400Wrms amplifier for LF and 100Wrms for HF with a switch mode power supply. The Vertus has a DSP processor with 4 EQ presets with a Control panel that includes volume, presets, HP filter, Mic-Line control and a status LED. The Vertus has XLR input and Neutrik POWERCONN supply input at the lower part of the column; XLR link and Neutrik POWERCONN loop output at the higher part, in order to hide each connection cable. The Vertus has 100°H x 20°V dispersion. The speaker is enclosed in Extruded-aluminum powder-coated cabinets. Superior latching system, enables the extension of the length of the line array by adding CLA604A modules for increased modularity of the system giving the Possibility to angle the columns of +/- 30° on a horizontal plane. The speaker Ideal for both live applications, assisted by the CLA 208SA active subwoofer, as well as for fixed installation.

  • 2-Way
  • Bi-Amped
  • 6x 4" Neodymium woofer
  • 4x 1" Neodymium tweeter with horn
  • 400W Class D amplifier for the bass range
  • 100W Class D amplifier for high frequencies
  • Built-in switched mode power supply
  • DSP Processor with 4 equalizer presets
  • Control panel with volume, presets, HP filter, mic/ line, status LED
  • Aluminium housing (deep drawn)
  • Powder coated surface
  • Tripod or wall mountable
  • Frequency range: 130 Hz - 20 kHz
  • Max. SPL: 125 dB
  • 100° x 20°
  • XLR Signal and power twist for power input and output
  • Dimensions: 130 x 841 x 130 mm
  • Weight: 9 kg
  • Configuration: Line Array - 2 Way
  • Frequency response: 130Hz - 20kHz
  • Low frequency woofer: 6x 4" with 1" VC
  • High frequency driver: 4x 1" with 1" VC
  • Maximum SPL cont/peak: 122 / 125db
  • Dispersion: 100 x 20 (H x V)
  • Input impedance: 22kohm
  • Crossover frequency: 2.5kHz
  • Input connector: XLR with link out
  • Net Dimension (WxHxD): 130 x 841 x 130mm
  • Net Weight: 9kg
  • Transport Dimension (WxHxD): 220 x 930 x 220mm
  • Transport Weight: 11.5kg
  • AC Power requirements: 450VA
  • Built-in amplifier LF/HF: 400/100w RMS
  • Built-in amplifier peak LF/HF: 800/200w
  • Power cord: 5m IEC
