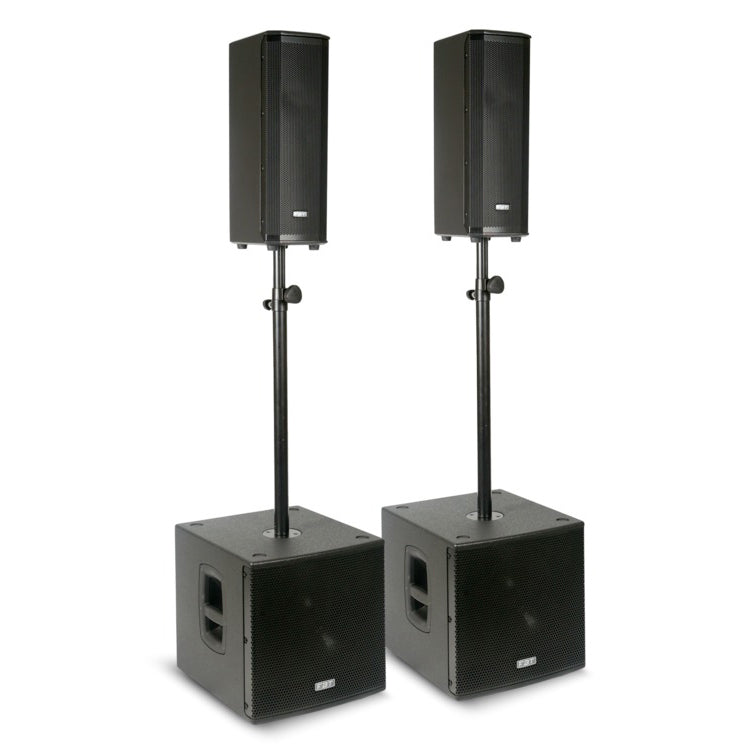

FBT VN 2000 Active PA System Package

Introducing the VN2000, a top-notch mobile PA system featuring two Ventis 206As and two Subline 112SAs, connected by adjustable height poles. This setup offers powerful full-range audio and can be easily reconfigured for different events.

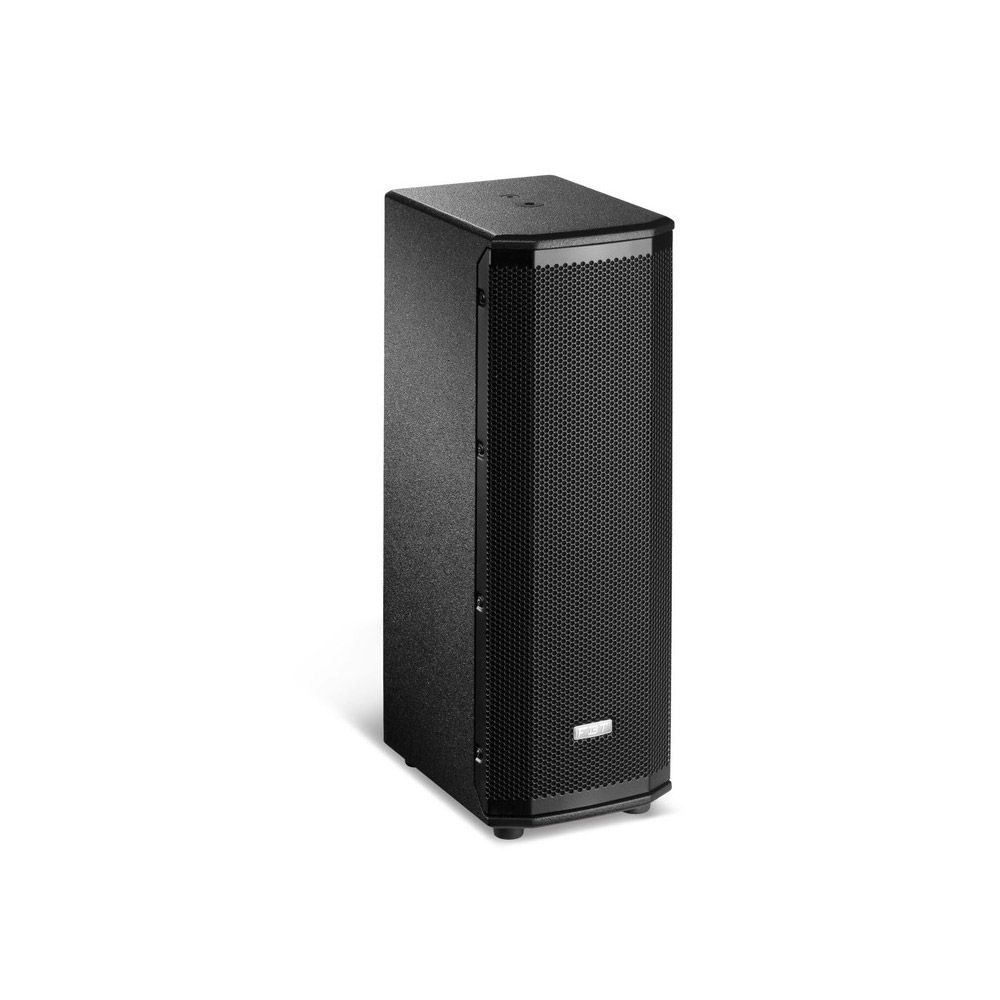

Ventis 206A

This active speaker features dual 6.5-inch woofers and a 1-inch B&C compression driver, designed for optimal sound vertically. Made from durable 15mm birch plywood with a scratch-resistant finish, this product weighs 12kg and features a rear handle for easy transportation. It features multiple M10 suspension points for easy installation and a 35mm top hat for mounting on a sub-pole or tripod.

The powerful amp module delivers 700W RMS for low frequencies and 200W RMS for high frequencies. It uses Class D for low and Class H/AB for high amplification, ensuring clear sound at any volume. Power is supplied via a powerCON TRUE1 connector with an AC loop output.

Versatile inputs include a combi socket for LINE or MIC signals and RCA connections for direct playback. Each input has dedicated level controls, enabling simultaneous use of mic and music without an external mixer. An XLR output allows for audio signal looping.

The built-in DSP, featuring a backlit LCD display and a user-friendly control dial, allows you to adjust the sound with options for delay and a High-Pass filter, making it suitable for a wide range of events.

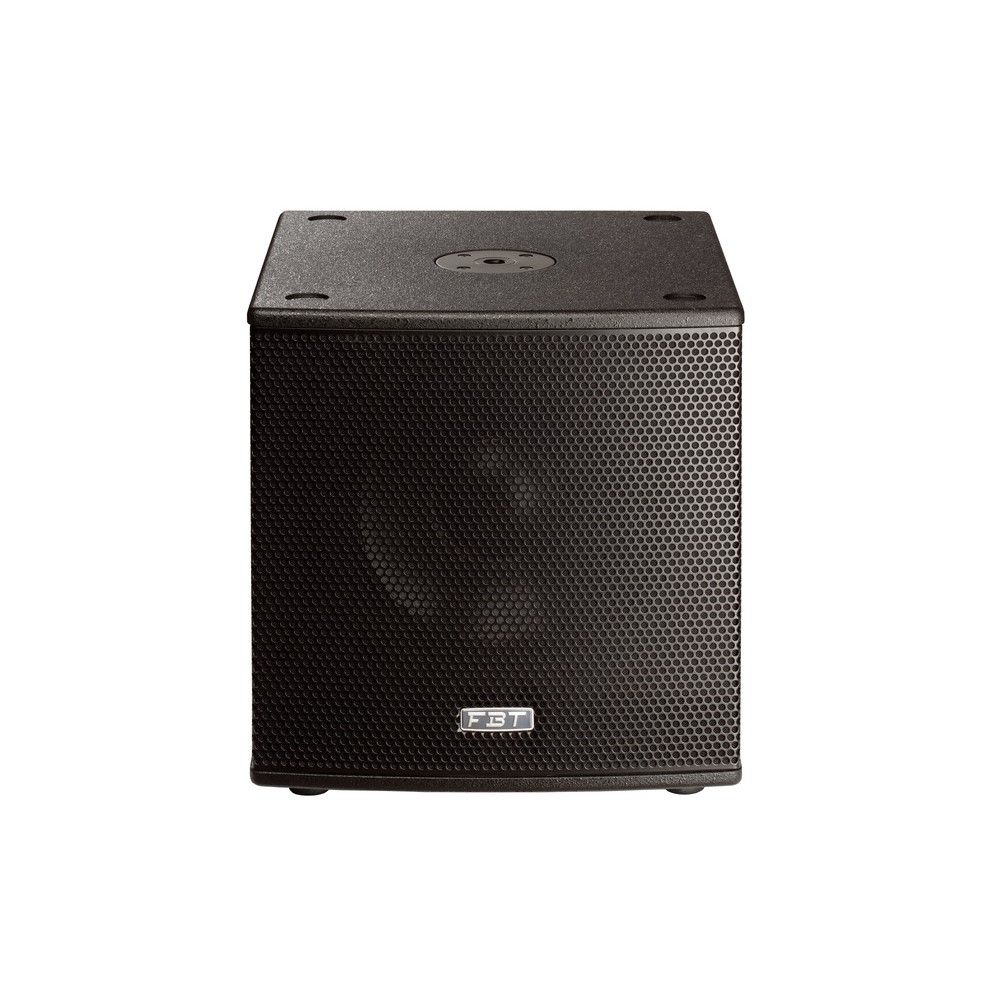

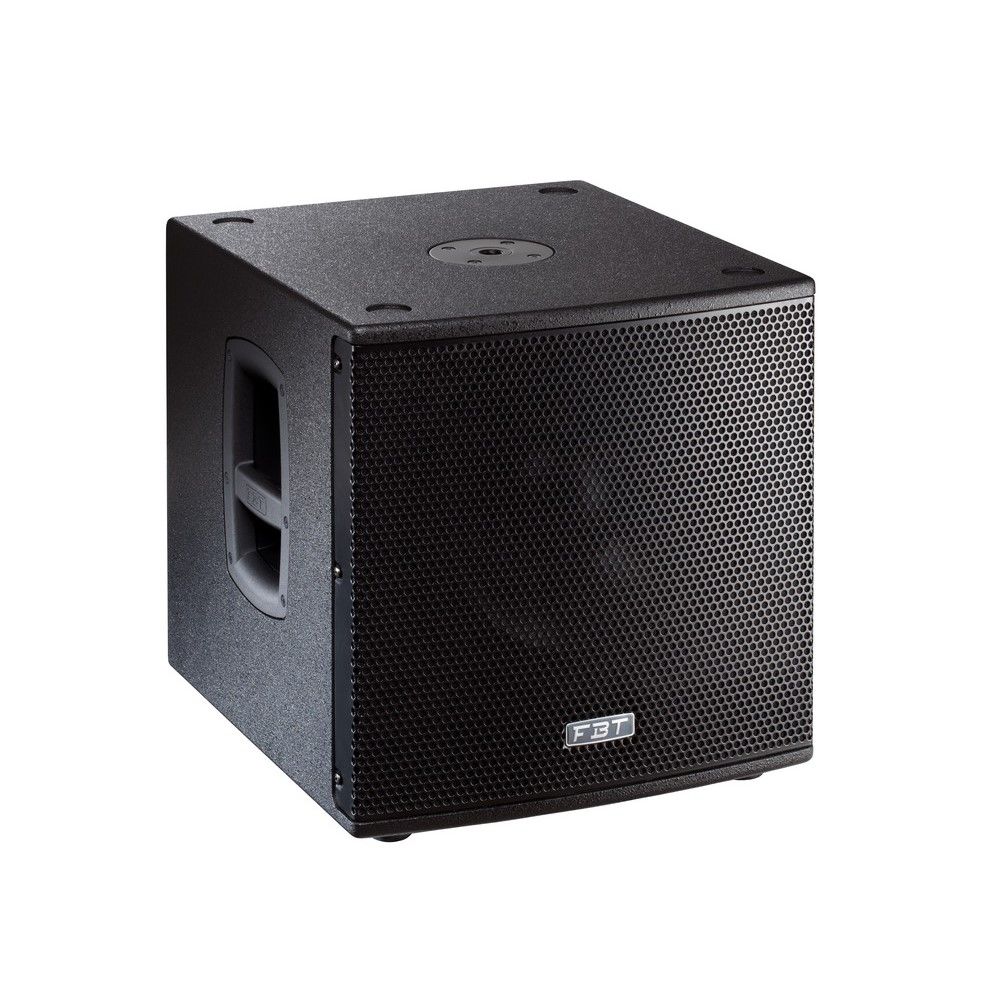

SUBline 112SA

The Subline 112SA features a compact bass-reflex design with a 12-inch woofer and a 2.5-inch coil, providing impressive power and punch. It has a 700W RMS integrated amp and built-in DSP with eight presets and delay control options.

It includes two XLR input sockets and outputs, plus a High-Pass filter switch, allowing configuration for smaller setups. The sub matches the Ventis 206A in aesthetics and is made from birch plywood, weighing only 23kg for easy transport.

Package Contents

• 2 x VENTIS 206A - 2 x 6.5" + 1" Active Speaker (SPLdB 124/131) - 12KG
• 2 x SUBline 112SA - 12" Active Subwoofer (SPL dB 129/133) - 23KG
• 2 x MSA 220BK - Telescopic Poles
• 4 x (2 x VN-C 206A / 2 x SL-C112) Padded Covers

Ventis 206A Key Features

• 2-way, bi-amplified, bass reflex design
• Biamped: 700W RMS LF and 200W RMS HF power amplifiers in Class D for LF and in Class H/AB for HF
• Digital Signal Processor with graphic display
• 15 mm (0.59”) birch plywood scratch resistant enclosure and internal bracing
• High efficiency switch mode power supply
• Control Panel features balanced XLR/Jack input, XLR LINK OUT, 2 x Volume, RCA Stereo input, DSP display with rotative encoder and push
• 2x165mm (6.5”) LF woofer with 38mm (1.5”) voice coil, custom made for FBT
• 25mm (1”) exit throat B&C HF compression driver with 36mm (1.4”) voice coil
• Frequency response from 70Hz to 20 kHz
• 70°H x 50°V Constant Directivity Rotatable Horn
• Wall bracket mount thread, 35mm (1 3/8”) top-hat
• One integrated handle
• 12mm (0.47”) birch plywood scratch resistant enclosure and internal bracing

SUBline 112SA Key Features

• Bass-reflex design with high SPL and punch
• 320mm (12”) high excursion magnet woofer with 75mm (3”) voice coil
• Frequency response from 40Hz to 140Hz
• New amplifier engineered and manufactured by FBT, 700W RMS LF in Class D
• Digital Signal processor with 8 presets, 2 equalization with 2 LPF
• Crossover settings, cardioid configuration

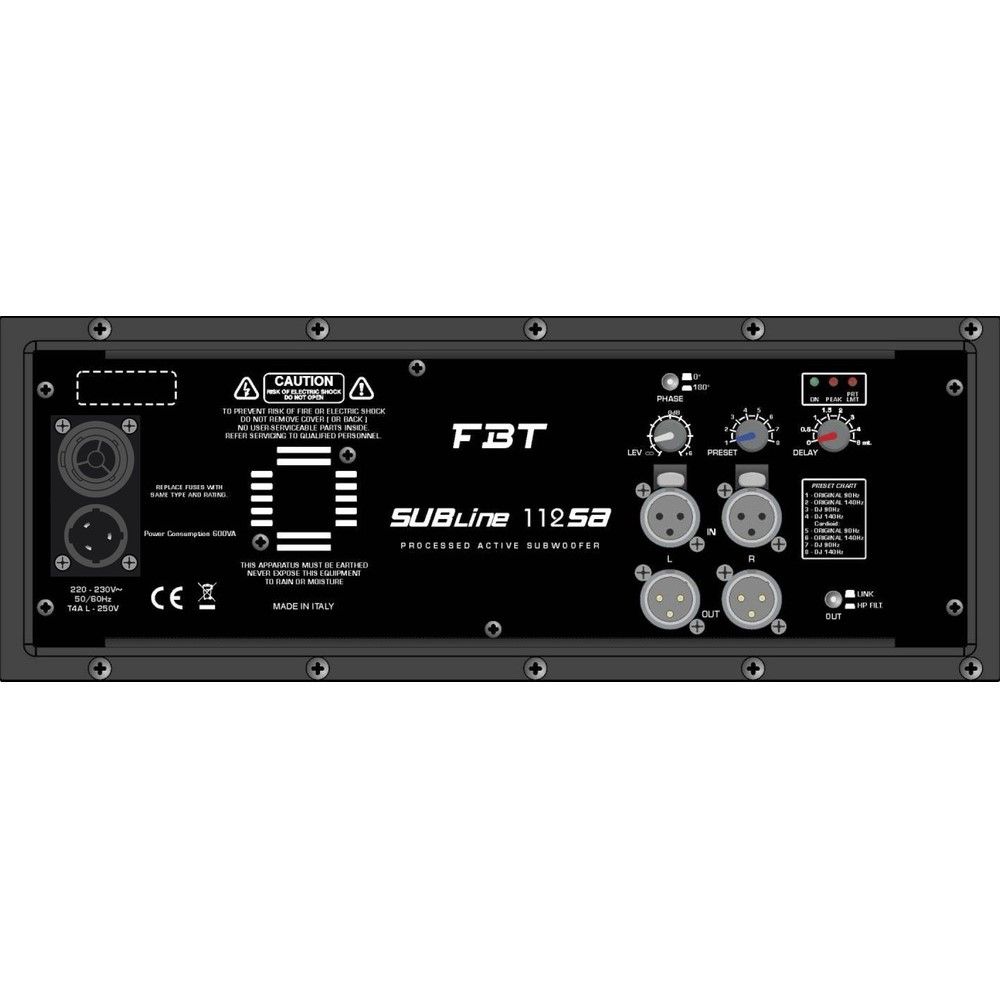

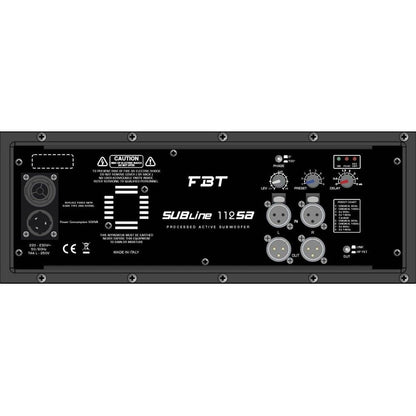

• Control panel with Stereo XLR in/outs, Volume, EQ presets, 8 steps Delay from 0.25m to 3.5m,
• Phase Reversal Switch 0°-180°, 3 status LED indicators
• 15 mm (0.59”) birch plywood scratch resistant enclosure with internal bracing
• M20 (20mm) top mount speaker stand socket and two aluminium ergonomic FBT handles
