JTS Professional E-6 + E-6TB + CM-501 Beltpack Wireless Microphone System

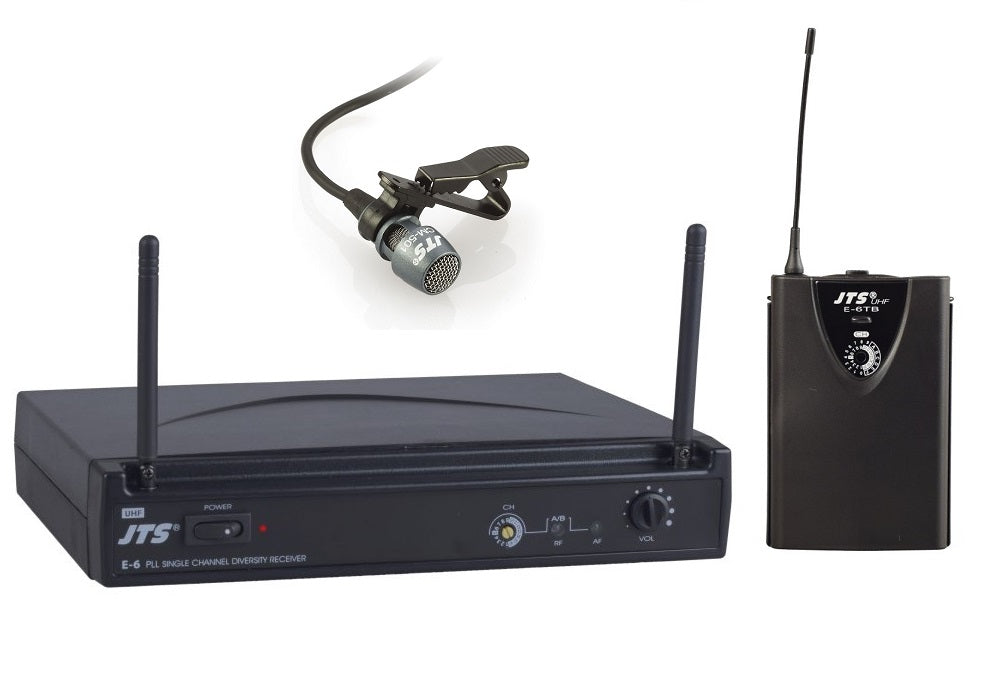

The JTS Professional E-6 + E-6TB + CM-501 complete wireless microphone system has been based on the hugely successful US-8001D and offers an 80-meter working distance alongside 16 selectable channels and, as always, RF and AF performance are guaranteed. This affordable complete microphone set includes an E-6 receiver alongside an E-6TB belt pack transmitter and a CM-501 lapel microphone and is perfect for theatres, schools, live events, presentations and music venues.

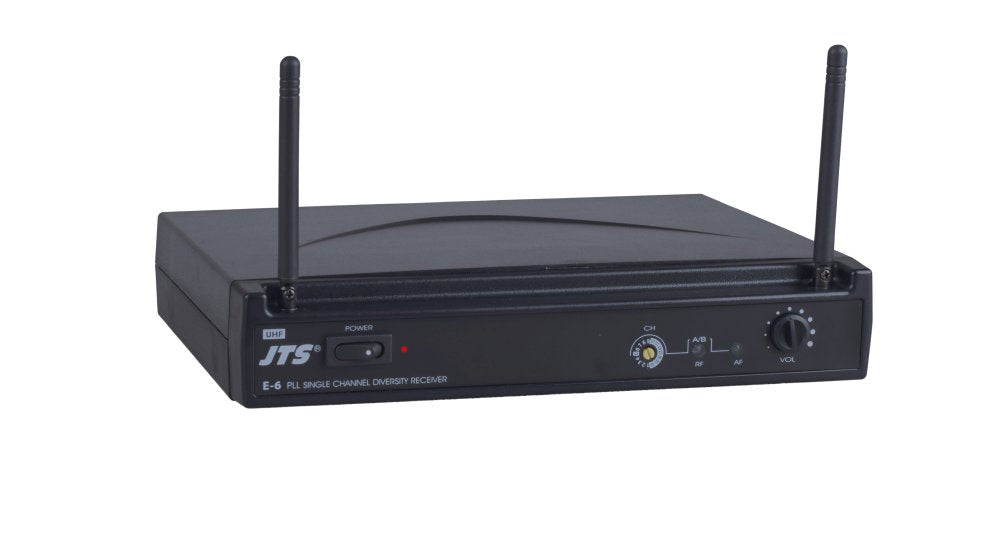

The JTS E-6 is a single channel UHF PLL diversity receiver which comes with 16 selectable preset UHF channels that operate on a carrier frequency of 863 -865 MHz allowing you to connect to a single transmitter with ease. An 80-meter working distance works alongside built-in diversity technology to prevent RF link dropouts; this means you’ll always be connected to the microphone so you can freely walk around while using the system. The E-6 receiver features a tonne of controls which include noise mute and pilot tone controls as well as power on/off and channel select functions and an audio level control so you can get the system working to your exact requirements. The receiver also comes with balanced XLR and unbalanced 6.3mm Jack outputs which let you connect to a wide range of mixers and outboard equipment.

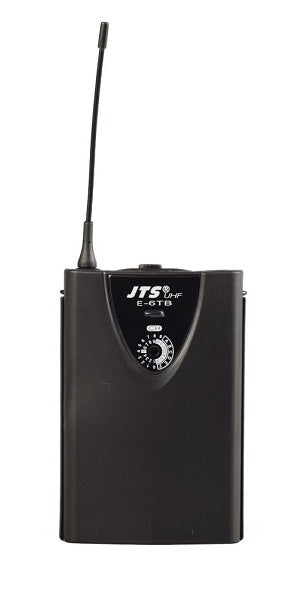

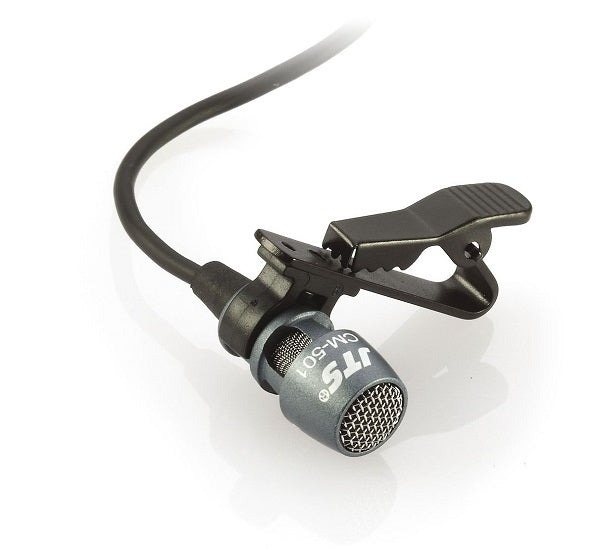

The E-6TB is a UHF bodypack transmitter that is supplied with the CM-501 lavaliere microphone and features a PLL synthesized oscillator type alongside 16 preset selectable channels that operate on a carrier frequency of 863 – 865 MHz. The compact bodypack transmitter comes with a robust, heavy-duty plastic housing which has been built for everyday on-stage use and features an LED display as well as a mini 4P XLR connector and is powered via two AA batteries. The CM-501 lavaliere microphone comes with a smooth frequency response and an extended dynamic range which means you get crystal clear audio every time you use the system.

E-6 Receiver Key Features:

• Preset 16 selectable UHF channels
• Single transmitter operation
• Diversity technology prevents dropouts in the RF link.
• PLL synthesized technology.
• Noise mute and pilot tone squelch.
• Equipped with both XLR balanced and Ø6.3mm unbalanced outputs.
• Compact half rack space design.

E-6TB Beltpack Micrphone Key Features:

• 16 Selectable channels.
• PLL synthesized oscillator type.
• Powered by 2 AA batteries.
• Equipped with 4P Mini XLR connector.
• Compact, heavy duty plastic housing.
• LED display.

E-6 Receiver Technical Specifications:

• Code: 81002
• Net Dimension (WxHxD): 210 x 40 x 171mm
• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency: 863 - 865MHz
• S/N Ratio: >105dB(A)
• T.H.D.: <0.6% @ 1KHz
• Display: LED
• Display Contents: Antenna A/B, RF/AF Status Controls: Power On/Off, Channel Selecting, Audio Level
• Controls: Power On/Off, Channel Selecting, Audio Level
• Audio Output Level: -12dB
• Audio Output Impedance: 600Ω
• Squelch: Pilot Tone & Noise Mute
• Operation Voltage: 12-18 VDC, 150mA
• Output Connector: 1 Balanced XLR socket / 1 Unbalanced Ø6.3mm phone jack

E-6TB Beltpack Microphone Technical Specifications:

• Code: 81004
• Frequency Preparation: PLL Synthesized Control
• Carrier Frequency: 863 - 865MHz
• RF Outputs: 10mW
• Frequency Deviation: ±48KHz
• LED Display: Low Battery, Power On / Off
• Controls: Power On / Off, Channel Selecting
• Output Connector: 4 Pin Mini XLR
• Spurious Emissions: < -60dBc
• Frequency Response: 50Hz - 16kHz
• Battery: 2x 1.5V AA
