JTS UF-20R Receiver and JSS-20 Microphone UHF Wireless System

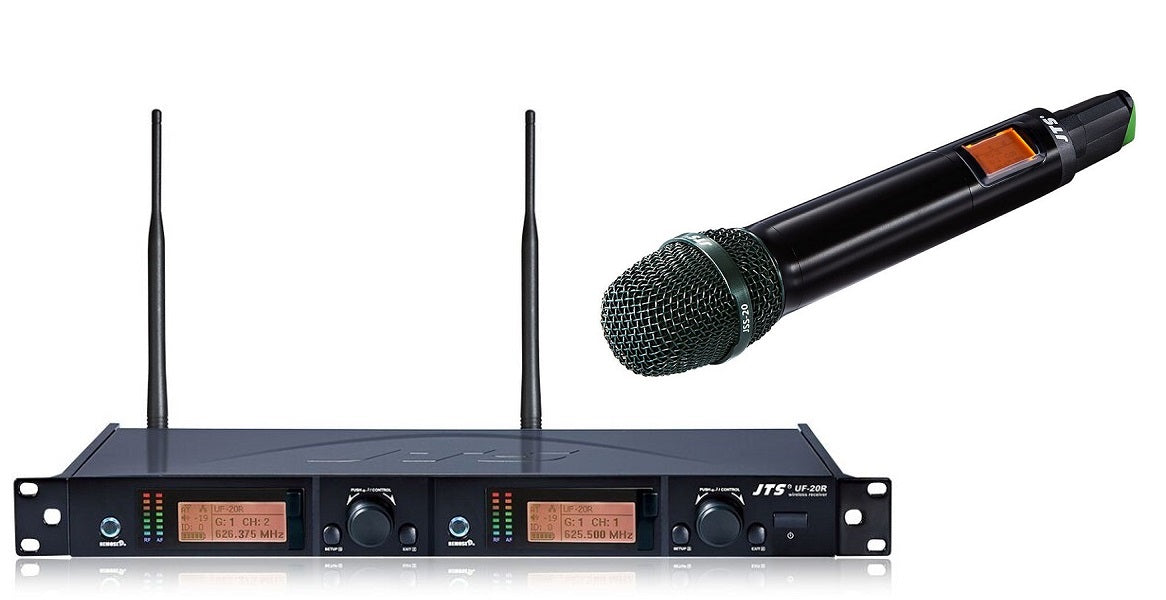

This UHF wireless microphone system by JTS consists of a UF-20R dual channel true diversity wideband receiver as well as a JSS-20 microphone with an integrated transmitter. This wireless microphone system has been designed to give you consistently reliable sonic capabilities and features many professional functions.

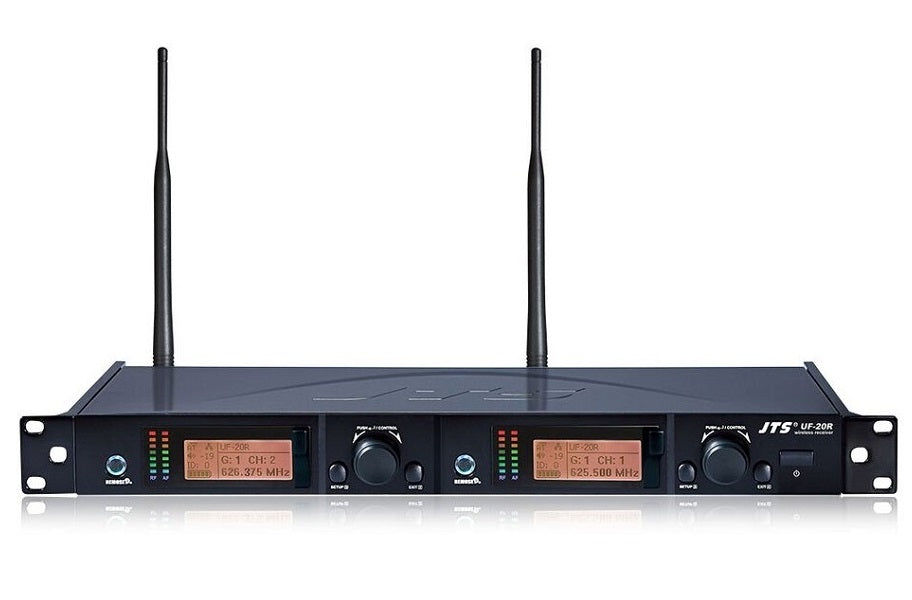

Built to the robust, high-quality JTS standard, the UF-20R comes with an extremely low companding noise, so the audio that passes through the system is crystal clear. The enormous operational distance ranges from 200-480 meters so you won’t accidentally disconnected from the receiver and has a one-touch setup facility for smooth operation. The UF-20R also features Remoset technology that allows you to change transmitter settings from the receiver itself at the touch of a button.

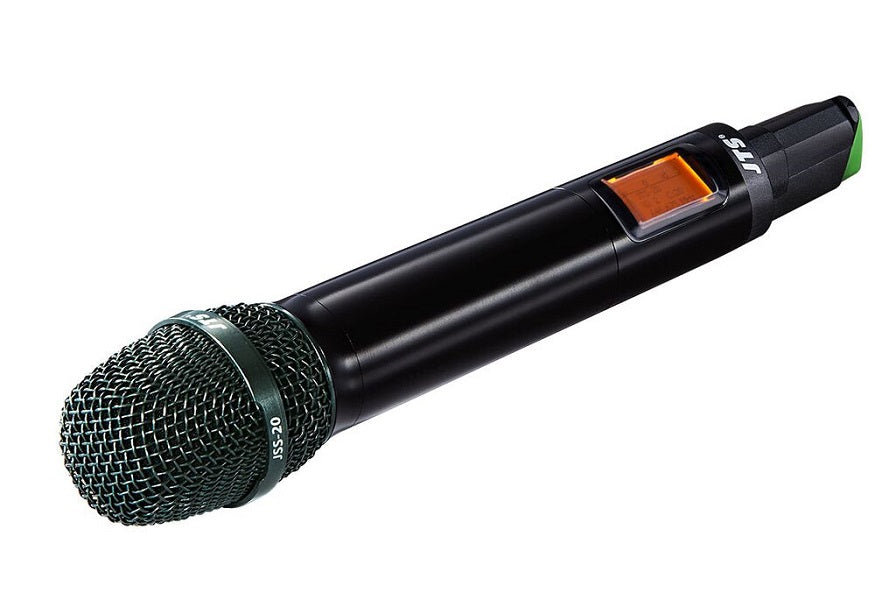

The accompanying microphone is the JSS-20 wireless microphone which features an integrated super wideband transmitter alongside a brand new SAM-8WLN capsule that gives you an excellent acoustic performance with as little touch noise as possible. The capsule can be interchanged so you can use your favourite capsule in the body of the JSS-20 for a truly unique and personal sound. The robust body comes with a sliding cover which stops the performer from accidentally changing the transmitter settings.

UF-20R Receiver Key Features:

• UHF True diversity technology renders 200-480 meters of operation distance
• Maximum 2400 to 3000 selectable frequencies across 60 to 75 MHz
• Preset 15 groups each of up to 63 compatible channels
• User programmable 6 groups each of 64 channels
• Free space scan function
• JTS Patented obstacle-free RF function synchronizes a transmitter by pushing a button
• JTS LCX circuit design technology minimizes Companding noise
• REMOSET - This now not only sends the frequency data but also the transmitter’s RF power, sensitivity, low cut, key lock and user's name.
• RF “NO SIGNAL” alert function.
• AF “MUTE” alert function.
• Transmitter “LOW BATTERY” alert function.
• Built in equalizer

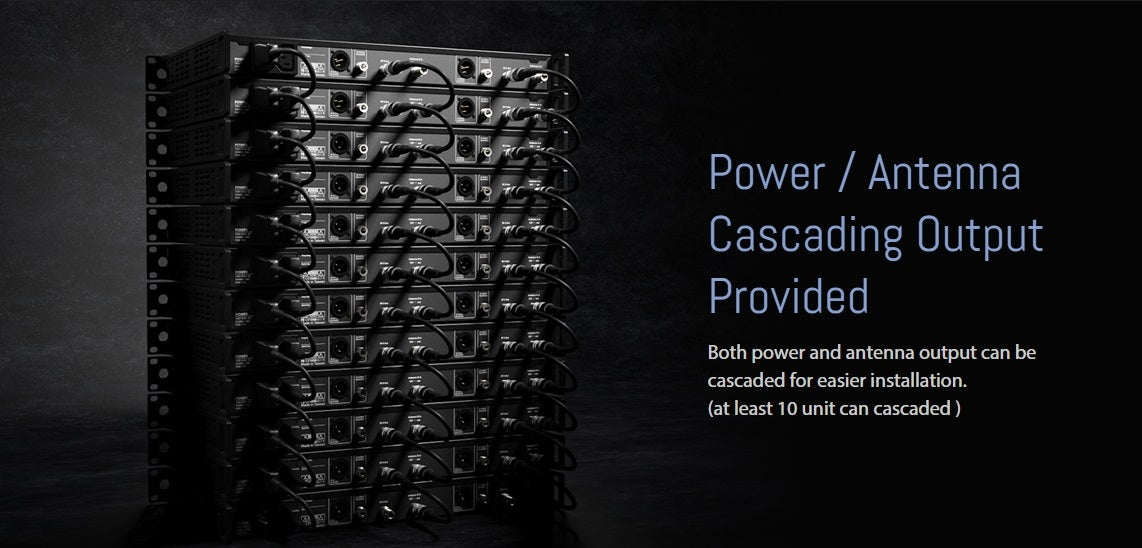

• Power / Antenna cascading output provided.


JSS-20 Microphone Key Features:

• 2400 to 3000 selectable frequencies
• Preset 15 groups each of up to 63 compatible channels
• Phase-Locked Loop (PLL) synthesized tune
• Adjustable transmission power between Low and High
• Low cut function.
• JTS newest development SAM-8WLN capsule assures outstanding acoustic performance while minimizes touching noise.
• Interchangeable capsule design for various choices including some classic capsule modules.
• It is designed with slot-in charging feature with two AA NiMH rechargeable batteries.

UF-20R Receiver Technical Specifications:

• Code: 81244
• Diversity Wireless: True Diversity
• Frequency: 606-681MHz
• Bandwidth: 75Mhz Super wideband
• RF In/Outs: 2x Inputs / 2x Outputs
• Power In/Outs: IEC In & Out

JSS-20 Microphone Technical Specifications:

• Net Weight: 350g
• Bandwidth: 60-75Mhz Wideband
• Carrier Frequency: UHF 606 - 681MHz
• Frequency Preparation: PLL Synthesized Control
• RF Outputs: High/Low Option
• Stability: <10KHz
• Frequency Deviation: 48KHz (Peak)
• LCD Display: Group, Channel, Frequency, Battery Status, User Name, GAIN Adjust
• Controls: Power ON / OFF, AF Level, Frequency (Up / Down), Lock-on Mode, REMOSET ID Pairing, RF Output Adjust
• Freq. Response: 50Hz - 18kHz
• Battery: 2x AA
