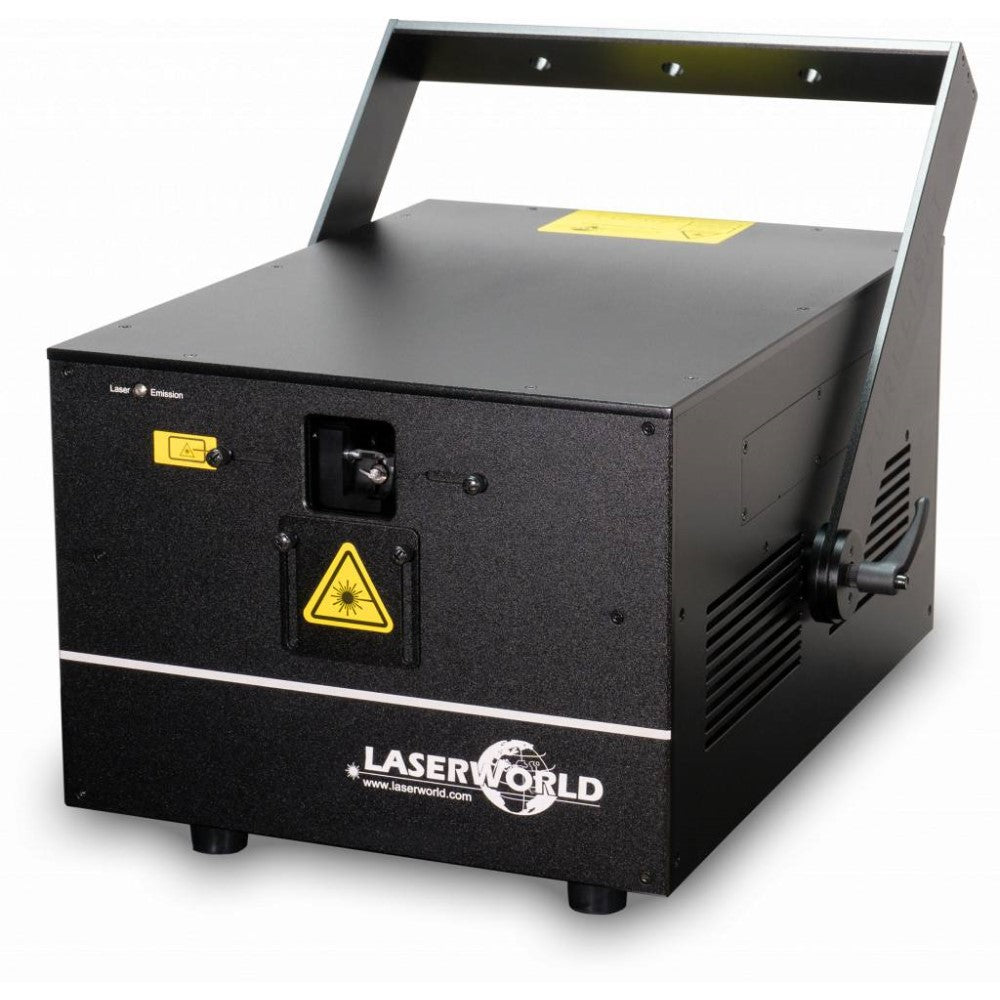

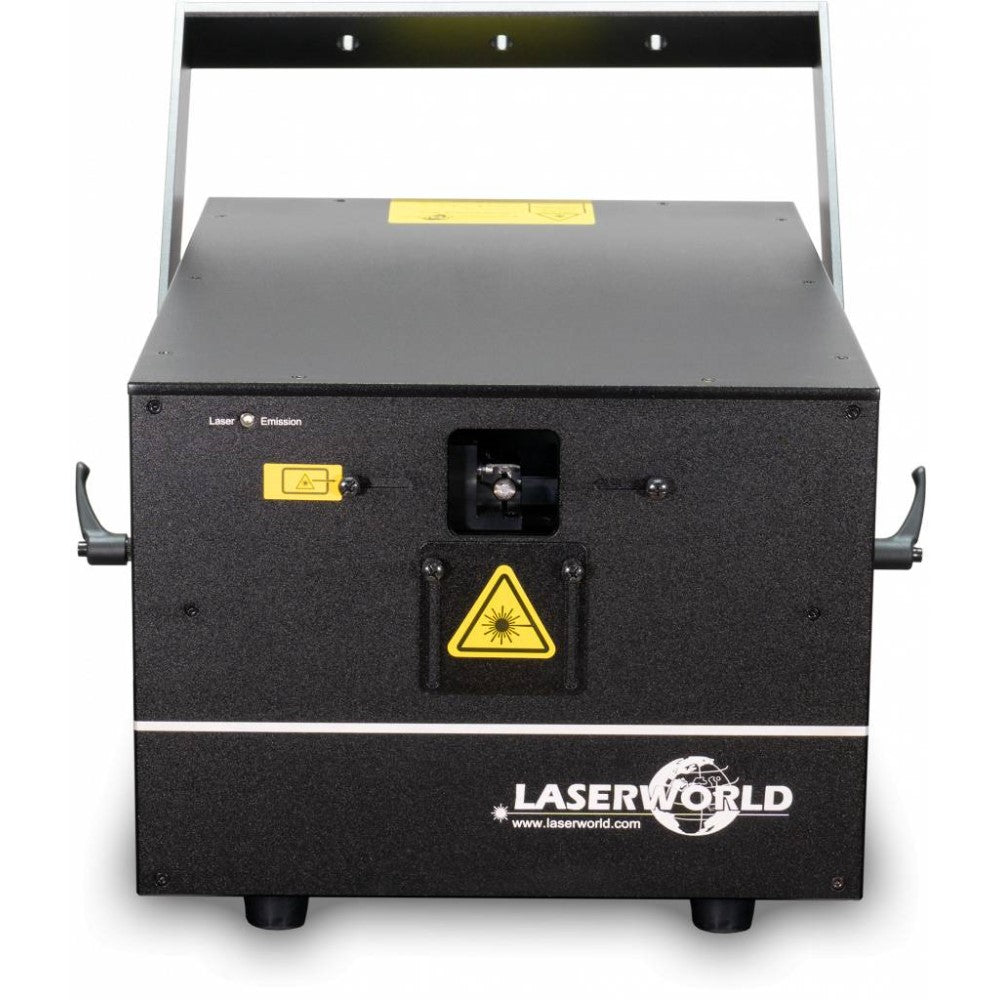

Laserworld PL-20.000RGB MK3 Purelight Laser

Laserworld PL-20.000RGB MK3 Purelight Laser

Regular price £6,081.00
Regular price Sale price £6,081.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

Laser World

View full details

The Laserworld PL-20.000 MK3 is a high-performing, premium show laser light that is equipped with red, green and blue laser diodes with great white balance as well as linear colour fading behaviour and highly vibrant beams of light. This state-of-the-art laser can be controlled via ILDA and is also capable of displaying simple graphics.

The Laserworld PL-20.000RGB MK3 has a beam divergence of 1.0 mrad with a beam diameter of roughly 6.5mm. The guaranteed output power of the Laserworld is 20,000mW with 6,000mW for the red diode operating at 638nm, 8,000mW for the green diode operating at 520nm and 8,000mW for the blue diode operating at 450nm. Inside the unit fast scanners work at a speed of 40 kpps @ 8° ILDA and give you a maximum scan angle of 50°. The PL-20.000RGB MK3 is a powerful solution for high-power demanding laser applications and is perfect for large nightclubs, concerts, festivals and big events, providing long distance laser shows and basic graphic projections.

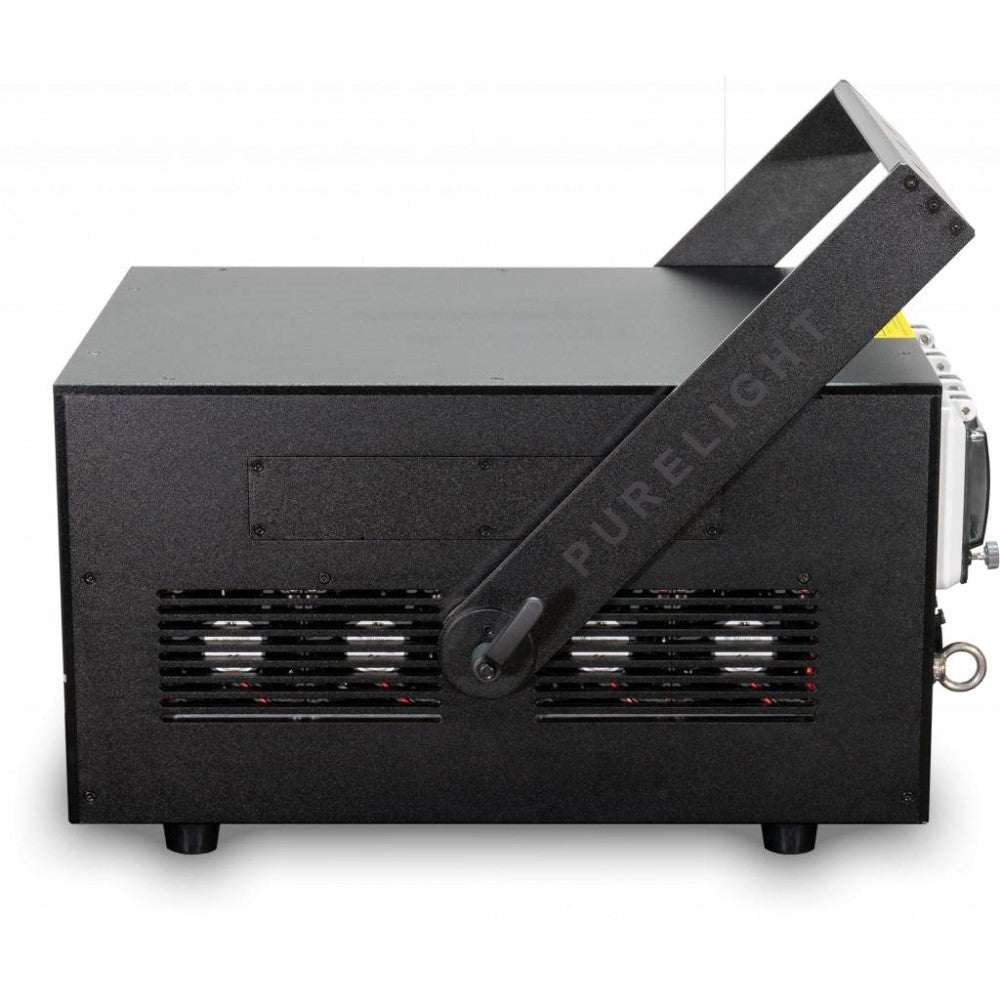

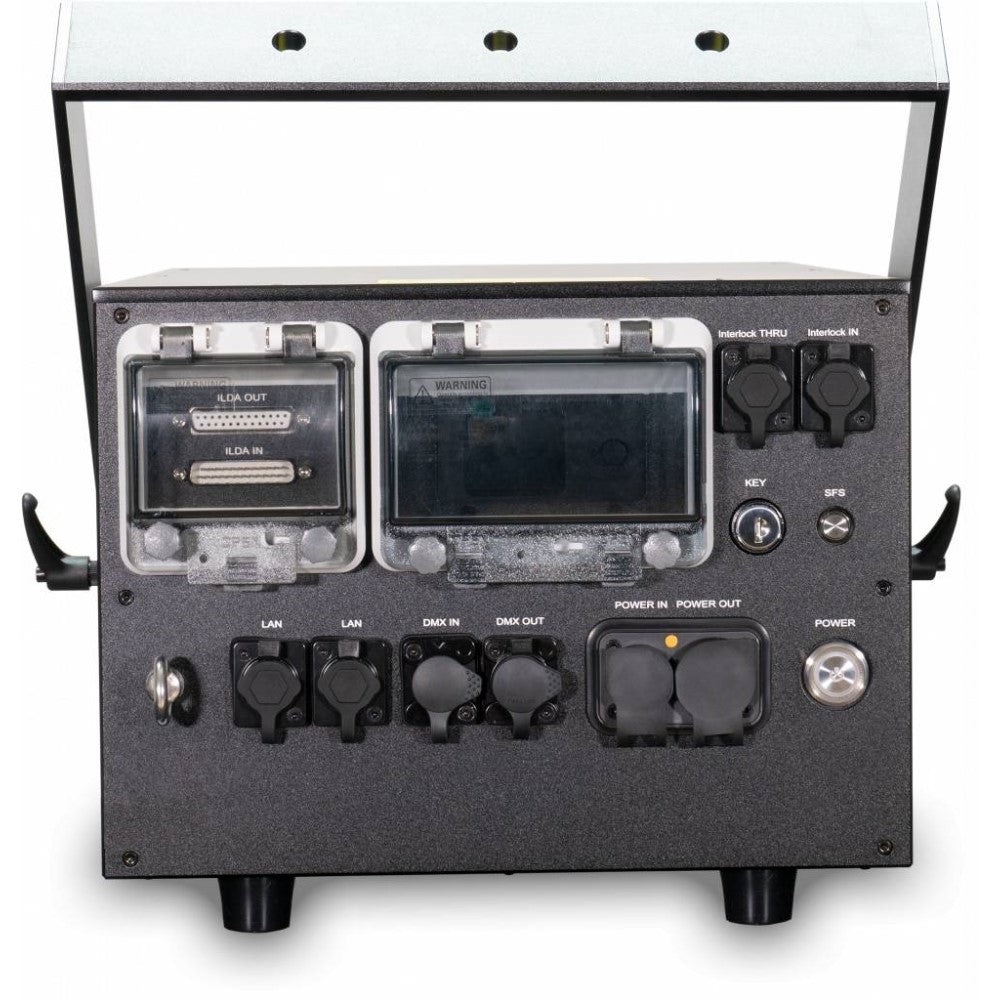

The laser projector is built with Sealed Housing Technology and is cooled through external cooling fins; this keeps the laser cool during peak use and also means the maintenance effort is kept very low. The rear of the premium PL-20.000 MK3 laser features trim pots for colour settings allowing you to quickly adjust the colour balance if required as well as trim pots for the X/Y axis’ offset. Additionally the Scan Safety features can be found on the rear of the unit.

  • 20'000 mW guaranteed power
  • Graphics capable - 40kpps @ 8° ILDA
  • Max scan angle 50°
  • Full-colour mixing - analogue modulation
  • Sharp intense beams – ca. 6.5 mm beam diameter and low divergence of 1.0 mrad
  • IP54 waterproof housing
  • Save safety settings direct to the laser and they apply in all modes
  • Link multiple units with linking Power, DMX and ILDA
  • Free computer control software – Showeditor - upgradable to Showcontroller
  • Multiple control modes - Auto, DMX, Artnet and ILDA
  • Incl. waterproof flightcase
  • Guaranteed Power at aperture: 20'000 mW
  • Power Red: 6'000 mW / 638 nm
  • Power Green: 8'000 mW / 520 nm
  • Power Blue: 8'000 mW / 450 nm
  • Beam Specifications: ca. 6.5 mm / 1.0 mrad
  • Scanner: 35kpps @ 8° ILDA
  • Max. Scan Angle: 50°
  • Laser Source: Diode
  • Laser Class: 4
  • Operation Modes: ILDA, DMX, LAN, ArtNet, ILDA streaming, integrated SD card, stand-alone, master-slave
  • Basic Patterns: over 120 (layers, tunnels, fences, waves, etc.)
  • Accessories: Incl. waterproof flightcase, key, power cable, manual; full version Showeditor software license included
  • IP rating: IP54
  • Power Supply: 85 V - 250 V / AC, 50/60 Hz
  • Power Consumption: 750 W
  • Dimensions: 440 x 312 x 225 mm (L x W x H)
  • Weight: 27 kg
