M-Audio BX8 D3 Powered Studio Reference Monitor

Introducing the M-Audio BX8-D3 Powered Studio Reference Monitors, featuring military grade Kevlar woofers as well as a superior quality performance for a monitor within this price range.

The BX8-D3 have been manufactured with treated silk dome tweeters which help to make this lightweight yet durable enough to combat against unwanted resonance that more common speakers suffer from. This helps to refine your speakers for even more sonic accuracy which is vital for producers and engineers that mixdown to high standards.

M-Audio's BX8-D3 comes with two Class A/B internal amplifiers that drive power to tweeter and woofer which each have been refined to handle specific frequency ranges. Combine this with a precision-tuned crossover helps to provide a balanced representation of the frequency spectrum.

Also, the BX8 monitor speakers feature incredible connectivity capabilities, with balanced XLR and 1/4 inch inputs on the rear, meaning these speakers can connect to virtually any setup via a soundcard or a mixer. The size of these monitors ensure you receive a sufficient amount of low-frequency response so you can refine and tweak bass to your taste.

Key Features

• Bi-amplified design with 150 watts (80 LF, 70 HF) for powerful, accurate sound
• 8” Kevlar low-frequency driver with high-temp voice coil and damped rubber surround
• 1.25” natural silk dome tweeter delivers superb transient details
• Computer-optimized tweeter waveguide for precise imaging
• Acoustic Space Control to fine-tune low-end response to your room
• Optimized rear port for extended low-frequency response
• XLR balanced and 1/4” balanced/unbalanced inputs for connecting audio interfaces, mixers, synthesizers DJ gear, and more
• Volume control enables you to dial in the perfect monitor playback level
• Wide range 37-22kHz frequency response covers full musical spectrum
• Front panel LED shines brightly when speaker is positioned at ideal monitor angle

Type - 2-way near-field studio reference monitors
Low Freq. Driver - 8 inch (203 mm) Kevlar curved cone with high temperature voice coil and damped rubber surround, magnetically shielded
High Freq. Driver - 1.25 inch (32mm) magnetically shielded natural silk dome
Frequency Response - 37Hz – 22kHz
Crossover Frequency - 1.9kHz
Low Freq. Amplifier Power - 85W
High Freq. Amplifier Power - 75W
Maximum Peak SPL - 110dB
Input Sensitivity - 85mV pink noise input produces 96dBA output SPL at 1 meter with volume control at maximum

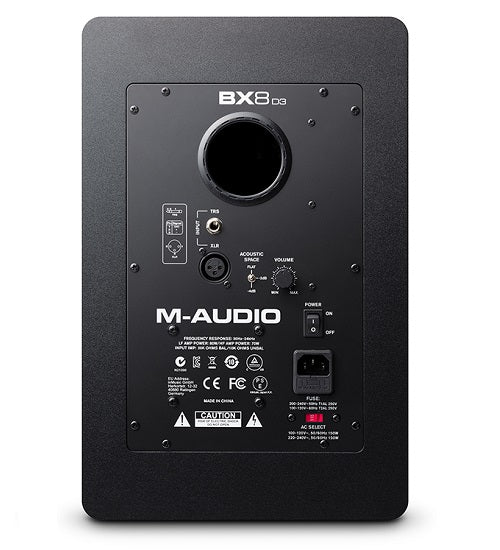

Input Connectors - 1x XLR balanced input connector / 1x TRS balanced/unbalanced input connector
Input Impedance - 10kΩ balanced, 20kΩ unbalanced
Polarity - Positive signal at + input produce outward LF cone displacement
Protection - RF interference, output current limiting, over temperature, turn on/off transient, subsonic filter, external mains fuse

Power:
Voltage - 100–120V, 50/60 Hz / 220–240V, 50/60 Hz
Consumption - 150W

Fuse - 220–240V~ T1AL, 250V / 100–120V~ T2AL, 250V
Cabinet - Vinyl-laminated high-acoustic-efficiency MDF
Dimensions - (width x depth x height) 9.8” x 11.9” x 15.1” / 250 x 302 x 384 mm
Weight - 23.1 lb / 10.5 kg
