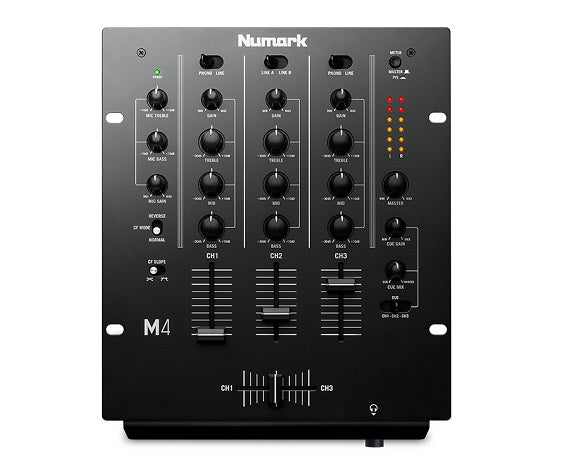

The Numark M4 is a three-channel mixer which has been designed for the DJ, who needs maximum flexibility. This mixer firstly features a crossfader that has slope and reverse controls to cater for the scratch DJ. Also, the fader is replaceable. The M4 has an impressive selection of inputs with two switchable phono/line inputs in addition to four dedicated line inputs giving you a total of six inputs. The mixer also has record and master outputs and steep three-band EQ with rotary kills on each channel. Another great feature is the 1/4" microphone input that also has a dedicated EQ to make this a very versatile mixer.
The M4 versatility with the inputs, features and all the controls turn a problem for a regular mixer into a simple plug-in so that you won't get stuck without enough inputs you need for your next gig.
Inputs:
Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
Phono: 47k ohm input impedance; 1.3mV RMS sensitivity @ 1kHz for 0dB output
Outputs:
Line: 7V RMS max
Headphone: 0.5W into 47ohm
Signal to Noise Ratio (maximum output JIS-A weighted):
Line: Better than 100dB
Mic: Better than 95dB
Phono: Better than 85dB
Distortion: Less than 0.05%
Frequency response:
Line: 20 – 20,000 Hz ±0.5dB
Mic: 20 – 15,000 Hz ±0.5dB
Phono: ±1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback
Channel Equalizer:
Bass: +12 / -35dB at 20 Hz
Mid: +12 / -25dB at 1.3 kHz
Treble: +12 / -20dB at 15 kHz
Channel fader kill: Better than 90dB at 1 kHz
Crossfader kill: Better than 75dB
Crosstalk: Better than 80dB at 1 kHz
