Ortofon DJ Concorde Digital MKII Turntable Cartridge Twin Pack

The Ortofon Concorde Digital MKII Cartridge Twin Pack provides you with a pair of Concorde Digital MKII Cartridges which are specially designed to extend the lifetime of timecode vinyl while working to minimise errors in decoding.

The Digital MKII Cartridges provides you with an optimal output voltage and sound quality; the 10mV output voltage maximises the signal-to-noise ratio of the audio being fed into your software which results in a better interpretation of the timecoded signal. This cartridge also works to decrease the reproduction of frequencies which vinyl wear and crackles appear, this then minimises errors in the analysis of your timecoded signal and helps your timecode vinyl stay fresher for longer.

• Concorde Digital is designed to extend the life of timecode vinyl and minimize errors in decoding
• At the same time DIGITAL provides optimal output voltage and sound quality for use with conventional vinyl.
• This optimized 10 mV output voltage maximizes the signal-to-noise ratio of the audio being fed to the software, which results in better interpretation of the timecode signal.
• Furthermore, a decrease in the reproduction of frequencies where vinyl wear & crackle occur helps to minimize errors in the interpretation of the timecode signal and helps timecoded vinyl records last longer.

• Output voltage at 1000Hz, 5cm/sec.: 10 mV
• Channel balance at 1kHz: 1 dB
• Channel separation at 1kHz: 22 dB
• Channel separation at 15 kHz: 15 dB
• Frequency range at -3dB: 20-18.000 Hz
• Tracking ability at 315 Hz at recommmended tracking force: 100 μm
• Compliance, dynamic lateral: 14 μm/m N
• Stylus type: Spherical R 18 μm
• Tracking force range: 3 - 5 g
• Tracking force recommended: 4 g
• Cartridge weight: 18,5 g

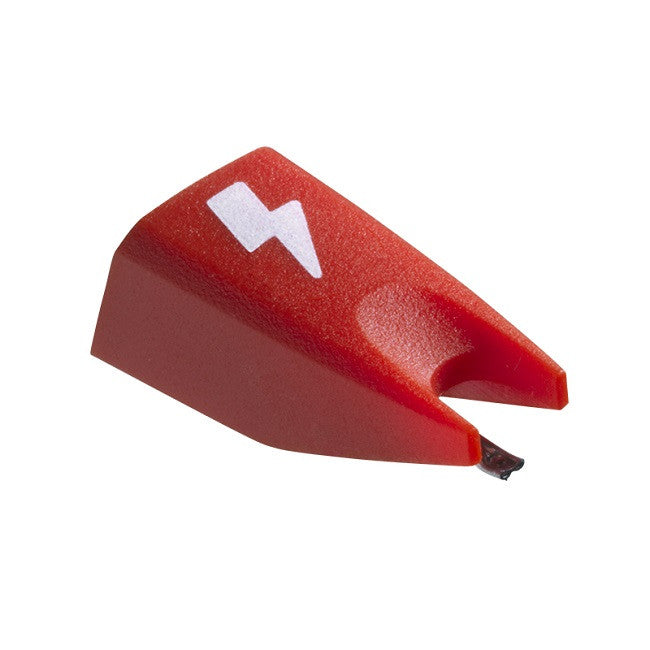

• Replacement stylus unit: DIGITAL
