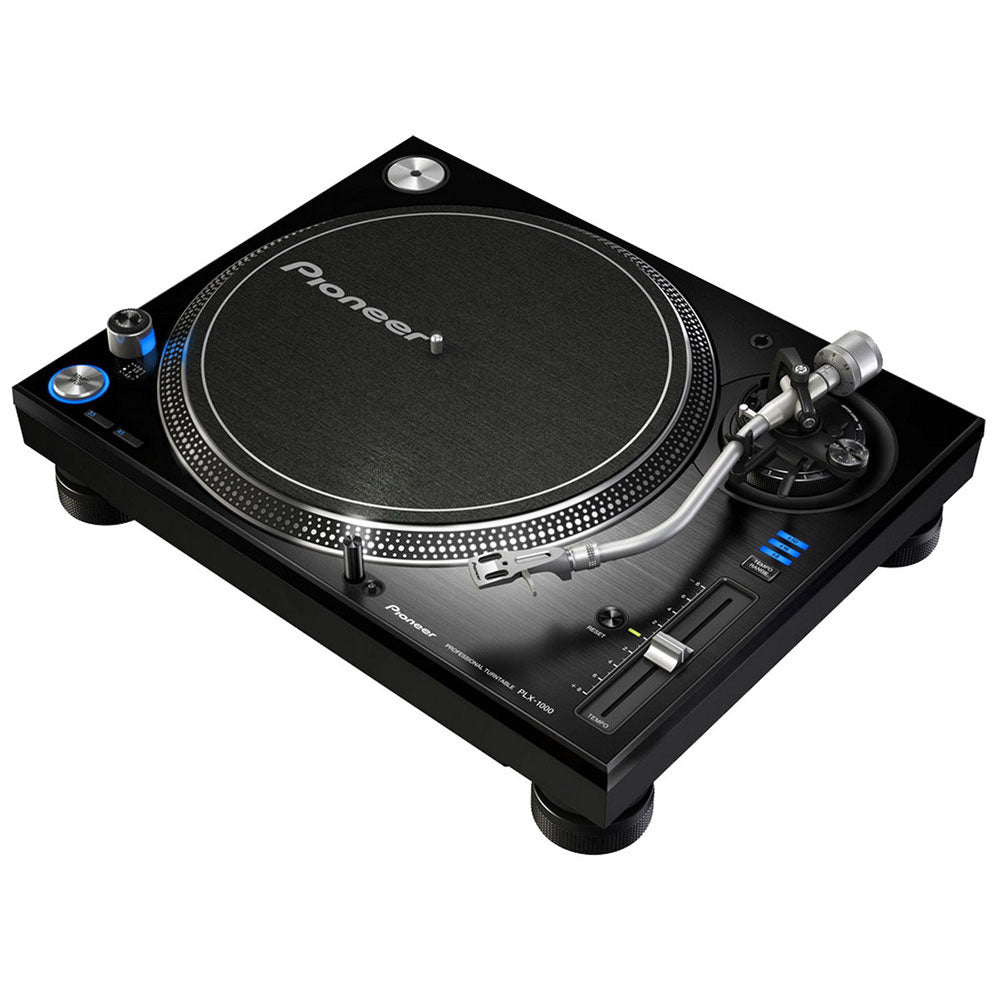

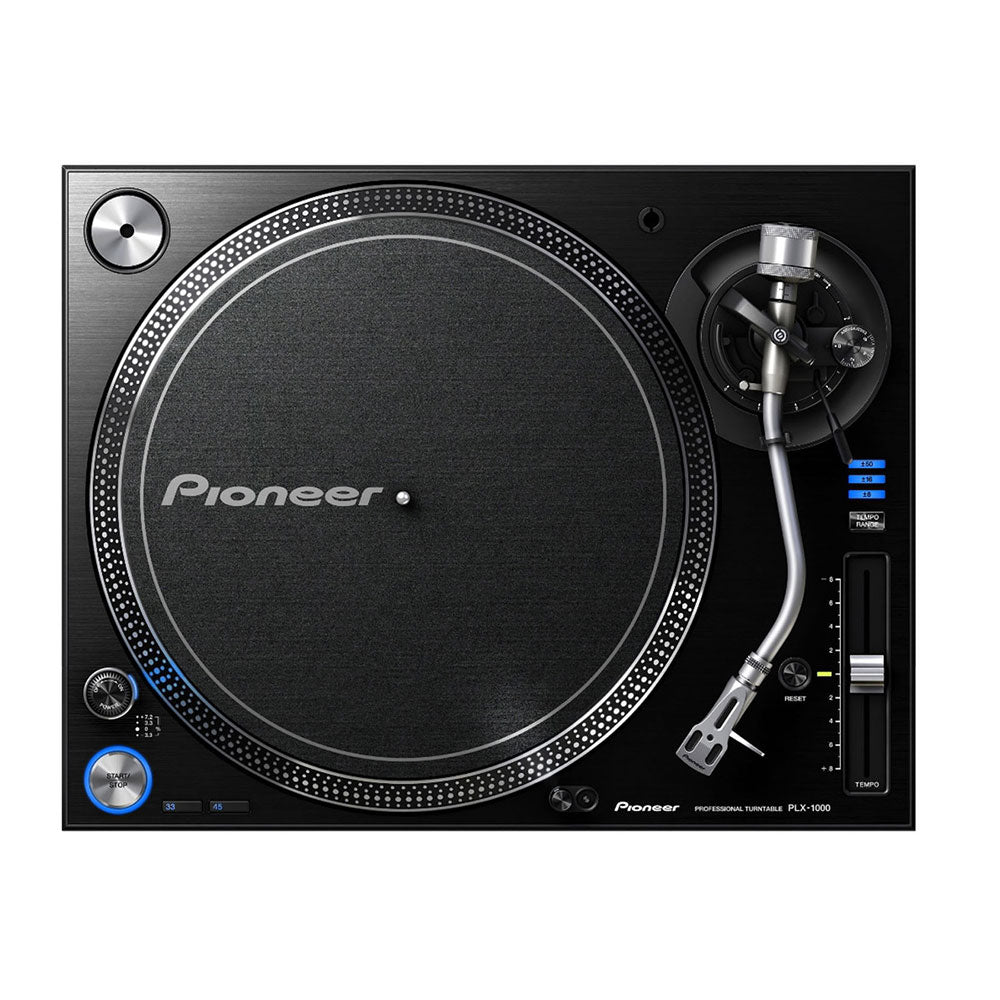

Pioneer DJ PLX-1000 high-torque direct drive professional turntable. To mark 20 years in the DJ industry, Pioneer have designed and released an up-to-date, traditional turntable, the PLX-1000. It is the modern professional turntable that retains the well-known layout with the addition of some latest modifications. These included a high-torque direct drive system and multi-pitch control, all encased within a sturdy club-standard shell. The turntable includes the latest technology to produce the top-quality sound output we have come to expect from Pioneer products. The system also comprises of detachable audio and power cables.
| Pioneer PLX-1000 video introduction |
High-torque direct drive system
The high-torque direct drive system installed within the PLX-1000 turntable is sturdy, hard-wearing and offers stable rotation. A direct drive is a system that connects the motor and turntable directly. The turntable can provide a starting torque (strength of rotational force) of 4.5kg.cm minimum and can achieve a fixed rotation speed of 33⅓ rpm in 0.3 seconds.
Top-quality sound output (analogue vinyl)
Pioneer have designed the PLX-1000 to produce high-quality, analogue vinyl, sound output just as you would expect from a Pioneer product. To start, rubber tubing has been fitted inside the S-shaped tonearm to reduce howling, improve isolation and prevent feedback. The turntable has vibration reducing properties in the form of a heavy die-cast zinc casing, 8mm thick resin lower section and a 9mm thick, vibration-dampening material, base. The PLX-1000 sound quality is enhanced by the directly transmitted phono signal with stable plugs and the gold plated RCA jacks.
Tempo control with variable width
The variable width of tempo has the capability of being modified by selecting from three levels: ±8%, ±16% and ±50%. There is also a ‘Reset’ button on the turntable that reverts the fixed rotation speed back to ±0%.
Audio/Power cables

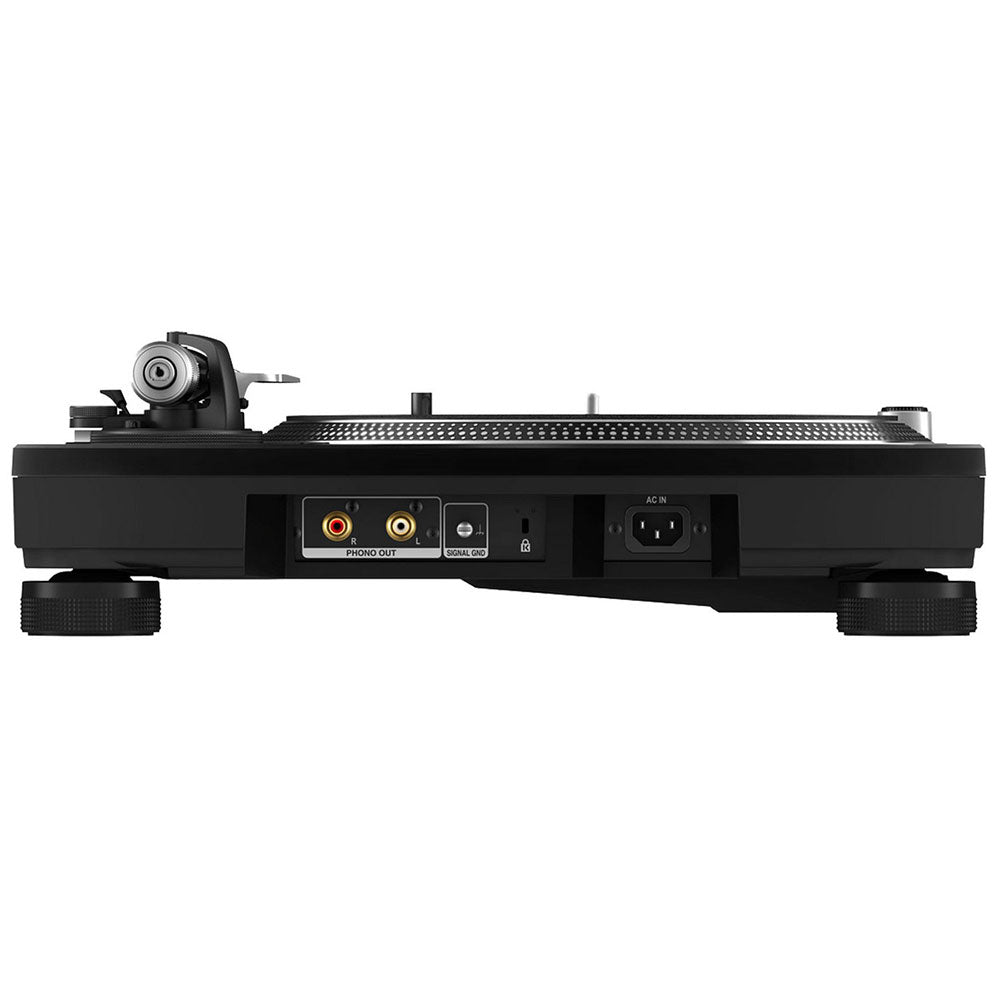

Both the audio and power cables on the PLX-1000 are detachable, which assists greatly when transporting the unit. It helps to reduce the risk of cable damage which in turn could affect the quality of the both the sound and performance of the turntable. This also grants the user the flexibility on what they wish to connect to the system to suit their own personal preference.
Other features
KEY FEATURES OF THE PLX-1000:
Turntable:
| Drive method | Quartz lock servo type direct drive |
| Motor | 3-phase brushless DC motor |
|---|---|
| Braking system | Electronic brake |
| Rotation speed | 33⅓ rpm, 45 rpm |
| Rotation speed adjustment range | ±8%, ±16%, ±50% |
| Wow and flutter | 0.1% or less WRMS (JIS WTD) |
| S/N ratio | 70 dB (DIN-B) |
| Turntable | Aluminium die-casting diameter: 332 mm |
| Starting torque | 4.5kg·cm or more |
| Start time | 0.3 seconds (at 33⅓ rpm) |
Tone arm:
| Arm type | Universal type S-shape tone arm, gimbal-supported type bearing structure, static balance type |
| Effective length | 230 mm |
|---|---|
| Overhang | 15 mm |
| Tracking error | Within 3 degrees |
| Arm height adjustment range. | 6 mm |
| Stylus pressure variable range | 0 g to 4.0 g (1 scale 0.1 g) |
| Proper cartridge weight | 3.5 g to 13 g (single cartridge) - When shell weight is used: 3.5 g to 6.5 g - When only balance weight is used: 6.0 g to 10 g - When sub weight is used: 9.5 g to 13 g |
Main unit:
| Main unit weight | 13.1 kg |
| Maximum dimensions (W x D x H) |
453 x 353 x 159 mm |
|---|---|
| Output | RCA × 1 |
| Included accessories | Turntable, turntable sheet, slip mat, slip sheet, dust cover, balance weight, head shell, sub weight, head shell, shell weight, adapter for EP record, power cord, Audio cable, ground wire, operating instructions |
