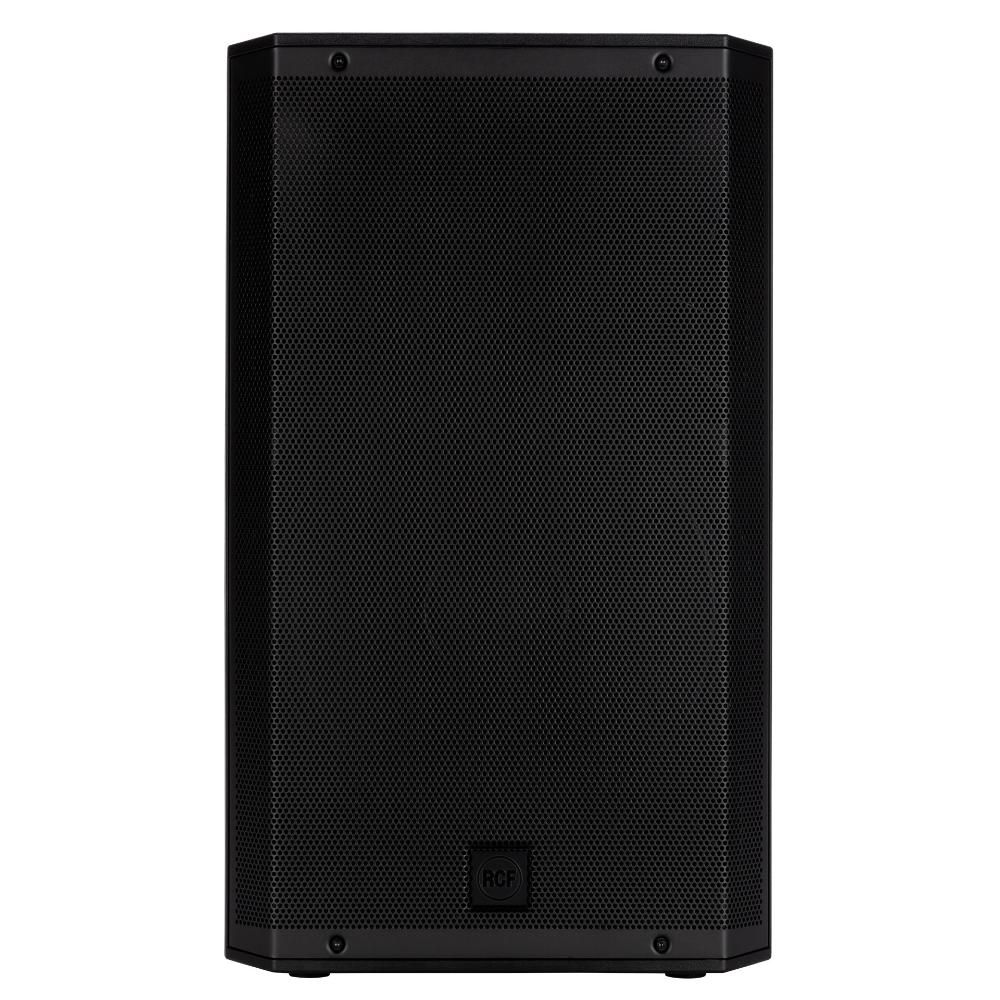

• RCF 915-AX Active Speaker

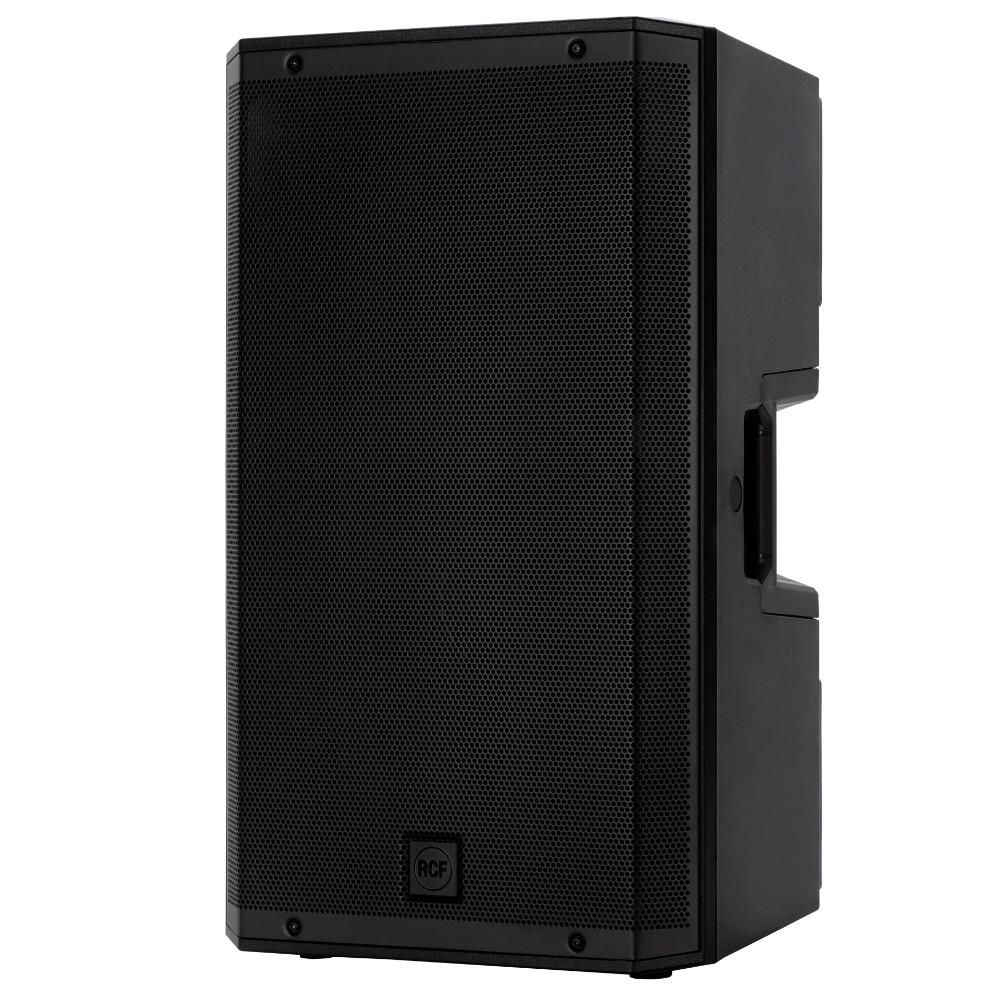

  • RCF 915-AX Active Speaker Left

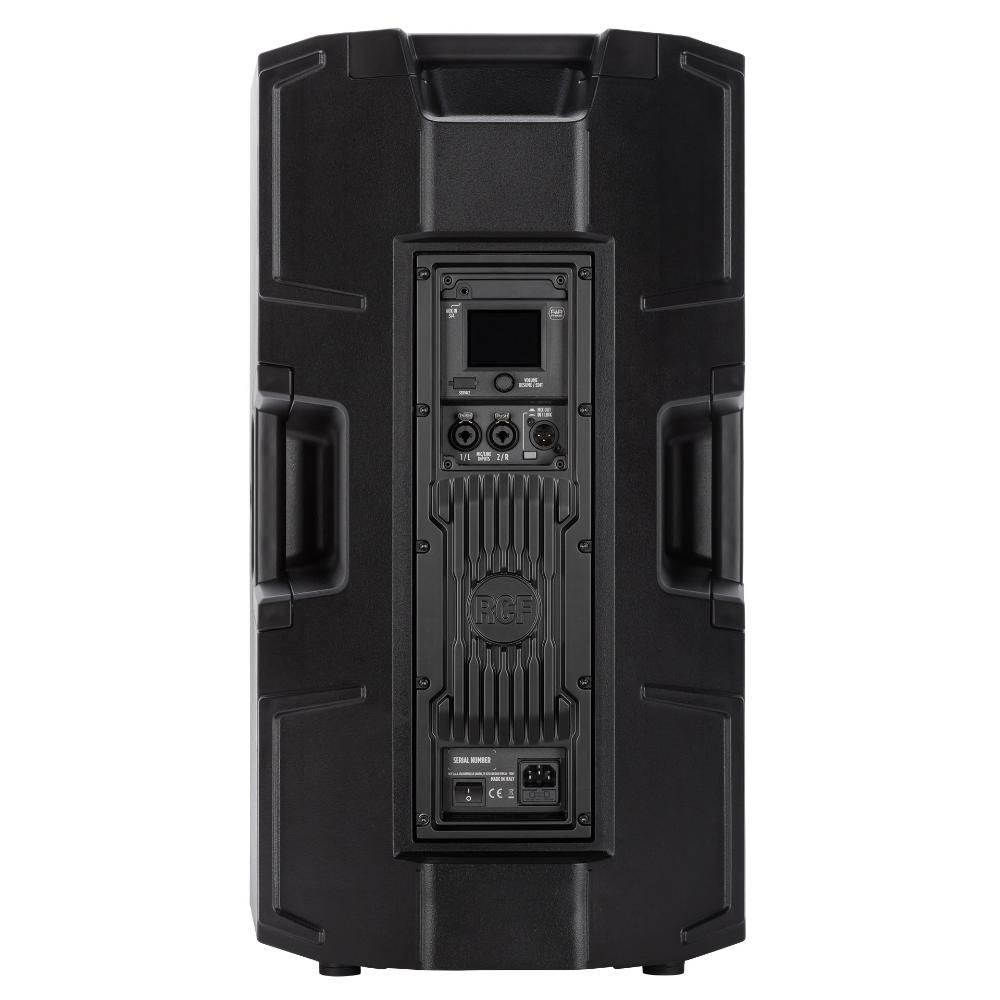

  • RCF 915-AX Active Speaker Rear

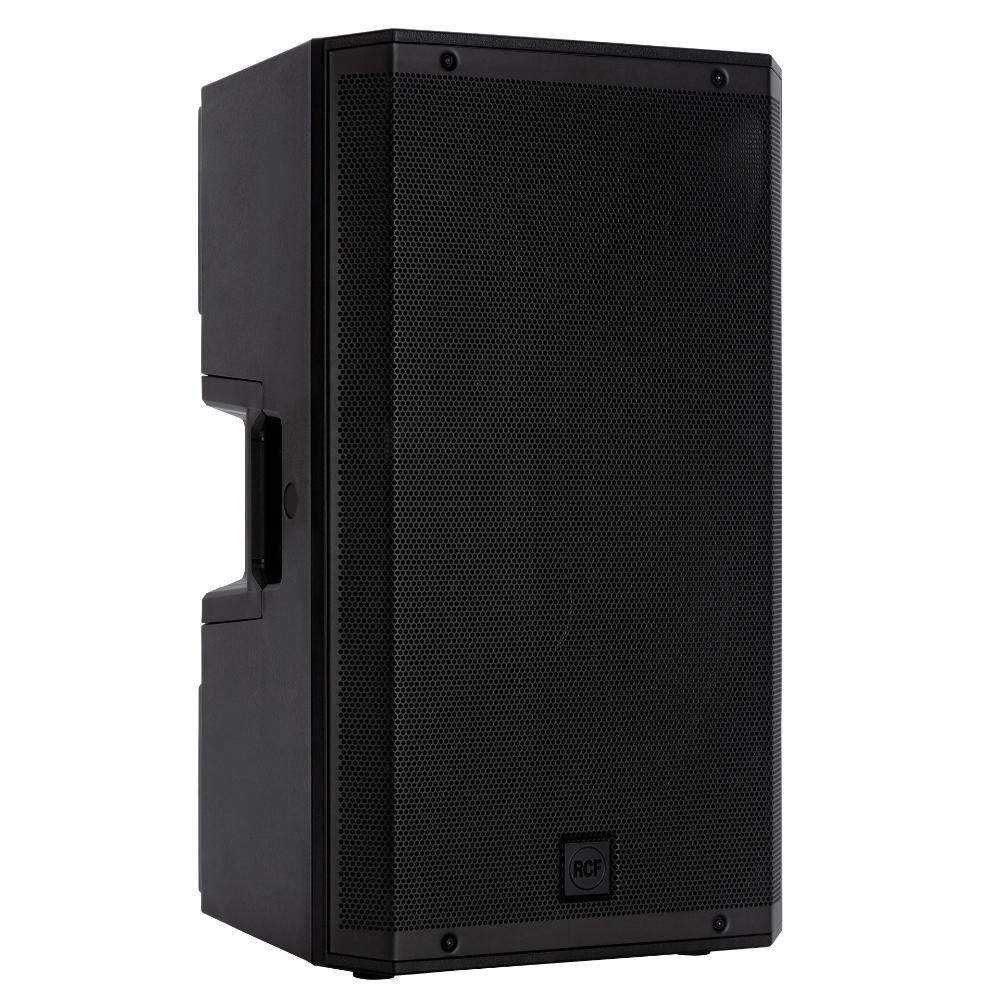

  • RCF 915-AX Active Speaker Right

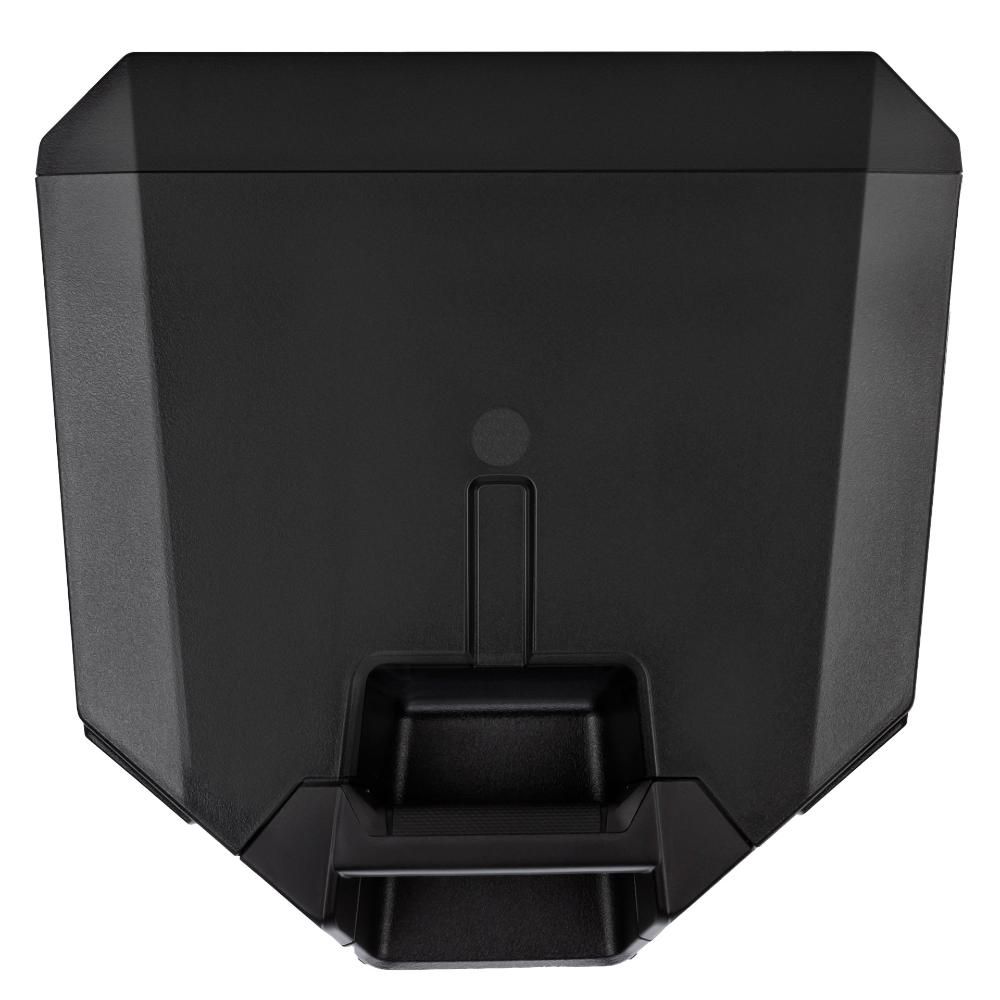

  • RCF 915-AX Active Speaker Top

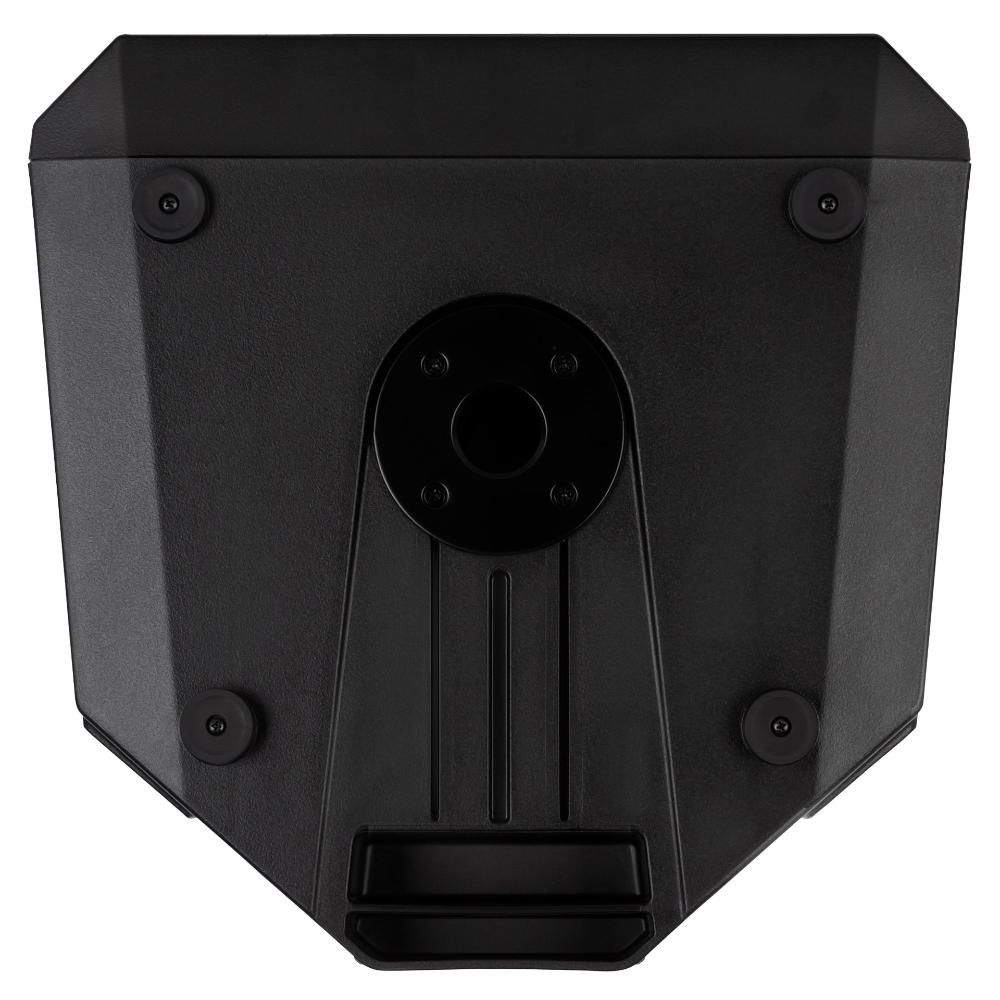

  • RCF 915-AX Active Speaker Bottom
1 6

RCF ART 915-AX Professional Active Bluetooth Speaker

RCF ART 915-AX Professional Active Bluetooth Speaker

£989.00
£989.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

Rcf

View full details

The RCF ART 915-AX is a top-notch solution for any audio application, featuring 48V microphone preamps and line inputs, an internal 6-channel digital mixer with advanced DSP, Bluetooth® stereo audio input, with dual speaker pairing option. The combination of a 1.75" compression driver, 15" woofer, and twochannel 2100W amplifier, produces 100° x 60° constant directivity coverage for the listening area with up to 131 dB SPL, distortion-free sound. The sleek cabinet uses a special polypropylene composite material with an Mbrace internal reinforcement, making it easy to carry and secure to install on a pole, flown-, wall-, or truss-mounted using the multiple rigging points available.

  • Built-in 6-channel Digital Mixer
  • Advanced User Interface w/ touch panel and remote control
  • 1.75" Compression Driver and 15" Woofer
  • Up to 131 dB Sound Pressure Level
  • 2100W Class-D Bi-Amplification
  • Dual combo preamp with 48V Power and Mini-jack stereo line input
  • Bluetooth® stereo audio input, with dual speaker pairing option
  • True Resistive Waveguide, FiRPHASE, and Bass Motion Control

Acoustical specifications

  • Frequency Response: 45 Hz ÷ 20000 Hz
  • Max SPL @ 1m: 131 dB
  • Horizontal coverage angle: 100°
  • Vertical coverage angle: 60°


Transducers

  • Compression Driver: 1 x 1.0'', 1.75'' v.c
  • Woofer: 15'', 2.5'' v.c


Input/Output section

  • Input signal: bal/unbal
  • Input connectors: Combo XLR/Jack
  • Output connectors: XLR


Processor section

  • Crossover Frequencies: 1600Hz
  • Protections: Thermal, RMS
  • Limiter: Soft Limiter
  • Controls: Colour touch panel, data entry/volume encoder, dedicated App for iOS and Android.


Power section

  • Total Power: 2100 W Peak, 1050 W RMS
  • High frequencies: 700 W Peak, 350 W RMS
  • Low frequencies: 1400 W Peak, 700 W RMS
  • Cooling: Convection
  • Connections: VDE


Electronic specifications

  • Frequency Response: 20 Hz ÷ 20 Hz
  • THD+N, 20dB gain, 0dBu out: 0.005% A-Weighted


Processing

  • Processing Channels: 6
  • Signal Processing: 24 Bit
  • A/D-D/A conversion: 32 Bit @ 48.0 kHz
  • Dynamic Range: 110


Inputs

  • Mic: 2
  • Remote Controlled Storable Gain: Yes
  • Gain Range: 0 dB ÷ 42 dB
  • Input Noise Level: -114 dBu A-Weighted
  • Mic Inputs Impedance: 6 kohm
  • Low Cut: 20 Hz ÷ 400 Hz
  • Phantom Power +48V: Yes
  • Mono Line: 2
  • Gain Selection: 0 dB ÷ 22 dB
  • Line Input Impedance: 21 kohm
  • A/D Dynamic range: 114 dB
  • Stereo Line: 1
  • Gain Selection: 0 dB ÷ 10 dB
  • Stereo Line Input Impedence: 13 kohm


Outputs

  • Main MIX: 1


Outputs specifications

  • Main Out Impedance: 150 ohm
  • Main Out Level: 22 dBu
  • D/A Dynamic Range: 114 dB


Compressors

  • RCF Compressors: Compressors on MIC/LINE CH1 & CH2 inputs.


EQ

  • Input Channels EQ: 2 Shelving 1
  • Description: 3 Band EQ: High and Low band shelving, MID band peak on IN 5 Band EQ: 4 Full Parametric, 1 High Shelving and HPF 24 dB/Oct on Amplifier and MAIN output.


Internal Effects

  • Send Effects: 1


Mastering processors

  • Main OUT type: MIX OUT, CROSSOVER OUT with RCF SUBWOOFERS presets, STEREO OUTPUT, CH1 LINK OUT.


Standard compliance

  • Safety agency: CE compliant


Physical specifications

  • Cabinet/Case Material: PP Composite
  • Hardware: 1 x M10 top, 1 x M10 each side
  • Handles: 1 top, 1 each side
  • Pole mount/Cap: Yes
  • Grille: Steel
  • Colour: Black


Size

  • Height: 717 mm / 28.23 inches
  • Width: 415 mm / 16.34 inches
  • Depth: 410 mm / 16.14 inches
  • Weight: 21.8 kg / 48.06 lbs
