RCF EVOX 12 Two-Way Active Array Speaker System

RCF EVOX 12 Two-Way Active Array Speaker System

Regular price £2,032.00
Regular price Sale price £2,032.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.

Rcf

View full details

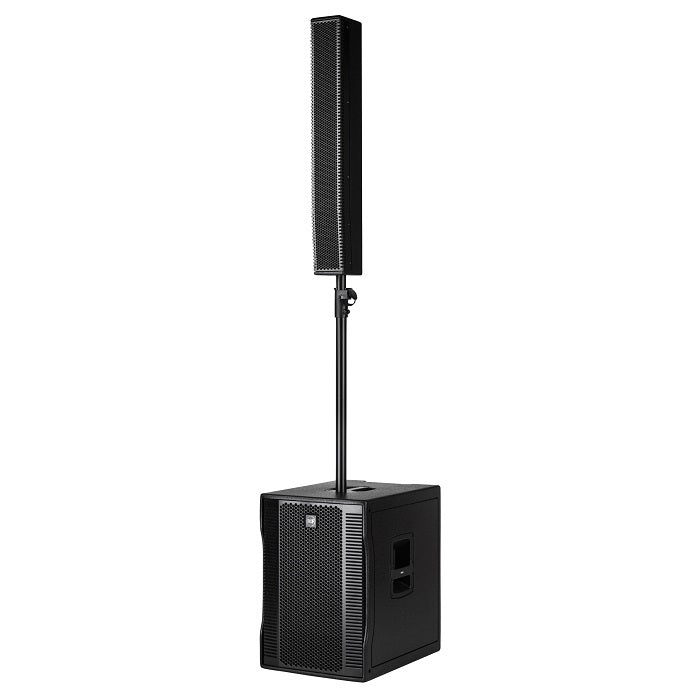

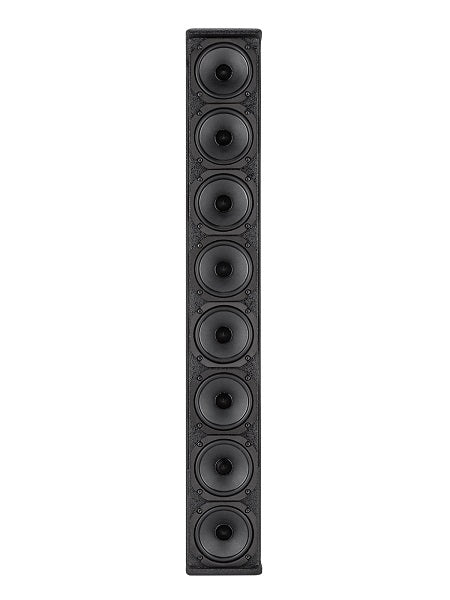

The RCF EVOX 12 is a highly-portable compact speaker system that features high-quality transducers alongside long-term reliability and a huge amount of amplification output. It consists of eight 4-inch transducers for the satellite speaker and one 15-inch subwoofer and is an ideal PA system for DJs and live bands as well as speeches and conferences thanks to the speaker’s natural clarity and dynamic audio reproduction.

RCF EVOX 12

The EVOX 12 is amplified via a digital, 1400w two-way Class-D amplifier which powers the frequency dependent drivers that control distortion levels and offers an unbeatable output with pristine sonic capabilities.

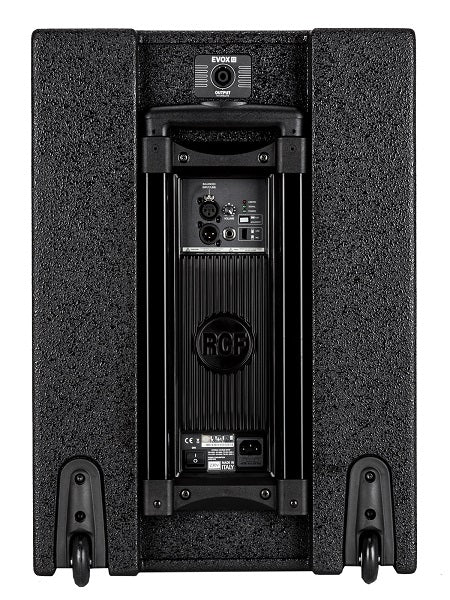

This system features an incredible Digital Signal Processor that precisely manages the crossover frequency of each speaker and also protects itself from signal overloading. On the rear of the subwoofer, you can find controls for EQ and volume so you can get just the sound you want as well as stereo XLR inputs and a Speakon and XLR output which allows you to daisy chain systems together if you wish.

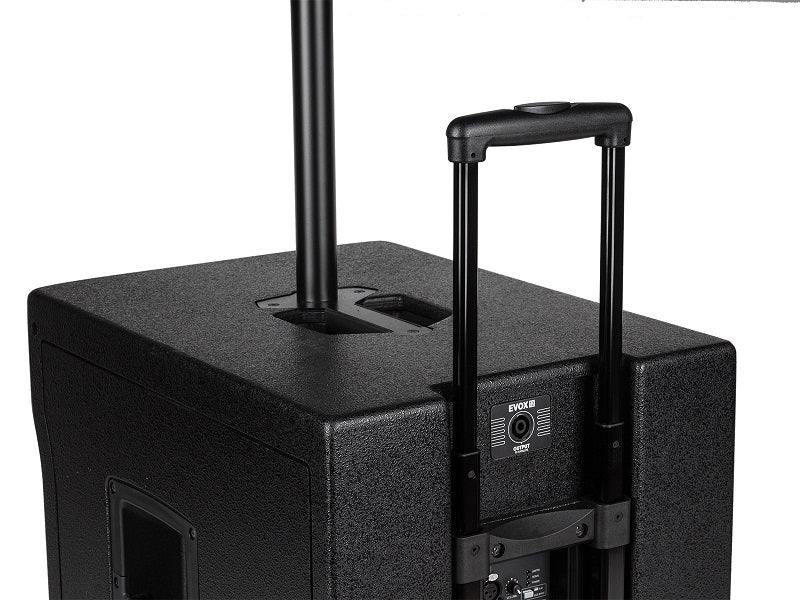

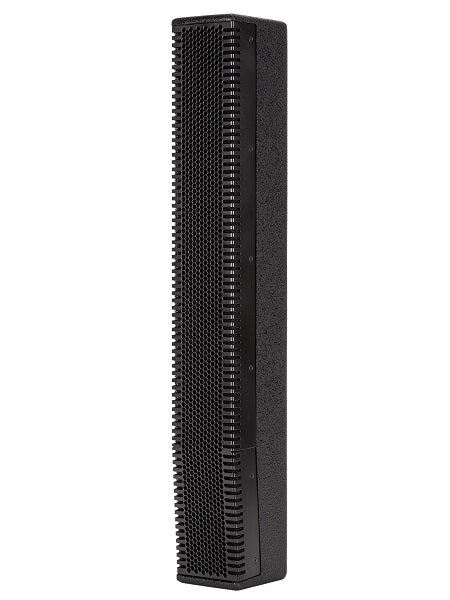

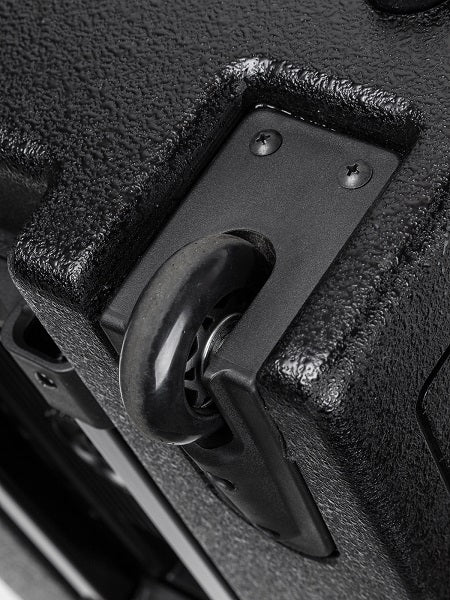

With a smart design, the EVOX 12 system can quickly be assembled or transported thanks to a telescopic handle and wheels which are integrated into the subwoofer. The birch plywood housing is covered in a textured, heavy-duty epoxy while a perforated hex grille protects both speakers.

RCF EVOX 12 Key Features:

  • 1400 Watt
  • 130 dB max SPL
  • 40 Hz 20 kHz frequency response
  • 15" Woofer
  • 8 x 4" neodymium full-range woofer
  • 90° x 30° slightly tilted pattern control
  • Innovative DSP processing
  • Pole mountable, easy set-up and transportation


Applications:

  • DJs
  • Corporate events
  • Presentations
  • Performers

RCF EVOX 12 Technical Specifications:

  • Frequency Response: 40 Hz ÷ 20 Hz
  • Max SPL: 130 dB
  • Horizontal coverage angle: 90°
  • Vertical coverage angle: 30°
  • Fullrange: 8x4.0", 1.0"v.c.
  • Woofer: 15", 3.0" v.c.


In/Outputs:

  • Input connectors: Jack-XLR male
  • Output connectors: XLR female
  • Input sensitivity: -2 dBu / + 4 dBu


Processor Section:

  • Crossover frequencies: 180 Hz
  • Protections: thermal, rms
  • Limiter: Soft limiter
  • Controls: Volume, EQ


Amplifier Specifications:

  • Total power: 1400 W PEAK
  • High frequencies: 400 W PEAK
  • Low frequencies: 1000 W PEAK
  • Total power: 700 W RMS
  • High frequencies: 200 W RMS
  • Low frequencies: 500 W RMS
  • Cooling: Convection
  • Connections: VDE connector


Cabinet:

  • Cabinet Material: Baltic birch plywood Handles: 2 side, 1 top
  • Pole Mount/Cap: Yes
  • Colour:Black


Dimensions:

  • Height: 2220mm
  • Width: 410mm
  • Depth: 560mm
  • Net Weight: 36.4kg
