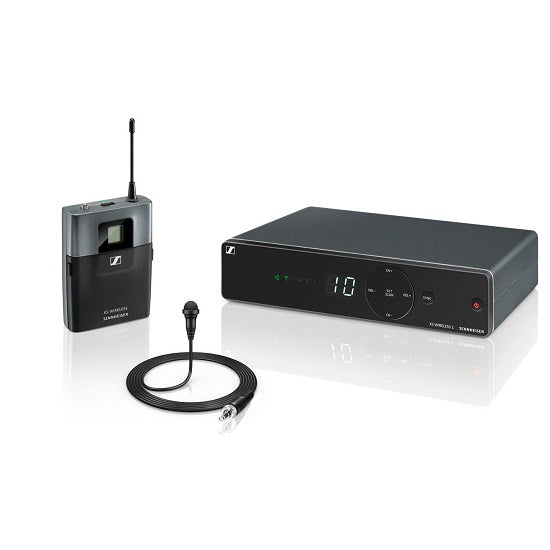

Sennheiser XSW1-ME2 Wireless Microphone Set

The Sennheiser XSW1-ME2 is a UHF wireless microphone system that uses a small clip-on lapel microphone for general purpose speech. The plug and play compatibility means the professional live sound system can be setup super quickly with not much effort at all.

The XS Wireless 1 – ME2 features automatic frequency management with up to 10 available channels to be operated at any one time and is most ideal for presenters and moderators, perfect for a compelling presentation.

The XS Wireless 1 provides you with the acclaimed quality that Sennheiser are world-known for and the ME2 clip-on lapel microphone proves this. The lapel microphone is made from high-quality components that work together to give you a powerful yet natural sound. Feedback protection is in place, so you do not need to worry about any nasty feedback disturbing your performance.

The XS Wireless 1 – ME2 has been built to last, the microphone and transmitter are both sweat-resistant and have been designed to withstand the stresses of everyday on-stage use.

• Compact bodypack transmitter, unobstrusive clip-on microphone
• Antenna-switching diversity reception
• Integrated antennas
• Automatic frequency management and synchronization via remote channel for easy setup
• Selectable UHF frequencies within a large bandwidth
• Up to 10 compatible channels

In The Box

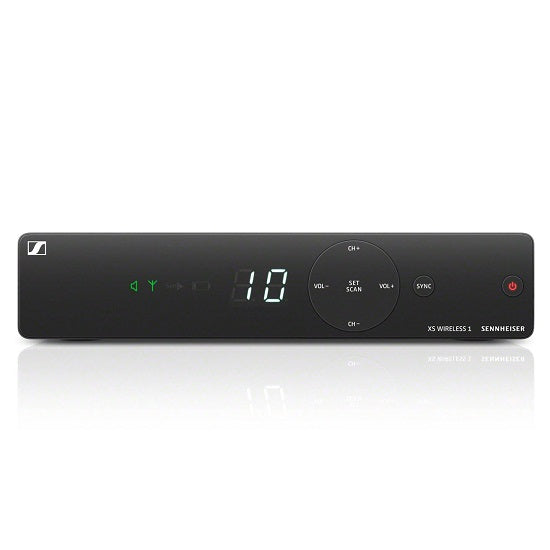

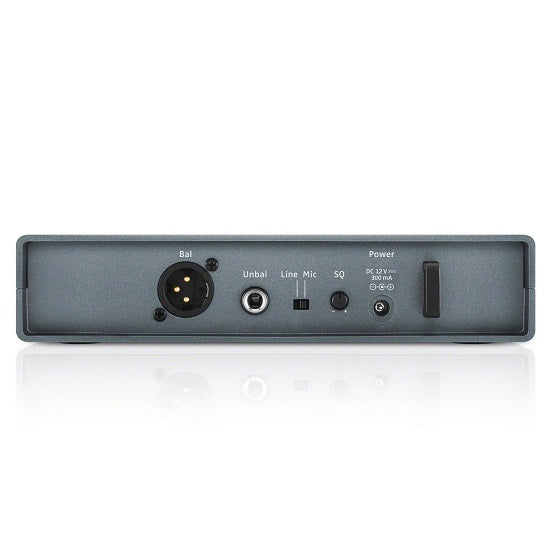

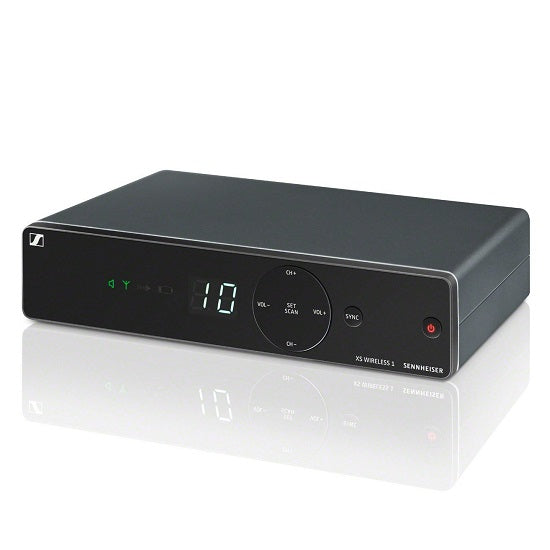

• 1 receiver EM-XSW 1
• 1 lavalier microphone ME 2-2

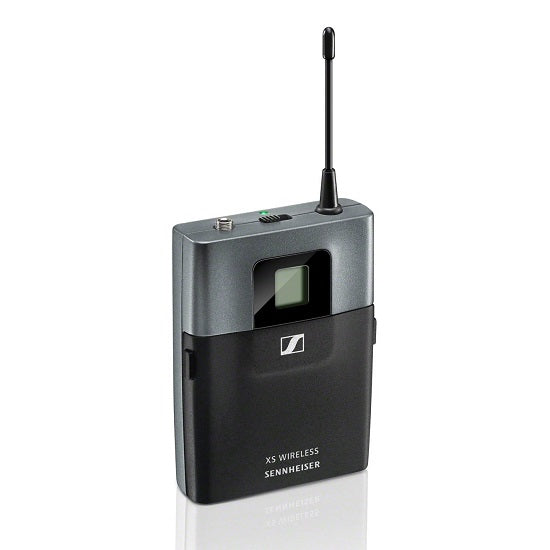

• 1 bodypack transmitter SK-XSW
• 1 power supply NT 12-5 CW
• 2 AA batteries

• Microphone: condenser
• THD total harmonic distortion: ≤ 0.9%
• Pick-up pattern: omni-directional
• Signal-to-noise ratio: ≥ 103 dBA
• RF output power: 10 mW
• Switching bandwidth: up to 24 MHz
• Operating time: approx. 10 hrs
• Modulation: wideband FM
• Output voltage: '1/4“ (6.3 mm) jack socket (unbalanced): +6 dBu, XLR socket (balanced): +12 dBu
• Housing: rugged ABS housing
• Diversity reception: antenna switching diversity via internal antennas
• Frequency: 8 frequency banks, each with up to 10 factory-preset channels
• Frequency range
• A: 548-572 MHz, GB: 606-630 MHz
• B: 614-638 MHz, C: 766-790 MHz
• D: 794-806 MHz
• E: 821-832 MHz, 863-865 MHz
• K: 925-937.5 MHz
• SPL for peak deviation: 130 dB
• Squelch: adjustable from 3 dBμV to 28 dBμV (combined with pilot tone)
• Synchronization: 2.4 GHz, Low Power OQPSK (only active during synchronization)
• Input sensitivity: 1.5 mV / Pa
• Audio adjustment range: 45 dB, adjustable in 5-dB steps
• Line/Mic level: 20 dB, switchable
• Temperature Range Operation: 0°C to +40°C, storage: –20°C to +70°C
• Receiver Principle: double superheterodyne
• Sensitivity: < 3 μV at 52 dB(A)rms S/N
• Receivers
• Dimensions: approx. 200 x 42 x 127 mm
• Weight: approx. 340g
• Power supply: 12 V DC nom./300 mA
• AF frequency response: 50 to 16,000 Hz (–3 dB)
• Transmitter
• Dimensions: approx. 71 x 96 x 28 mm
• Weight: approx. 95g
• Power supply: 2 AA size batteries, 1.5 V
• Adjustment Range Transmitter: 0 to -30 dB, adjustable in 10 dB steps
