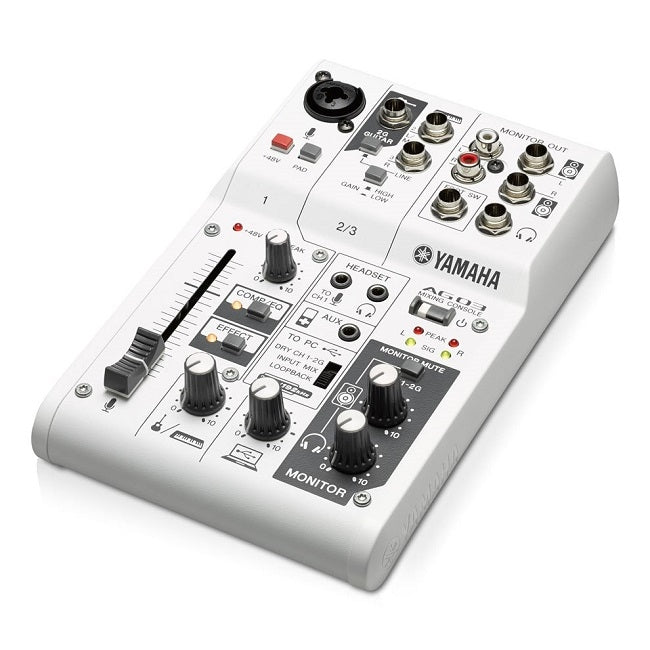

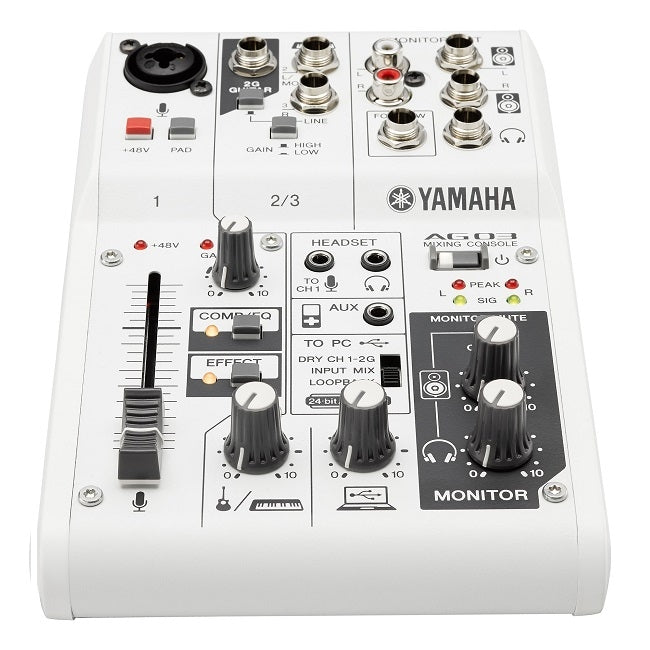

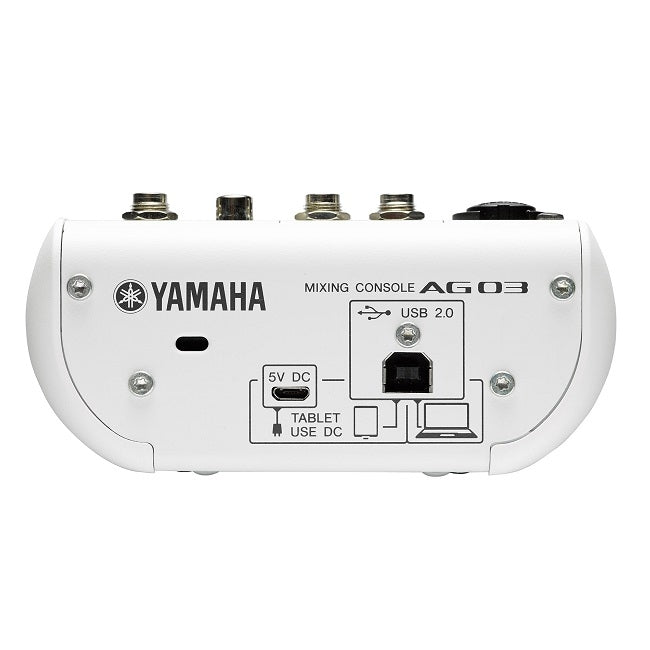

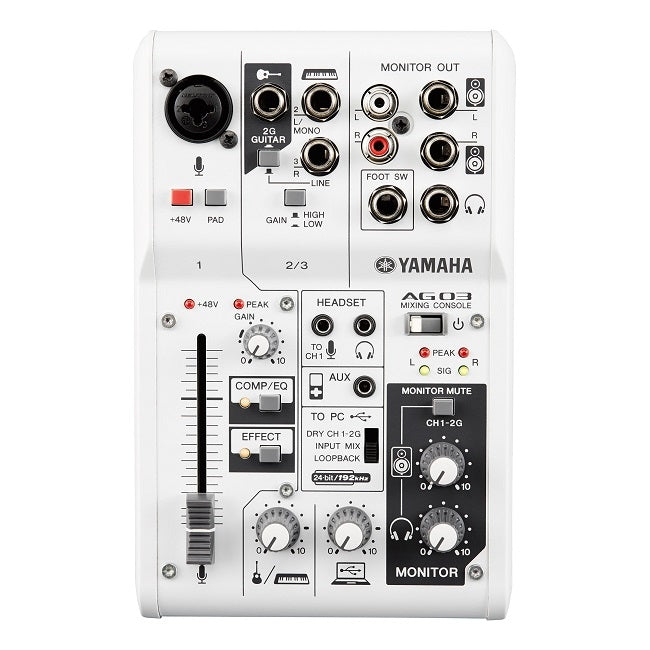

Yamaha AG03 3-Channel Mixing Console

Yamaha AG03 3-Channel Mixing Console

Regular price £136.00
Regular price Sale price £136.00
Sale Sold out
Tax included. Shipping calculated at checkout.
Check your eligibility

Fast check - won't affect your credit rating.


View full details

The Yamaha AG03 is a compact 3-channel mixing console that comes with a plethora of professional features including high-resolution 24-bit/192Khz 2-track audio recording and playback, +48v phantom power, and ‘D-pre’ studio-quality microphone pre-amps with high-gain and low-noise. This compact mixing console is ideal for recording vocals and instruments into your DAW and is perfect for podcasters and webcasters allowing you to turn your PC, Mac, and even iPad into a virtual radio station.

Yamaha AG03 Mixing Console

The AG03 comes with a surprisingly easy setup process and lets you produce content with high-quality audio for real-time broadcasts over streaming platforms. This mixing desk works by helping to boost your production value considerably and allows you to add background music and sound effects to your podcasts with ease and lets you achieve a level of sound quality that can’t be matched with conventional computer/headset configurations. The Loopback function works by allowing you broadcast all microphones, instruments, and other audio sources as well as background music from your PC, Mac, or iPad.

The console is fitted with ‘D-pre’ studio-quality microphone pre-amps that have been developed by Yamaha for high-end recording consoles and helps you capture the most detailed nuances of your vocals or instrument performances. There is a combo XLR/¼-inch TRS input with +48v phantom power for powering DI boxes and condenser microphones alongside a headset input which gives you the option to use a professional condenser microphone or conventional computer headset. The AG03 features two volume knobs and a 60mm volume fader on the front panel for simple control of your audio content and sound effects while a 1-touch digital signal processor enables you to add clarity and focus to your sound with compression and EQ and, just like an authentic radio broadcast you can add reverb using the 1-touch effect.

The AG03 is supplied with Cubasis LE; a streamlined multi-touch sequencer made especially for iPad which gives you the same look and feel if it’s bigger brother, Cubasis. Cubasis LE is specially designed for quick and easy operation making recording, editing, and mixing an easy process and places touch-intuitive production tools in your hands giving you a whole new world of creative options. The console is also supplied with Cubase AI, a digital audio workstation that is equipped with powerful music production tools so you can make high-quality recordings straight out of the box. A robust metal chassis makes this mixing desk extremely portable and is designed to withstand the rigors of everyday use and can be used almost anywhere so you can record to your hearts contempt.

Yamaha AG03 Mixing Console Key Features:

  • High-resolution (24-bit/192kHz) 2-track audio recording and playback
  • 'D-pre' studio quality microphone pre-amps with high-gain and low-noise
  • Easy control and professional sound with 1-touch compression/EQ and effect processing
  • +48v Phantom power on channel 1 input for condenser mics and DI boxes
  • Hi-Z input for guitars on channel 2
  • iPad (2 orlater) connectivity via Apple iPad camera connection kit (requires external USB power supply)
  • USB bus powered for Mac and PC
  • Rugged metal chassis
  • Includes Cubase LE, downloadable version

Yamaha AG03 Mixing Console Technical Specifications:

  • Phantom power: 48v
  • Input channels: 1 auxiliary, 1 mono, 1 stereo
  • Output channels: 2 monitor, 2 phones
  • Bus channels: 1 stereo
  • 26dB Pad attenuation
  • Peak LED turns on when signal reaches 3dB below clipping level
  • Digital signal processor with compression/EQ and SPX reverb effect
  • Level meter USB output level; 2 x 2 point LED meter
  • USB audio: 2 in/2 out, USB audio class 2.0 compliant
  • Sampling frequency: Maximum 192kHz
  • Bit depth: 24-bit
  • Power requirements: DC 5v, 500mA
  • Power consumption: Maximum 2.5w
  • System requirements: Windows 7 or later/Mac OS X 10.7 or later
  • Dimensions (WxHxD mm): 129 x 63 x 202
  • Weight: 0.8Kg
  • Options: Foot switch
  • Operating temperature: 0 to + 40°C
